1996 Yamaha RT180 Front Brake Caliper OEM Parts Diagram

Submodel RT180H - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT BRAKE CALIPER

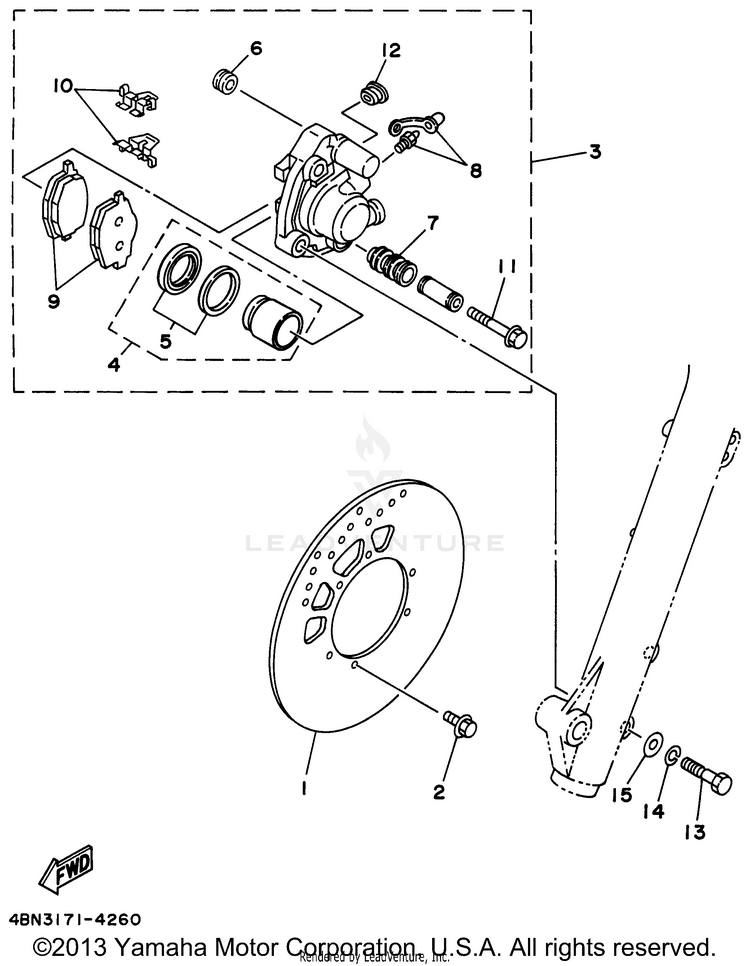

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-2582T-00-00

(replaces part #
4JG-2582T-00-00)

DISC, BRAKE (LEFT)$100.99$78.774 In-Stock
290109-06757-00

(replaces part #
90109-06823-09)

BOLT$1.40$1.26Not Shipping
31RH-2580T-01-00CALIPER ASSEMBLY$269.99$210.59Not Shipping
434X-W0057-00-00PISTON ASSY, CALIPER$139.99$109.19Usually ships in 7-10 business days
555W-W0047-00-00CALIPER SEAL KIT$68.99$53.81Usually ships in 7-10 business days
65R2-25937-00-00BOOT 2$41.99$32.752 In-Stock
734X-25937-00-00BOOT 2$34.99$28.69Usually ships in 7-10 business days
815B-W0048-00-00

(replaces part #
51L-W0048-00-00)

BLEED SCREW KIT$21.99$17.157 In-Stock
934X-W0046-02-00BRAKE PAD KIT$50.99$39.77Usually ships in 7-10 business days
1034X-25919-00-00SUPPORT, PAD$62.99$49.13Usually ships in 7-10 business days
115KN-25926-01-00

(replaces part #
2GV-25926-00-00)

BOLT$9.49$8.545 In-Stock
1234X-25845-00-00CAP, INDICATOR$17.99$14.031 In-Stock
1390105-10634-00

(replaces part #
90105-10W04-09)

BOLT, FLANGE$11.49$8.965 In-Stock
1492990-10100-00WASHER, SPRING$3.25$2.806 In-Stock
1592990-10200-00WASHER, PLAIN$3.80$3.2710+ In-Stock
