1996 Yamaha RT180 Steering Handle - Cable OEM Parts Diagram

Submodel RT180H - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE - CABLE

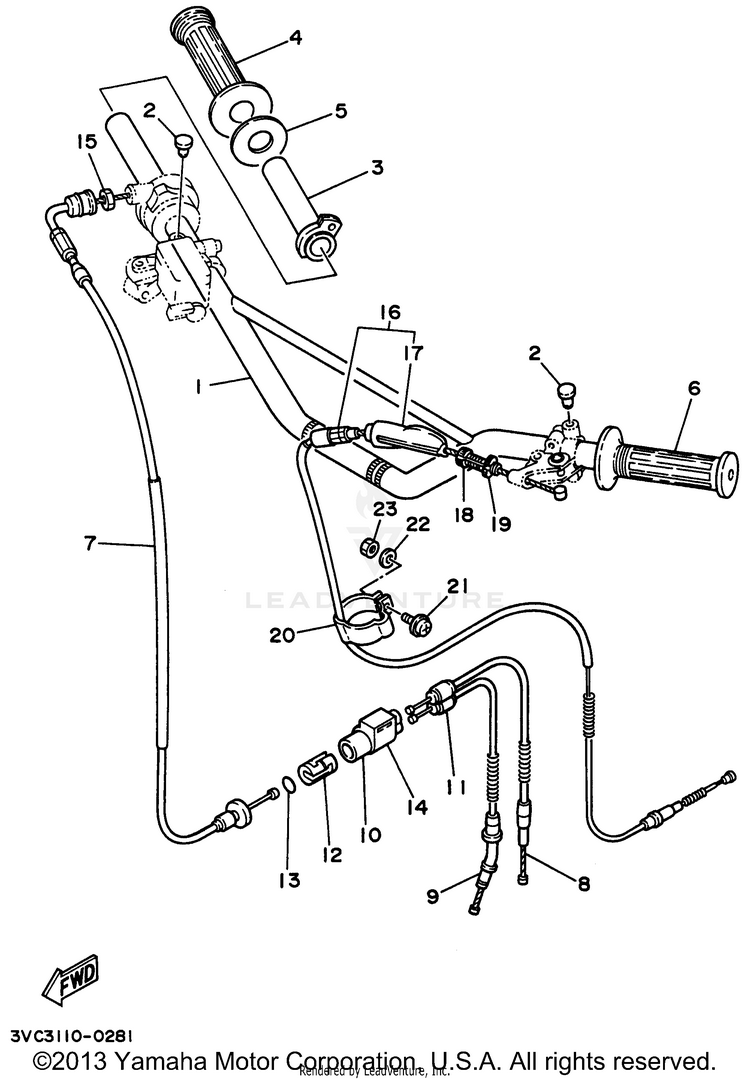

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13VC-F6111-00-00HANDLEBAR | COMPETITION SILVER (0T9)$90.99$70.97Not Shipping
290338-09012-00PLUG$10.49$8.186 In-Stock
3434-26243-00-00TUBE, THROTTLE GUIDE$54.99$42.8910+ In-Stock
41A0-26242-01-00GRIP RH (R.H.)$43.99$36.072 In-Stock
51M1-26249-01-00RING, LEAF$8.49$6.628 In-Stock
61E6-26241-00-00GRIP LH$37.99$29.633 In-Stock
75L9-F6311-01-00CABLE, THROTTLE 1$53.99$42.11Not Shipping
85L9-F6312-02-00CABLE, THROTTLE 2$22.99$18.85Not Shipping
95L9-F6321-03-00CABLE, PUMP$43.99$36.07Usually ships in 7-10 business days
105L9-F6261-00-00CONNECTOR, CABLE$3.70$3.33Not Shipping
115L9-F6272-00-00CAP$2.35$2.12Not Shipping
125L9-F6263-01-00PIECE, CONNECTING$1.15$1.04Not Shipping
1393210-10118-00O-RING$8.49$7.64Usually ships in 7-10 business days
145L9-F6339-00-00GUIDE, WIRE$4.50$4.05Not Shipping
1590170-10038-00NUT, HEXAGON$5.49$4.94Usually ships in 7-10 business days
165L9-F6335-01-00CABLE, CLUTCH$45.99$37.71Not Shipping
17498-26372-00-00COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1890123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
202A6-26397-00-00CLAMP$5.49$4.94Not Shipping
2197602-05218-09SCREW, PAN HEAD WITH WASHER$3.85$3.46Usually ships in 7-10 business days
2292990-05200-00WASHER, PLAIN$5.49$4.2810+ In-Stock
2395380-05600-00NUT$9.49$8.54Usually ships in 7-10 business days
