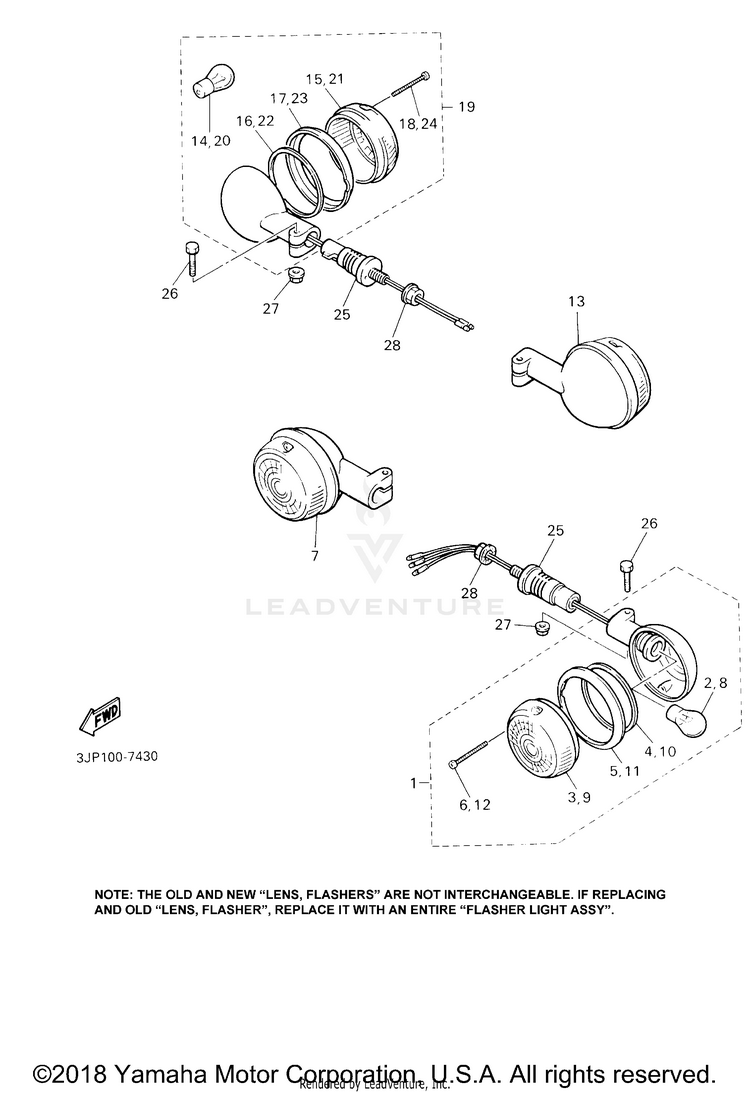

1996 Yamaha V-Max Flasher Light OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	42X-83310-K1-00	FRONT FLASHER LIGHT ASSY 1 \| LEFT	$62.99	$49.13	Usually ships in 7-10 business days
2	256-84714-61-00	BULB (12V-27/8W)	$12.99	$10.13	10+ In-Stock
3	42X-83312-10-00	LENS, FLASHER	$16.49	$13.52	Usually ships in 7-10 business days
4	1D6-83313-00-00	GASKET, FLASHER LENS	$7.49	$5.84	5 In-Stock
5	1D6-83363-00-00	LENS, RIM	$31.99	$29.23	2 In-Stock
6	90151-03003-00 (replaces part # 57M-83358-00-00)	SCREW, COUNTERSUNK	$6.99	$5.45	10+ In-Stock
7	42X-83320-K1-00	FRONT FLASHER LIGHT ASSY 2 \| RIGHT	$61.99	$48.35	Usually ships in 7-10 business days
8	256-84714-61-00	BULB (12V-27/8W)	$12.99	$10.13	10+ In-Stock
9	42X-83312-20-00	LENS, FLASHER	$16.49	$12.86	2 In-Stock
10	1D6-83313-00-00	GASKET, FLASHER LENS	$7.49	$5.84	5 In-Stock
11	1D6-83363-10-00	LENS, RIM	$31.99	$26.23	1 In-Stock
12	90151-03003-00 (replaces part # 57M-83358-00-00)	SCREW, COUNTERSUNK	$6.99	$5.45	10+ In-Stock
13	1AA-83330-K9-00 (replaces part # 1AA-83330-K1-00)	REAR FLASHER LIGHT ASSY 1 \| LEFT	$127.99	$99.83	Usually ships in 7-10 business days
14	256-83311-70-XX	BULB (12V-32CP)	$2.35	$2.02	Not Shipping
15	42X-83312-20-00	LENS, FLASHER	$16.49	$12.86	2 In-Stock
16	1D6-83313-00-00	GASKET, FLASHER LENS	$7.49	$5.84	5 In-Stock
17	1D6-83363-10-00	LENS, RIM	$31.99	$26.23	1 In-Stock
18	90151-03003-00 (replaces part # 57M-83358-00-00)	SCREW, COUNTERSUNK	$6.99	$5.45	10+ In-Stock
19	1AA-83340-K9-00 (replaces part # 1AA-83340-K1-00)	REAR FLASHER LIGHT ASSY 2 \| RIGHT	$120.99	$94.37	Usually ships in 7-10 business days
20	256-83311-70-XX	BULB (12V-32CP)	$2.35	$2.02	Not Shipping
21	42X-83312-10-00	LENS, FLASHER	$16.49	$13.52	Usually ships in 7-10 business days
22	1D6-83313-00-00	GASKET, FLASHER LENS	$7.49	$5.84	5 In-Stock
23	1D6-83363-00-00	LENS, RIM	$31.99	$29.23	2 In-Stock
24	57M-83333-70-00	SCREW, SPECIAL	$0.00	$0.00	Not Shipping
25	1AA-83318-00-00	STAY, FLASHER 1	$49.99	$38.99	6 In-Stock
26	97013-06030-00 (replaces part # 97003-06030-00)	BOLT	$2.45	$2.20	Usually ships in 7-10 business days
27	95780-06500-00 (replaces part # 95701-06500-00)	NUT, FLANGE	$2.95	$2.54	10+ In-Stock
28	90179-12588-00 (replaces part # 95701-12500-00)	NUT, FLANGE	$8.49	$6.62	10+ In-Stock
