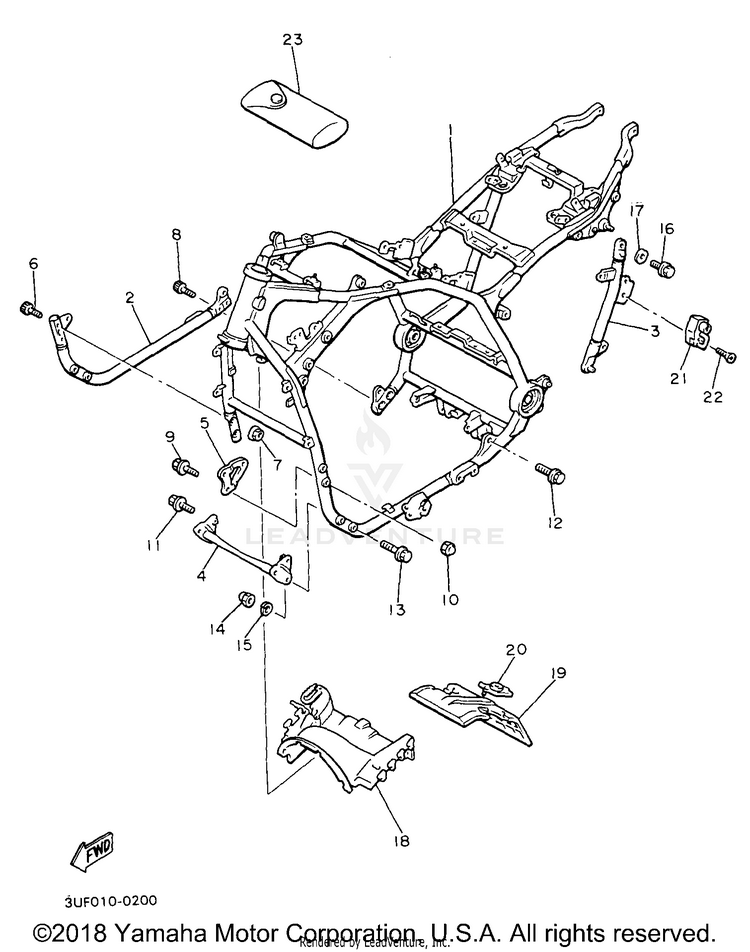

1996 Yamaha V-Max Frame OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1FK-21110-00-33	FRAME COMP. \| YAMAHA BLACK (033)	$2,308.99	$1,968.68	Usually ships in 7-10 business days
2	1FK-21140-00-33	DOWN TUBE COMP. \| YAMAHA BLACK (033)	$336.99	$262.85	Usually ships in 7-10 business days
3	3UF-21105-00-33	BACK STAY SUB COMP. 1 \| YAMAHA BLACK (033)	$307.99	$240.23	Usually ships in 7-10 business days
4	1FK-2141V-10-00	CROSS BAR COMPLETE	$84.99	$66.29	Usually ships in 7-10 business days
5	1FK-21315-00-00	STAY, ENGINE 2	$19.99	$16.39	Usually ships in 7-10 business days
6	91317-10030-00 (replaces part # 90110-10126-00)	BOLT	$10.49	$8.60	Usually ships in 7-10 business days
7	90179-10658-00	NUT	$10.49	$8.18	10+ In-Stock
8	91317-10020-00 (replaces part # 90110-10092-00)	BOLT, HEX. SOCKET HEAD	$9.49	$8.54	Usually ships in 7-10 business days
9	90105-081A0-00	BOLT, FLANGE	$8.49	$7.64	Usually ships in 7-10 business days
10	90176-10033-00	NUT, CROWN	$10.49	$8.60	Usually ships in 7-10 business days
11	90105-10376-00	BOLT, FLANGE	$8.49	$7.64	Usually ships in 7-10 business days
12	90105-12252-00	BOLT, WASHER BASED	$12.49	$10.24	Usually ships in 7-10 business days
13	95817-08060-00 (replaces part # 95827-08060-00)	BOLT, FLANGE	$4.80	$4.13	4 In-Stock
14	90176-08040-00	NUT, CROWN	$4.85	$4.36	Usually ships in 7-10 business days
15	92907-08100-00	WASHER, SPRING	$9.49	$7.40	10+ In-Stock
16	90105-08066-00 (replaces part # 90105-08177-00)	BOLT, FLANGE	$10.49	$8.18	7 In-Stock
17	90201-08326-00	WASHER, PLATE	$9.49	$7.40	10+ In-Stock
18	1FK-2117F-01-00 (replaces part # 1FK-2117F-00-00)	COVER	$98.99	$77.21	Usually ships in 7-10 business days
19	1FK-2117M-00-00	COVER 2	$59.99	$46.79	Usually ships in 7-10 business days
20	1FK-2117N-01-00 (replaces part # 1FK-2117N-00-00)	COVER 3	$36.99	$30.33	Usually ships in 7-10 business days
21	26H-21308-01-00 (replaces part # 26H-21308-00-00)	HELMET HANGER ASSY	$89.99	$70.19	Usually ships in 7-10 business days
22	90149-06154-00	SCREW	$10.49	$8.60	Usually ships in 7-10 business days
23	26H-W2810-00-00 (replaces part # 1FK-28100-01-00)	TOOL KIT	$255.99	$199.67	Usually ships in 7-10 business days
