REAR BRAKE CALIPER

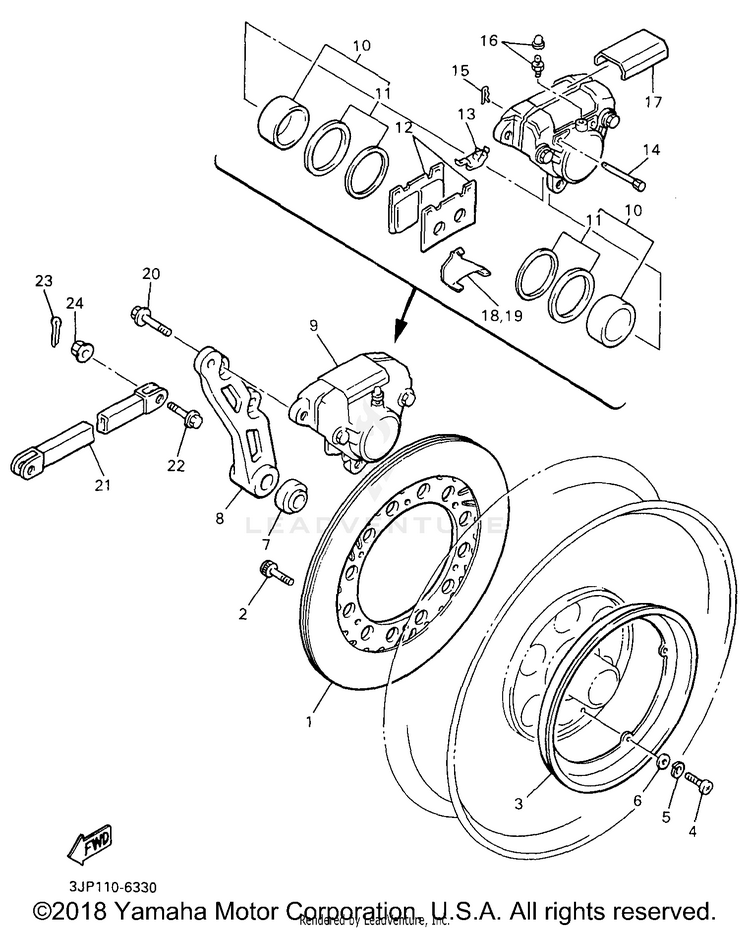

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JP-2582U-00-00DISK, BRAKE (RIGHT)$480.99$375.17Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
31FK-25327-00-00COVER, PLATE$26.99$22.13Usually ships in 7-10 business days
498507-05018-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
592907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
692907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
790387-200J2-00COLLAR$34.99$28.69Usually ships in 7-10 business days
81FK-25819-00-00BRACKET, CALIPER$147.99$115.43Usually ships in 7-10 business days
94BH-2580W-01-00

(replaces part #
4BH-2580W-00-00)

CALIPER ASSY, REAR 2$480.99$375.17Usually ships in 7-10 business days
1031A-W0057-00-00PISTON ASSY, CALIPER$153.99$120.11Usually ships in 7-10 business days
1131A-W0047-00-00CALIPER SEAL KIT$62.99$49.135 In-Stock
121FK-W0046-01-00BRAKE PAD KIT 2$60.99$47.574 In-Stock
1326H-25919-00-00SUPPORT, PAD$30.99$25.41Usually ships in 7-10 business days
143HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
153GM-25925-00-00CLIP$12.99$10.136 In-Stock
161J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
1741Y-25836-01-00

(replaces part #
41Y-25836-00-00)

COVER, DUST$17.99$14.75Usually ships in 7-10 business days
181FK-25827-01-00

(replaces part #
1FK-25827-00-00)

SHIM, CALIPER$17.99$14.75Usually ships in 7-10 business days
191FK-25828-01-00

(replaces part #
1FK-25828-00-00)

SHIM, CALIPER$16.49$13.52Usually ships in 7-10 business days
2090105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
2136Y-25371-00-00BAR, TENSION$36.99$30.33Usually ships in 7-10 business days
2290105-08777-00BOLT, FLANGE$2.15$1.94Usually ships in 7-10 business days
2391490-20025-00PIN, COTTER$1.99$1.7110+ In-Stock
2495704-08500-00NUT, FLANGE$9.49$7.4010+ In-Stock
