1996 Yamaha YZ250 Electrical 1 OEM Parts Diagram

Submodel YZ250H1 - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

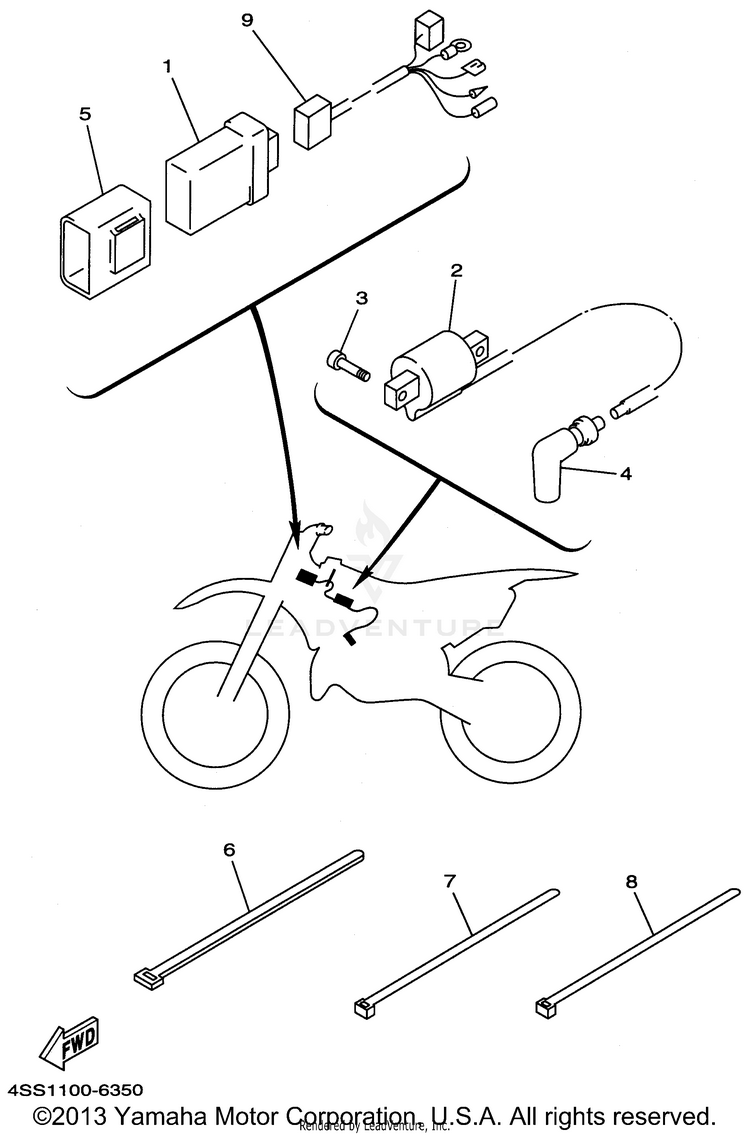

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14SR-85540-00-00C.D.I. UNIT ASSEMBLY$257.70$201.01Not Shipping
24MX-82310-02-00

(replaces part #
4SR-82310-00-00)

IGNITION COIL ASSY$84.99$66.296 In-Stock
391317-06016-00BOLT (4MY)-$1.4210+ In-Stock
48DG-82370-00-00

(replaces part #
4PE-82370-00-00)

PLUG CAP ASSY$53.99$42.1110+ In-Stock
54SS-85546-01-00

(replaces part #
4SS-85546-00-00)

BAND$22.99$18.85Not Shipping
625G-83936-01-00BAND, SWITCH CORD$5.49$4.283 In-Stock
71UA-82591-00-00

(replaces part #
90464-13080-00)

BAND$5.49$4.2810+ In-Stock
890464-15152-00

(replaces part #
90464-14117-00)

CLAMP$6.49$5.068 In-Stock
94SS-82509-00-00WIRE, SUB LEAD$84.99$66.29Usually ships in 7-10 business days
