1996 Yamaha YZ250 Front Brake Caliper OEM Parts Diagram

Submodel YZ250H1 - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

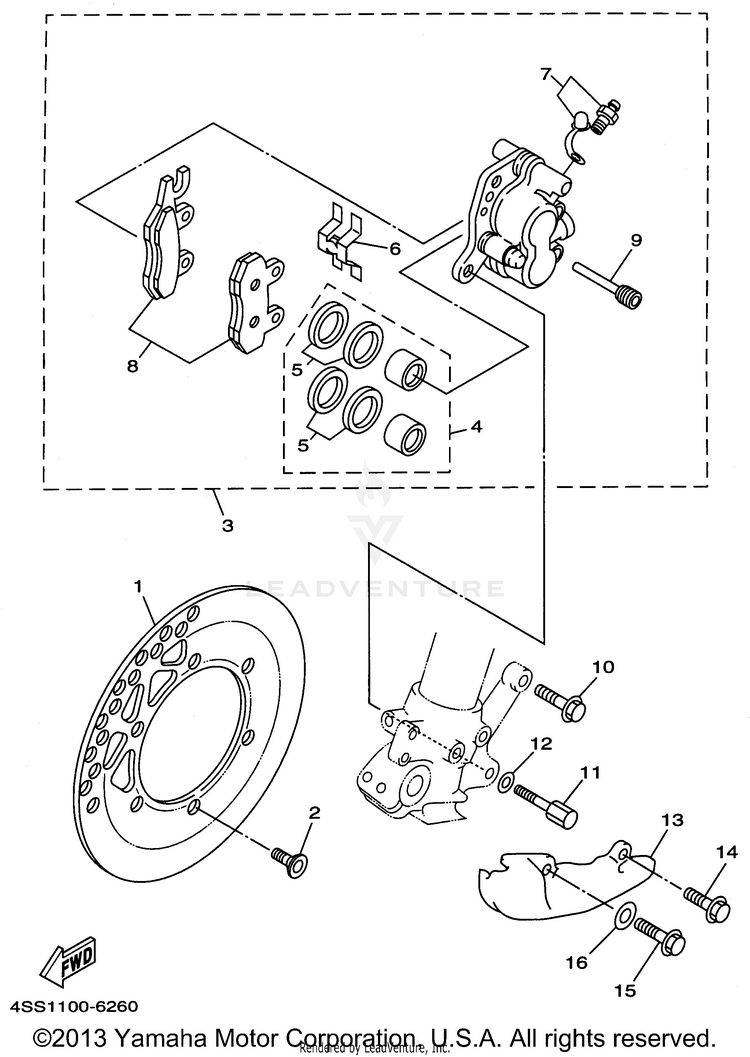

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XM-2582T-00-00

(replaces part #
4JX-2582T-00-00)

DISC, BRAKE$248.99$197.41Usually ships in 7-10 business days
290151-06080-00

(replaces part #
90149-06272-00)

SCREW, COUNTERSUNK$2.35$2.0210+ In-Stock
34SS-2580T-00-00CALIPER ASSEMBLY (LEFT)$288.99$225.41Not Shipping
44EW-W0057-00-00PISTON ASSY, CALIPER$110.99$86.573 In-Stock
53JD-25803-00-00

(replaces part #
3JD-W0047-00-00)

CALIPER SEAL KIT$23.99$18.718 In-Stock
63SP-25919-01-00SUPPORT, PAD$23.99$19.67Usually ships in 7-10 business days
736Y-W0048-00-00BLEED SCREW KIT$10.99$8.5710+ In-Stock
84SS-W0045-00-00BRAKE PAD KIT$49.99$46.58Usually ships in 7-10 business days
93GD-25933-00-00PIN, PAD$31.99$24.9510+ In-Stock
1095817-08035-00

(replaces part #
90105-08659-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1190109-080G6-00BOLT$5.49$4.94Not Shipping
1290201-090J9-00WASHER, PLATE$2.80$2.52Not Shipping
134SS-2314E-00-00COVER, HOSE$29.99$24.59Not Shipping
1495817-06012-00BOLT, FLANGE$1.95$1.7710+ In-Stock
1595027-08020-00BOLT, FLANGE$9.49$7.409 In-Stock
1692907-08200-00WASHER$9.49$7.4010+ In-Stock
