FRONT WHEEL

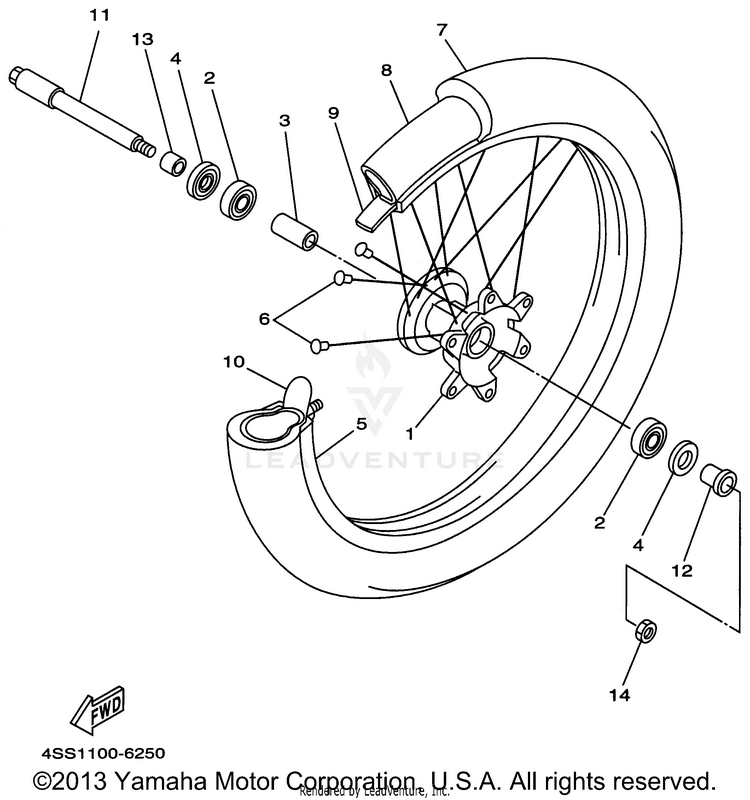

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14SS-25111-01-00

(replaces part #
4SS-25111-00-00)

HUB, FRONT$217.99$170.03Not Shipping
293306-90403-00BEARING$48.99$38.219 In-Stock
390387-2007U-00COLLAR$12.49$10.24Not Shipping
493102-25360-00OIL SEAL$16.49$13.52Usually ships in 7-10 business days
594416-21547-00RIM (1.60-21)$405.99$316.67Usually ships in 7-10 business days
64DA-25104-00-00SPOKE SET, FRONT$110.99$86.57Not Shipping
794108-21012-00

(replaces part #
94108-217X6-00)

80/100-21 - 51M - M6 | UR DUNLOP$216.99$172.08Usually ships in 7-10 business days
894227-21123-00TUBE (MCS 2.75/3.00-21 TR6) | BRIDGESTONE$51.99$40.5510+ In-Stock
994330-21084-00

(replaces part #
94307-21145-00)

BAND, RIM (1.60-21) | DUNLOP$18.49$14.4210+ In-Stock
105X2-25394-00-00SPACER, BEAD$43.99$36.294 In-Stock
114SS-25181-00-00AXLE, WHEEL$117.99$92.03Not Shipping
1290387-2007T-00COLLAR$12.49$10.24Not Shipping
1390387-2007S-00COLLAR$15.49$12.70Not Shipping
1490179-16672-00NUT$20.99$16.376 In-Stock
