1996 Yamaha YZF600R Cylinder Head OEM Parts Diagram

Submodel YZF600RHC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CYLINDER HEAD

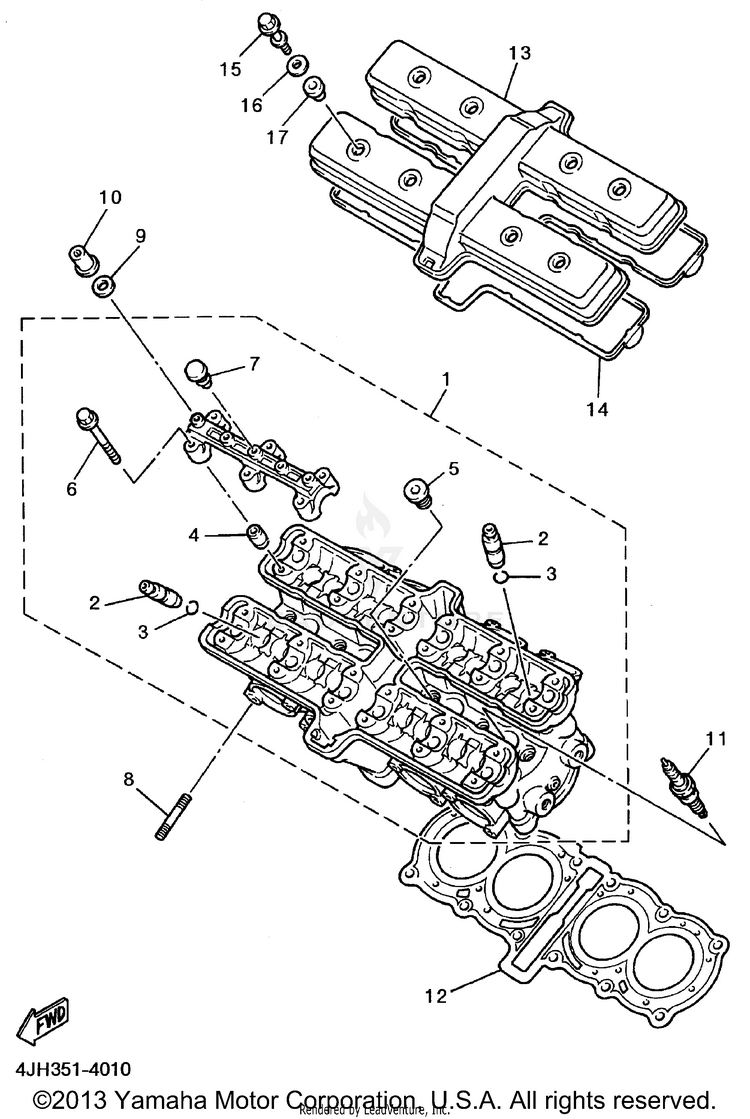

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4MM-11101-02-00

(replaces part #
4MM-11101-00-00)

CYLINDER HEAD ASSY | UR FOR CA$1,164.99$941.12Usually ships in 7-10 business days
14JH-11101-02-00

(replaces part #
4JH-11101-00-00)

CYLINDER HEAD ASSY | UR NON-CA$1,228.99$998.15Usually ships in 7-10 business days
23TJ-11133-10-00GUIDE, VALVE$73.99$57.71Usually ships in 7-10 business days
393440-07149-00CIRCLIP$9.49$7.409 In-Stock
491808-16023-00

(replaces part #
99510-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
590340-12112-00PLUG, STRAIGHT SCREW$10.49$8.183 In-Stock
690105-06026-00

(replaces part #
90105-06384-00)

BOLT, FLANGE$6.99$6.29Not Shipping
790338-08174-00PLUG$8.99$8.09Usually ships in 7-10 business days
890116-06466-00

(replaces part #
90116-06437-00)

BOLT, STUD$4.85$4.177 In-Stock
990201-090P4-00WASHER, PLATE$2.65$2.38Usually ships in 7-10 business days
1090179-09612-00NUT$8.99$8.09Usually ships in 7-10 business days
11CR9-E0000-00-00

(replaces part #
NGK-CR9E0-00-00)

CR9E NGK SPLUG 4PK$10.49$8.1810+ In-Stock
124JH-11181-00-00GASKET, CYLINDER HEAD 1$111.99$87.35Usually ships in 7-10 business days
133TJ-11191-00-00COVER, CYLINDER HEAD 1$154.99$120.89Usually ships in 7-10 business days
144TV-11193-00-00

(replaces part #
3TJ-11193-00-00)

GASKET, HEAD COVER 1$70.99$55.37Usually ships in 7-10 business days
1590109-064F0-00BOLT$18.49$15.16Usually ships in 7-10 business days
1690209-11262-00WASHER$10.49$8.60Usually ships in 7-10 business days
172GH-1111G-00-00RUBBER, MOUNT 1$9.49$7.405 In-Stock
