1996 Yamaha YZF600R Electrical 1 OEM Parts Diagram

Submodel YZF600RHC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

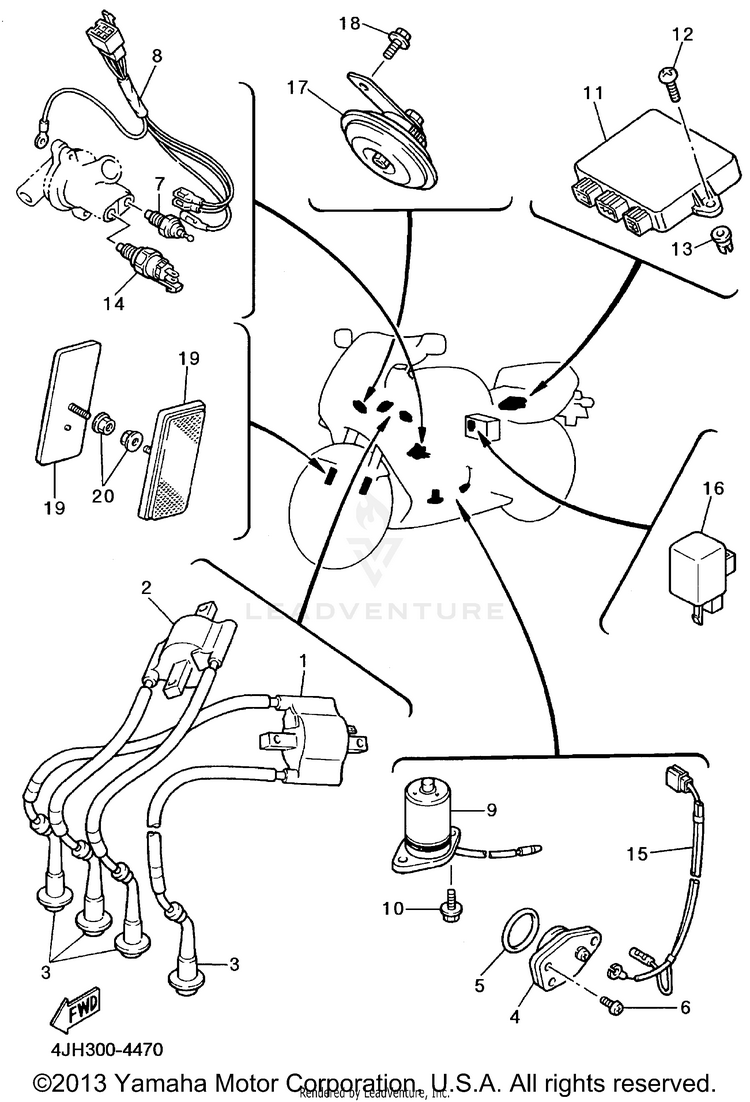

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4JH-82305-40-00IGNITOR UNIT ASSEMBLY | UR FOR CA$765.99$622.25Usually ships in 7-10 business days
14BR-82310-06-00

(replaces part #
4JH-82310-00-00)

IGNITION COIL ASSY$89.99$70.19Usually ships in 7-10 business days
24BR-82320-06-00

(replaces part #
4JH-82320-00-00)

IGNITION COIL ASSY$75.99$59.27Usually ships in 7-10 business days
31WG-82370-00-00PLUG CAP ASSEMBLY$108.99$85.01Usually ships in 7-10 business days
41AE-82540-00-00NEUTRAL SWITCH ASSY$33.99$27.87Usually ships in 7-10 business days
593210-29196-00O-RING$9.49$7.4010+ In-Stock
698507-06016-00SCREW,PAN HEAD$3.48$2.9910+ In-Stock
711H-83591-00-00THERMO UNIT$114.99$89.69Usually ships in 7-10 business days
83TJ-82583-00-00WIRE, SUB LEAD$26.99$22.13Usually ships in 7-10 business days
94H7-85720-02-00

(replaces part #
4JH-85720-00-00)

OIL LEVEL GAUGE ASSY$178.99$139.61Usually ships in 7-10 business days
1090105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
114JH-82305-00-00IGNITOR UNIT ASSEMBLY | UR NON-CA$838.78$654.25Usually ships in 7-10 business days
1297707-60016-00SCREW, TAPPING$1.85$1.5910+ In-Stock
1390338-08226-00PLUG$2.35$2.0210+ In-Stock
143LN-82560-01-00

(replaces part #
3LN-82560-00-00)

THERMO SWITCH ASSY$90.99$70.971 In-Stock
151WG-82541-00-00WIRE, LEAD$15.99$13.11Usually ships in 7-10 business days
163GM-83350-03-00

(replaces part #
3GM-83350-00-00)

FLASHER RELAY ASSY$88.99$69.41Usually ships in 7-10 business days
172KG-83371-00-00

(replaces part #
3BN-83371-00-00)

HORN$93.99$73.31Usually ships in 7-10 business days
1895817-06010-00BOLT,FLANGE$5.49$4.2810+ In-Stock
1911H-85110-01-00REFLECTOR ASSY$30.99$24.173 In-Stock
2095707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
