1996 Yamaha YZF600R Water Pump OEM Parts Diagram

Submodel YZF600RHC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

WATER PUMP

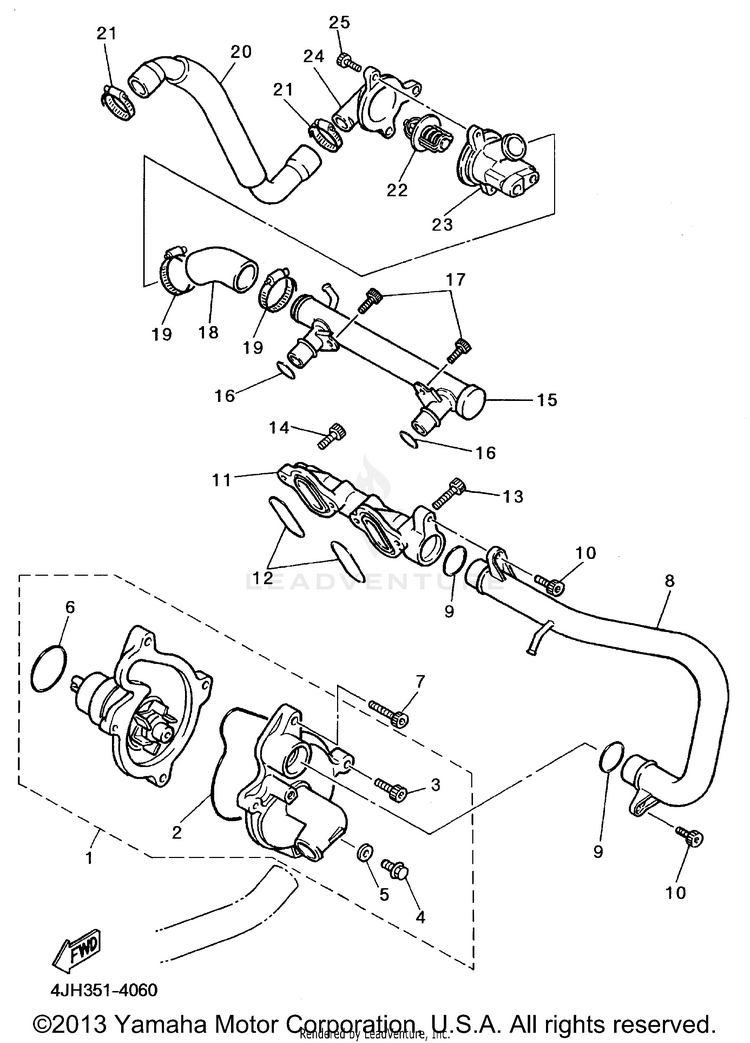

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13TJ-Y1242-00-00WATER PUMP ASSY$463.99$361.91Usually ships in 7-10 business days
21WG-12439-00-00O-RING$30.99$24.175 In-Stock
391317-06025-00BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
495027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
590430-06014-00GASKET$8.99$7.0110+ In-Stock
693210-33133-00O-RING$3.80$3.2710+ In-Stock
791317-06035-00BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
84JH-12481-00-00PIPE 1$70.91$55.31Usually ships in 7-10 business days
993210-21190-00O-RING$8.49$6.6210+ In-Stock
1091317-06012-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
111WG-12446-01-00JOINT$44.99$36.89Usually ships in 7-10 business days
1293210-17746-00O-RING$8.49$7.64Usually ships in 7-10 business days
1391317-06040-00BOLT, HEX. SOCKET HEAD$4.05$3.4810+ In-Stock
1491317-06025-00BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
154JH-12482-00-00PIPE 2$120.35$93.87Usually ships in 7-10 business days
1693210-15566-00O-RING$8.49$6.6210+ In-Stock
1791317-06010-00BOLT$10.49$8.184 In-Stock
183TJ-12576-00-00HOSE 1$16.49$13.52Not Shipping
1990450-32015-00

(replaces part #
90450-32051-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
204JH-12577-00-00HOSE 2$47.99$39.35Not Shipping
2190450-32015-00

(replaces part #
90450-32051-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
224JH-12410-01-00

(replaces part #
4JH-12410-00-00)

THERMOSTAT ASSY$42.99$35.25Usually ships in 7-10 business days
233TJ-12417-00-00HOUSING, THERMOSTAT$66.99$52.25Usually ships in 7-10 business days
243TJ-12413-00-00COVER, THERMOSTAT$43.99$36.07Not Shipping
2591317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
