1999 Yamaha V-Max Front Brake Caliper OEM Parts Diagram

Submodel V-MAX 1200 - VMX12LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

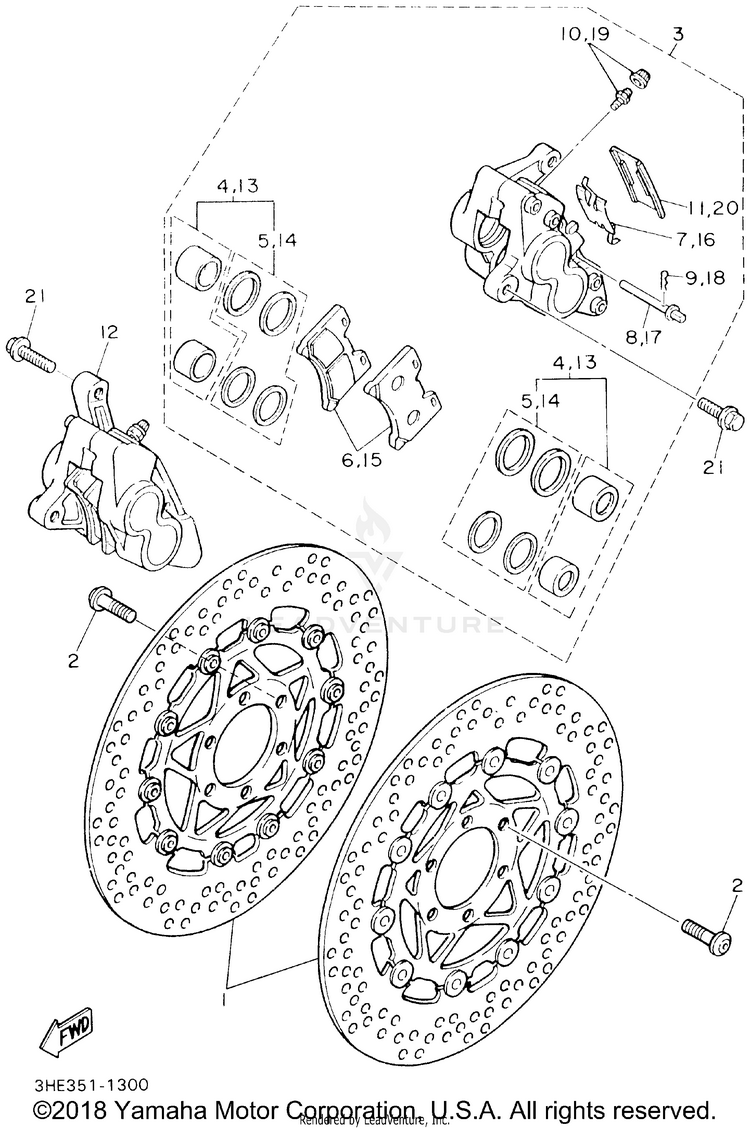

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13LR-2581T-01-00

(replaces part #
3LR-2581T-00-00)

DISC BRAKE ASSY$355.99$277.67Usually ships in 7-10 business days
290111-08057-00

(replaces part #
90109-083G4-00)

BOLT$2.50$2.1510+ In-Stock
33JP-2580T-00-00CALIPER ASSY (LEFT)$381.99$342.18Usually ships in 7-10 business days
43HE-W0057-50-00PISTON ASSY, CALIPER$71.99$56.15Usually ships in 7-10 business days
53HE-W0047-50-00CALIPER SEAL KIT$66.99$52.252 In-Stock
63GM-W0045-03-00

(replaces part #
3GM-W0045-02-00)

BRAKE PAD KIT$91.99$71.75Usually ships in 7-10 business days
73GM-25919-00-00SUPPORT, PAD$43.99$36.07Usually ships in 7-10 business days
83HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
93GM-25925-00-00CLIP$12.99$10.136 In-Stock
101J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
111KT-25836-01-00

(replaces part #
1KT-25836-00-00)

COVER, DUST$18.99$15.57Usually ships in 7-10 business days
123JP-2580U-00-00CALIPER ASSY (RIGHT)$475.99$424.59Usually ships in 7-10 business days
133HE-W0057-50-00PISTON ASSY, CALIPER$71.99$56.15Usually ships in 7-10 business days
143HE-W0047-50-00CALIPER SEAL KIT$66.99$52.252 In-Stock
153GM-W0045-03-00

(replaces part #
3GM-W0045-02-00)

BRAKE PAD KIT$91.99$71.75Usually ships in 7-10 business days
163GM-25919-00-00SUPPORT, PAD$43.99$36.07Usually ships in 7-10 business days
173HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
183GM-25925-00-00CLIP$12.99$10.136 In-Stock
191J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
201KT-25836-01-00

(replaces part #
1KT-25836-00-00)

COVER, DUST$18.99$15.57Usually ships in 7-10 business days
2190105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
