1999 Yamaha V-Max Handle Switch Lever OEM Parts Diagram

Submodel V-MAX 1200 - VMX12LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

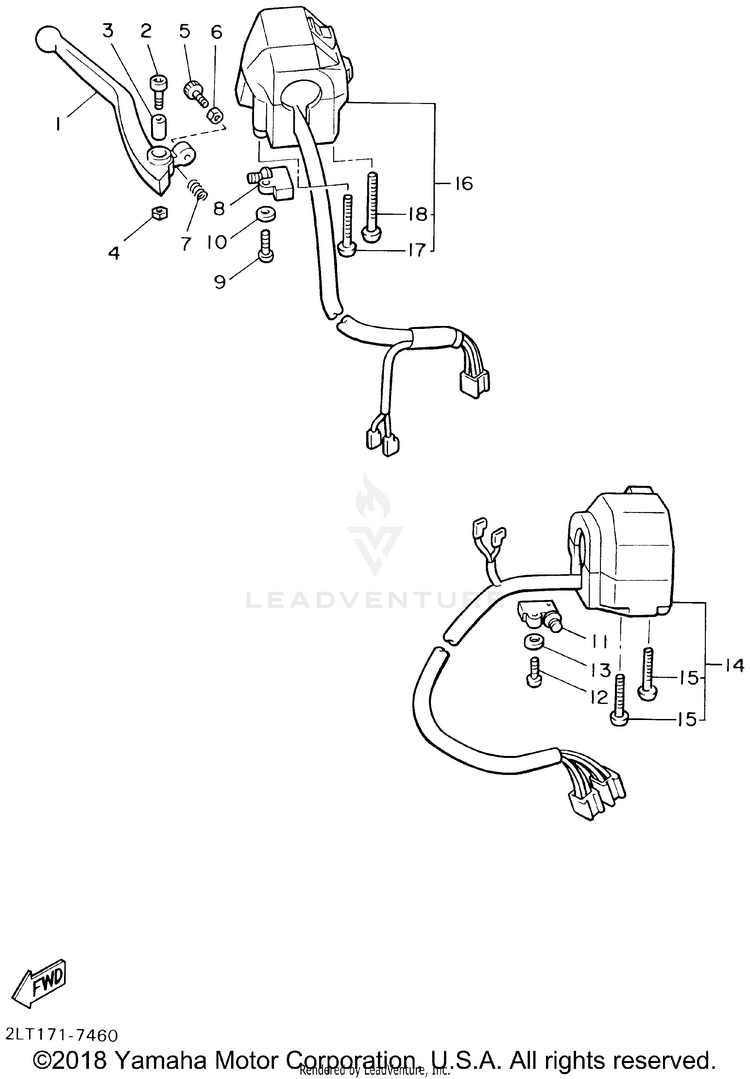

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-83922-00-00LEVER 2$37.99$31.15Usually ships in 7-10 business days
290110-06074-00BOLT, HEXAGON SOCKET HEAD$9.49$8.54Usually ships in 7-10 business days
336Y-83913-01-00COLLAR, LEVER 1$10.99$8.577 In-Stock
495617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
590149-06131-00SCREW$9.49$7.4010+ In-Stock
690170-06010-00NUT$9.49$7.404 In-Stock
790501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
8J45-82503-01-00

(replaces part #
36Y-83980-01-00)

FRONT STOP SWITCH ASSY$40.99$31.971 In-Stock
998517-04016-00

(replaces part #
98507-04016-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1092907-04600-00WASHER$1.85$1.596 In-Stock
1136Y-82917-00-00STOP SWITCH ASSY$49.99$40.99Usually ships in 7-10 business days
1298517-04016-00

(replaces part #
98507-04016-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
1392907-04600-00WASHER$1.85$1.596 In-Stock
141UF-83973-10-00

(replaces part #
1FK-83973-00-00)

SWITCH, HANDLE 3$344.99$269.09Usually ships in 7-10 business days
1598507-05035-00

(replaces part #
98506-05035-00)

SCREW, PAN HEAD$9.49$7.407 In-Stock
161FK-83973-11-00SWITCH, HANDLE 3$193.99$151.31Usually ships in 7-10 business days
1798507-05040-00

(replaces part #
98506-05040-00)

SCREW, PAN HEAD$9.49$8.543 In-Stock
1898507-05045-00

(replaces part #
98506-05045-00)

SCREW, PAN HEAD$10.49$8.183 In-Stock
