1999 Yamaha V-Max Rear Master Cylinder OEM Parts Diagram

Submodel V-MAX 1200 - VMX12LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

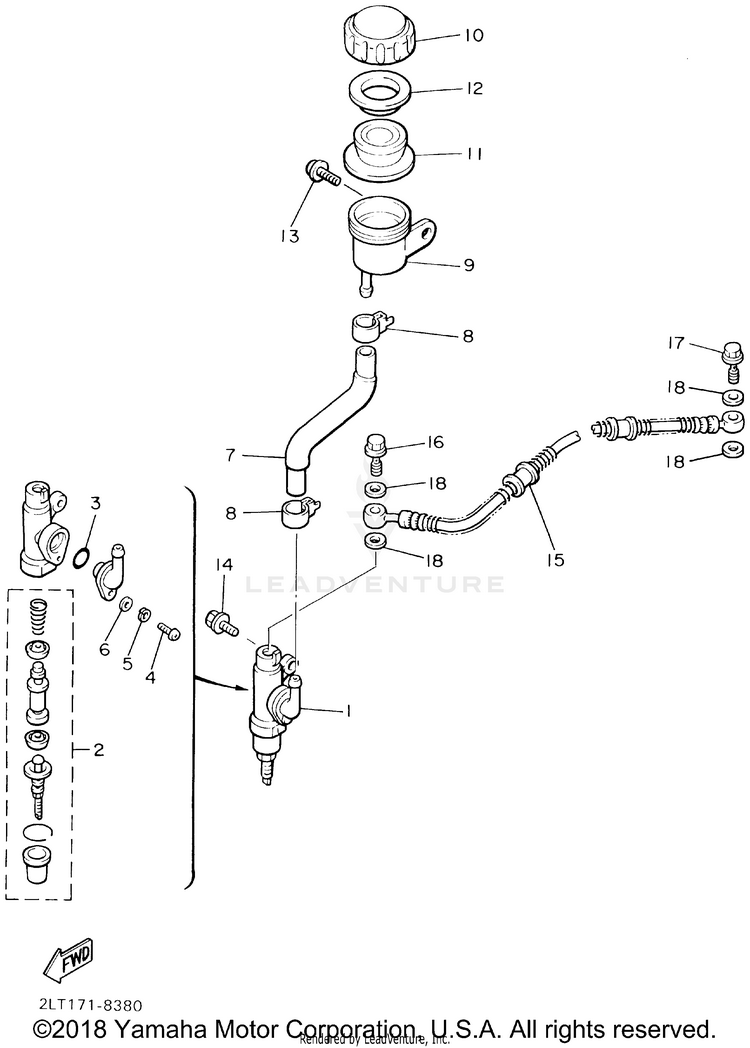

REAR MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-25850-50-00MASTER CYLINDER ASSY$299.99$233.99Usually ships in 7-10 business days
21FK-W0042-50-00CYLINDER KIT, MASTER$76.99$60.054 In-Stock
AFTERMARKET ALTERNATIVE
$29.55$28.0710+ In-Stock
393210-15566-00

(replaces part #
93210-15620-00)

O-RING$8.49$6.6210+ In-Stock
498517-04012-00

(replaces part #
98501-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
592990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
692990-04600-00

(replaces part #
92901-04600-00)

WASHER, PLATE$0.99$0.907 In-Stock
71FK-25895-00-00HOSE, RESERVOIR$15.99$13.69Usually ships in 7-10 business days
890467-14057-00CLIP$9.49$7.403 In-Stock
931A-25894-01-00TANK, RESERVOIR$21.99$18.03Usually ships in 7-10 business days
102KF-25852-50-00CAP, RESERVOIR$51.99$40.554 In-Stock
11360-25854-01-00DIAPHRAGM, RESERVOIR$25.99$20.274 In-Stock
122GU-25855-00-00BUSH, DIAPHRAGM$33.99$26.511 In-Stock
1390159-06056-00SCREW, WITH WASHER$9.49$7.406 In-Stock
1490105-081A1-00BOLT, FLANGE$10.49$8.604 In-Stock
151FK-25874-03-00HOSE, BRAKE$112.99$88.13Usually ships in 7-10 business days
1690401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1790401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
1890201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
