1999 Yamaha V-Star Custom XVS1100 Headlight OEM Parts Diagram

Submodel V-STAR 1100 - XVS1100LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

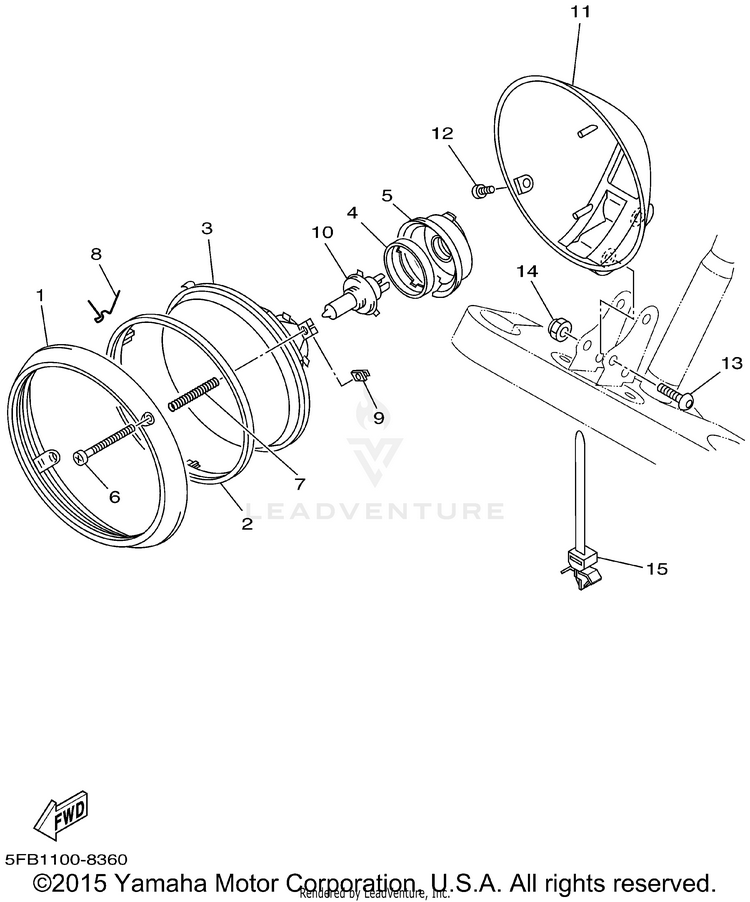

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
142X-84315-01-00RIM, HEADLIGHT$132.99$103.73Usually ships in 7-10 business days
25Y3-84395-00-00RING, RETAINING$55.99$43.67Usually ships in 7-10 business days
342X-84321-A0-00LENS ASSY$131.99$102.95Usually ships in 7-10 business days
42F9-84375-00-00SETTING PLATE, BULB$14.99$12.29Usually ships in 7-10 business days
52F9-84397-01-00COVER, SOCKET$33.99$27.87Usually ships in 7-10 business days
690157-04001-00

(replaces part #
341-84331-60-00)

SCREW, ADJUSTING$9.49$7.404 In-Stock
7447-84332-60-00

(replaces part #
1A0-84332-60-00)

SPRING, SCREW$11.49$9.42Usually ships in 7-10 business days
842X-84124-60-00SPRING, SET$7.49$6.74Usually ships in 7-10 business days
9198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
108V0-84314-10-00

(replaces part #
2F9-84314-00-00)

BULB, HEADLIGHT (12V-60/55W) | (H4) HALOGEN$75.99$60.93Usually ships in 7-10 business days
114TR-84330-00-00BODY ASSY$165.99$129.47Usually ships in 7-10 business days
1290149-05317-00SCREW$1.85$1.66Usually ships in 7-10 business days
1392014-06045-00BOLT, BUTTON HEAD$3.60$3.24Usually ships in 7-10 business days
1490176-06047-00NUT, CROWN$10.49$8.60Usually ships in 7-10 business days
1590464-10112-00

(replaces part #
90464-12089-00)

CLAMP$9.49$7.404 In-Stock
