1999 Yamaha V-Star Custom XVS1100 Steering OEM Parts Diagram

Submodel V-STAR 1100 - XVS1100LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

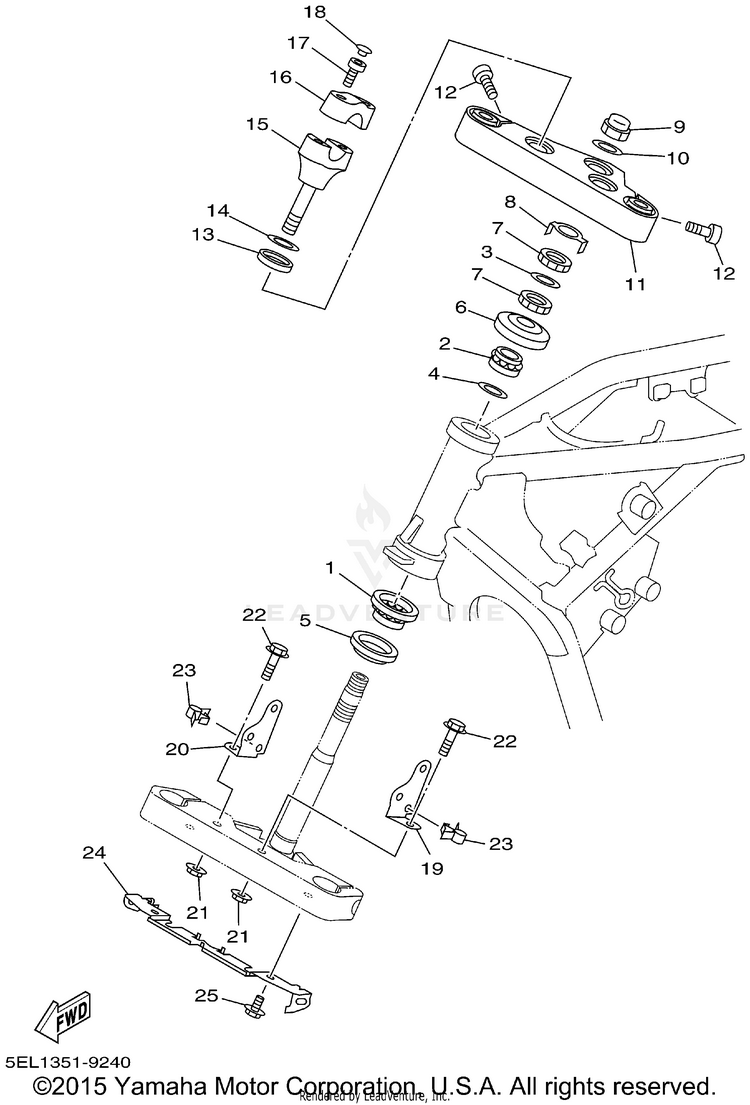

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193399-99932-00BEARING$69.99$54.59Usually ships in 7-10 business days
293399-99931-00BEARING$62.99$49.13Usually ships in 7-10 business days
390202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
490202-24190-00WASHER, PLATE$10.49$8.60Usually ships in 7-10 business days
53FV-23462-00-00SEAL, STEERING$26.99$22.13Usually ships in 7-10 business days
61W1-23416-00-00COVER, BALL RACE 2$32.99$25.736 In-Stock
790179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
826H-23418-01-00WASHER, SPECIAL$15.49$12.702 In-Stock
990176-22081-00NUT, CROWN$37.99$31.15Usually ships in 7-10 business days
1090201-22018-00

(replaces part #
90201-220T0-00)

WASHER, PLATE$6.49$5.068 In-Stock
114VR-W2341-10-00

(replaces part #
4VR-W2341-00-00)

CROWN, HANDLE$236.99$187.32Usually ships in 7-10 business days
1291314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
133DM-23445-00-00DAMPER$8.49$6.621 In-Stock
1490201-14220-00WASHER, PLATE$9.49$7.4010+ In-Stock
154VR-23442-01-00

(replaces part #
4VR-23442-00-00)

HOLDER, HANDLE LOWER$120.99$94.37Usually ships in 7-10 business days
164VR-23441-00-00HOLDER, HANDLE UPPER$77.99$60.83Usually ships in 7-10 business days
1791314-08025-00BOLT, HEXAGON SOCKET HEAD$9.49$8.542 In-Stock
1890338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
194TR-23175-01-00

(replaces part #
4TR-23175-00-00)

BRACKET, HEADLIGHT STAY 1$6.99$6.29Usually ships in 7-10 business days
204TR-23176-01-00

(replaces part #
4TR-23176-00-00)

BRACKET, HEADLIGHT STAY 2$7.99$7.19Usually ships in 7-10 business days
2195707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
2295024-06025-00BOLT, FLANGE (SMALL HEAD)-$2.5510+ In-Stock
2390464-15157-00CLAMP$9.49$7.407 In-Stock
245EL-25886-00-00HOLDER, BRAKE HOSE$44.99$36.89Usually ships in 7-10 business days
2595024-06010-00BOLT, FLANGE (SMALL HEAD)$5.00$4.3010+ In-Stock
