1999 Yamaha V-Star Custom XVS1100 Starter OEM Parts Diagram

Submodel V-STAR 1100 - XVS1100LC - 1999

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

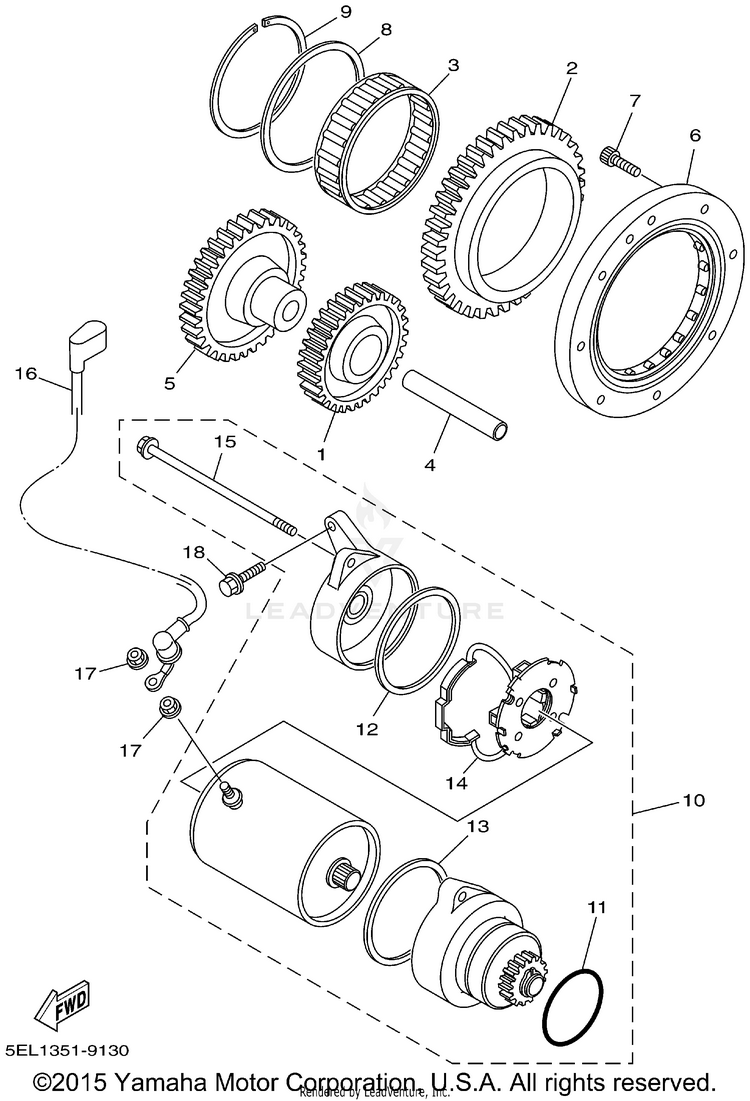

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-15515-00-00GEAR 3$167.99$131.03Usually ships in 7-10 business days
25EL-W155B-30-00

(replaces part #
5EL-15517-00-00)

ROTOR SUB-ASSY$751.99$586.55Usually ships in 7-10 business days
393310-5720G-00BEARING$89.99$70.194 In-Stock
424W-15521-00-00SHAFT 1$14.99$12.47Not Shipping
55EL-15512-00-00GEAR, IDLER 1$217.99$170.03Usually ships in 7-10 business days
699999-03908-00

(replaces part #
5EL-15590-00-00)

STARTER ONE-WAY ASSY$898.99$804.061 In-Stock
791317-06016-00BOLT (4MY)-$1.4210+ In-Stock
890201-72008-00

(replaces part #
90201-723U3-00)

WASHER, PLATE$36.99$30.33Usually ships in 7-10 business days
993440-68180-00CIRCLIP$22.99$18.854 In-Stock
105EL-81890-01-00

(replaces part #
5EL-81890-00-00)

MOTOR ASSY$438.99$363.81Usually ships in 7-10 business days
111J7-81847-60-00O-RING$42.99$35.25Usually ships in 7-10 business days
1235C-81844-00-00

(replaces part #
11H-81844-00-00)

GASKET$53.99$42.11Usually ships in 7-10 business days
134G0-81844-00-00GASKET$32.99$27.05Usually ships in 7-10 business days
145A8-81840-10-00BRUSH HOLDER ASSY$115.99$90.47Usually ships in 7-10 business days
153KM-81826-00-00BOLT$19.49$15.98Usually ships in 7-10 business days
165JN-81815-00-00

(replaces part #
5EL-81815-00-00)

CORD, STARTER MOTOR$68.99$53.81Usually ships in 7-10 business days
174XV-8182A-00-00NUT$8.49$6.626 In-Stock
1895814-06025-00BOLT, FLANGE$10.49$8.60Usually ships in 7-10 business days
