2000 Yamaha BIG BEAR 4X4 400 Front Master Cylinder OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM400FMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

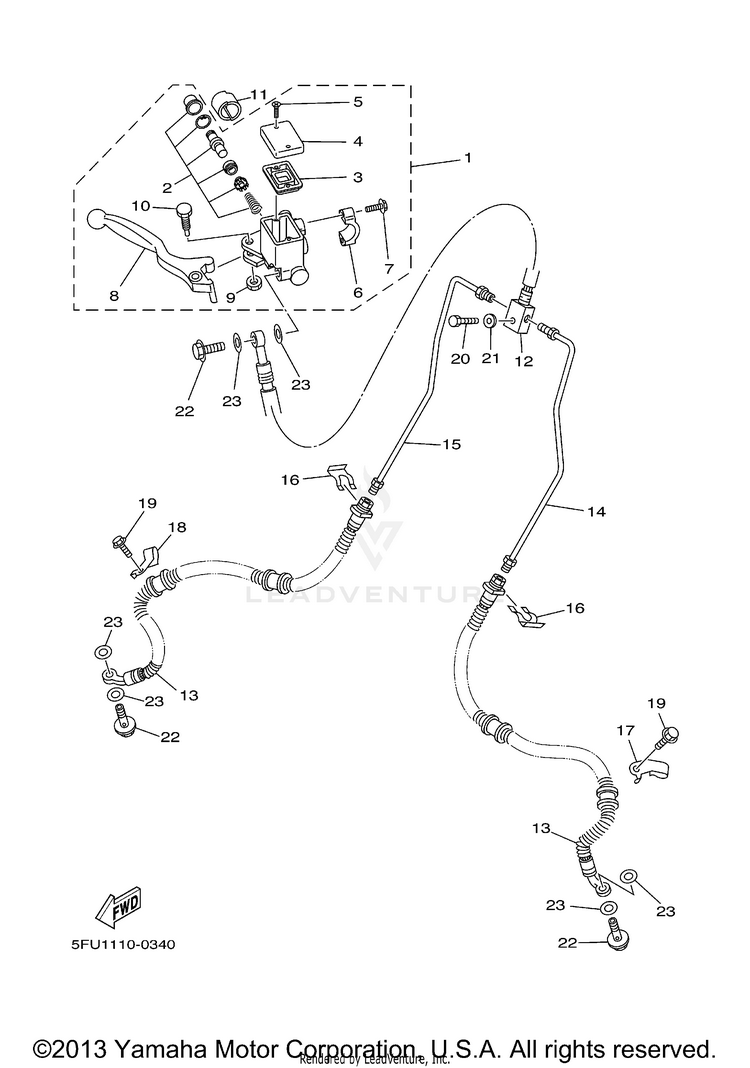

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15GH-2583T-00-00MASTER CYLINDER ASSY$318.99$248.81Usually ships in 7-10 business days
24H7-W0041-50-00

(replaces part #
5GH-W0041-00-00)

CYLINDER KIT, MASTER$84.99$66.296 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.316 In-Stock
355U-25854-00-00DIAPHRAGM, RESERVOIR$30.99$25.412 In-Stock
48CR-25852-00-00CAP, RESERVOIR$30.99$25.41Usually ships in 7-10 business days
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
65GH-25867-00-00BRACKET, MASTER CYLINDER$28.99$23.77Usually ships in 7-10 business days
75EB-26332-00-00BOLT$8.49$6.622 In-Stock
85GH-83922-00-00LEVER 2$36.99$30.33Usually ships in 7-10 business days
995617-06100-00

(replaces part #
95606-06100-00)

NUT, U$2.90$2.4910+ In-Stock
105GH-2589F-00-00BOLT, LEVER$7.49$6.74Not Shipping
111UY-26259-00-00COLLAR$21.99$17.152 In-Stock
125FU-F5872-10-00

(replaces part #
5FU-F5872-00-00)

HOSE,BRAKE 1$46.99$38.53Usually ships in 7-10 business days
135FU-F5873-00-00HOSE, BRAKE 2$56.99$44.45Not Shipping
145FU-F5871-00-00PIPE, BRAKE$11.49$9.42Usually ships in 7-10 business days
155FU-F5882-00-00PIPE, BRAKE 2$11.49$9.42Usually ships in 7-10 business days
162GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
175FU-F5875-00-00HOLDER, BRAKE HOSE 1$61.99$52.03Usually ships in 7-10 business days
185FU-F5876-00-00HOLDER, BRAKE HOSE 2$5.74$5.17Usually ships in 7-10 business days
1995817-06012-00

(replaces part #
9582P-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
2097017-08030-00

(replaces part #
97027-08030-00)

BOLT$10.49$8.182 In-Stock
2192907-08600-00WASHER, PLATE$3.25$2.80
2290401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
2390201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
