2000 Yamaha BIG BEAR 4X4 400 Valve OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM400FMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

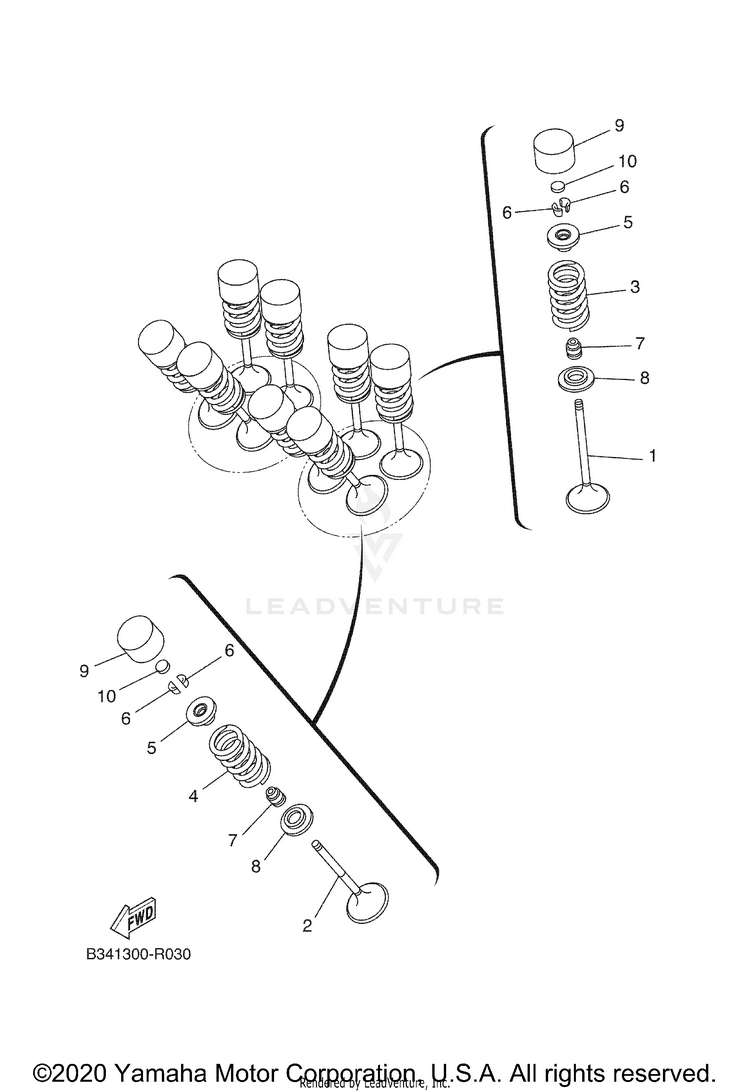

VALVE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-12111-01-00VALVE, INTAKE$87.99$68.634 In-Stock
21UY-12121-01-00VALVE, EXHAUST$102.99$80.336 In-Stock
33Y1-12116-00-00SEAT, VALVE SPRING$17.99$14.037 In-Stock
422U-12113-00-00SPRING, VALVE INNER$30.99$24.174 In-Stock
51UY-12114-01-00SPRING, VALVE OUTER$30.99$24.174 In-Stock
6M01-12129-00-00SEAL, VALVE STEM$15.49$12.0810+ In-Stock
73Y1-12117-01-00RETAINER, VALVE SPRING$18.99$14.816 In-Stock
81J7-12118-00-00LOCK, VALVE SPRING RETAINER$8.49$6.6210+ In-Stock
999999-03218-00

(replaces part #
3GD-12151-10-00)

ARM, VALVE ROCKER(4S$89.99$70.19Usually ships in 7-10 business days
1090206-12001-00WASHER, WAVE$6.49$5.066 In-Stock
113Y1-12156-00-00

(replaces part #
5FU-12156-00-00)

SHAFT, ROCKER 2$71.99$56.15Usually ships in 7-10 business days
123Y1-12156-00-00SHAFT, ROCKER 2$71.99$56.15Usually ships in 7-10 business days
1393210-09350-00

(replaces part #
93210-09165-00)

O-RING$7.49$5.8410+ In-Stock
1431G-12159-02-00SCREW, VALVE ADJUSTING$10.99$8.574 In-Stock
1531G-12158-00-00NUT, LOCK$7.49$5.845 In-Stock
