2000 Yamaha BIG BEAR 4X4 400 Front Suspension Wheel OEM Parts Diagram

Submodel BIG BEAR 4WD - YFM400FMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

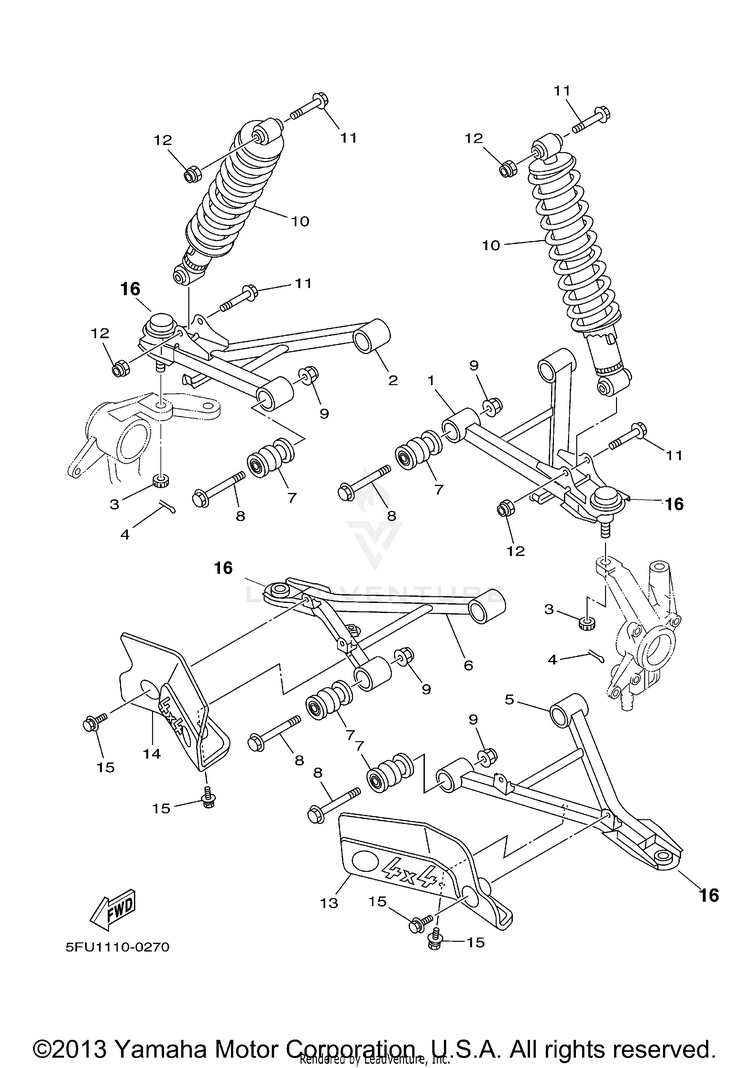

FRONT SUSPENSION WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15FU-F3540-00-00FRONT UPPER ARM COMP. (LEFT)$155.99$121.67Usually ships in 7-10 business days
25FU-F3550-00-00FRONT UPPER ARM COMP. (RIGHT)$155.99$121.67Usually ships in 7-10 business days
390171-12001-00

(replaces part #
90171-12816-00)

NUT, CASTLE$3.55$3.0510+ In-Stock
491490-25020-00

(replaces part #
91401-25020-00)

PIN. COTTER$3.45$2.9710+ In-Stock
55FU-F357A-00-00ARM, FRONT LOWER LH.$153.99$120.11Not Shipping
65FU-F358A-00-00ARM, FRONT LOWER RH.$262.99$205.13Not Shipping
72HR-23526-00-00BUSH$22.99$17.9310+ In-Stock
890105-10267-00

(replaces part #
90105-10890-00)

BOLT, FLANGE$10.49$8.188 In-Stock
990185-10012-00

(replaces part #
90185-10844-00)

NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
105FU-F3350-10-00

(replaces part #
5FU-F3350-00-00)

SHOCK ABSORBER ASSY$186.99$162.29Not Shipping
1190105-10841-00

(replaces part #
90105-108B1-00)

BOLT, FLANGE$2.45$2.315 In-Stock
1290185-10012-00

(replaces part #
90185-10844-00)

NUT, SELF-LOCKING$3.60$3.1010+ In-Stock
135FU-F3123-01-00

(replaces part #
5FU-F3123-00-00)

COVER, LOWER 1$9.99$8.99Not Shipping
145FU-F3133-01-00

(replaces part #
5FU-F3133-00-00)

COVER, LOWER 2$9.99$8.991 In-Stock
1590119-06018-00BOLT, WITH WASHER$9.49$7.40
1637S-23549-01-00

(replaces part #
5FU-F3549-00-00)

BALL JOINT 1$83.99$65.5110+ In-Stock
AFTERMARKET ALTERNATIVE
$24.99$19.9910+ In-Stock
