2000 Yamaha BREEZE 125 Headlight OEM Parts Diagram

Submodel BREEZE - YFA1MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

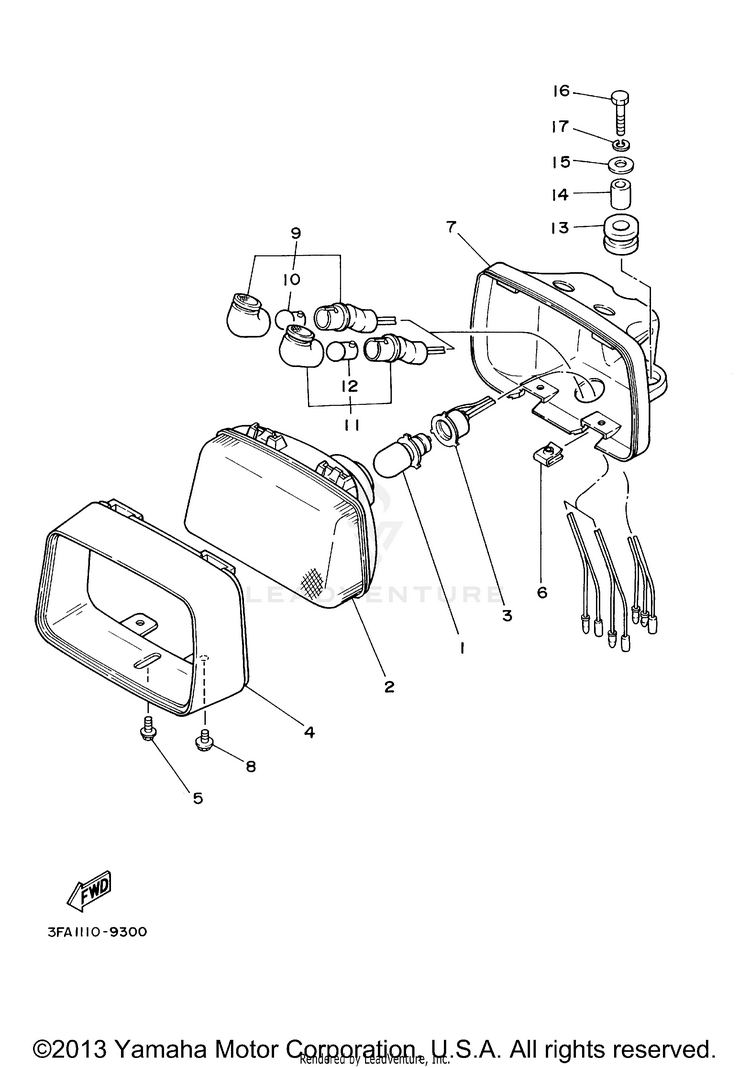

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11YT-84314-00-00

(replaces part #
102-84314-00-00)

BULB, HEADLIGHT (12V-25/25W)$12.99$10.1310+ In-Stock
23FA-84320-00-00LENS ASSY$66.99$52.25Usually ships in 7-10 business days
33FA-84312-00-00HOLDER, SOCKET$21.99$18.03Usually ships in 7-10 business days
43FA-84315-00-00RIM, HEADLIGHT$59.99$46.79Usually ships in 7-10 business days
53FA-84331-00-00SCREW, RIM ADJUSTING$6.99$6.29Usually ships in 7-10 business days
690183-05074-00

(replaces part #
3FA-84326-00-00)

NUT, SPRING$11.49$9.421 In-Stock
73FA-84311-00-00BODY, HEADLIGHT$28.99$23.77Not Shipping
898907-05016-00

(replaces part #
3FA-84325-00-00)

SCREW, BIND$9.49$7.4010+ In-Stock
93FA-83530-00-00

(replaces part #
3FA-83530-01-00)

PILOT LIGHT ASSEMBLY$27.99$22.95Usually ships in 7-10 business days
10123-83516-21-XX

(replaces part #
123-83516-21-00)

BULB (12V-3.4W)$4.75$4.08Not Shipping
113FA-83530-10-00

(replaces part #
3FA-83530-11-00)

PILOT LIGHT ASSEMBLY$27.99$22.95Usually ships in 7-10 business days
12123-83516-21-XX

(replaces part #
123-83516-21-00)

BULB (12V-3.4W)$4.75$4.08Not Shipping
1390480-18290-00GROMMET$9.49$8.0510+ In-Stock
1490387-06553-00COLLAR$10.49$8.183 In-Stock
1590201-06072-00WASHER, PLATE$10.49$8.1810+ In-Stock
1697017-06025-00

(replaces part #
97027-06025-00)

BOLT$4.55$3.9110+ In-Stock
1792907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
