2000 Yamaha BREEZE 125 Starting Motor OEM Parts Diagram

Submodel BREEZE - YFA1MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

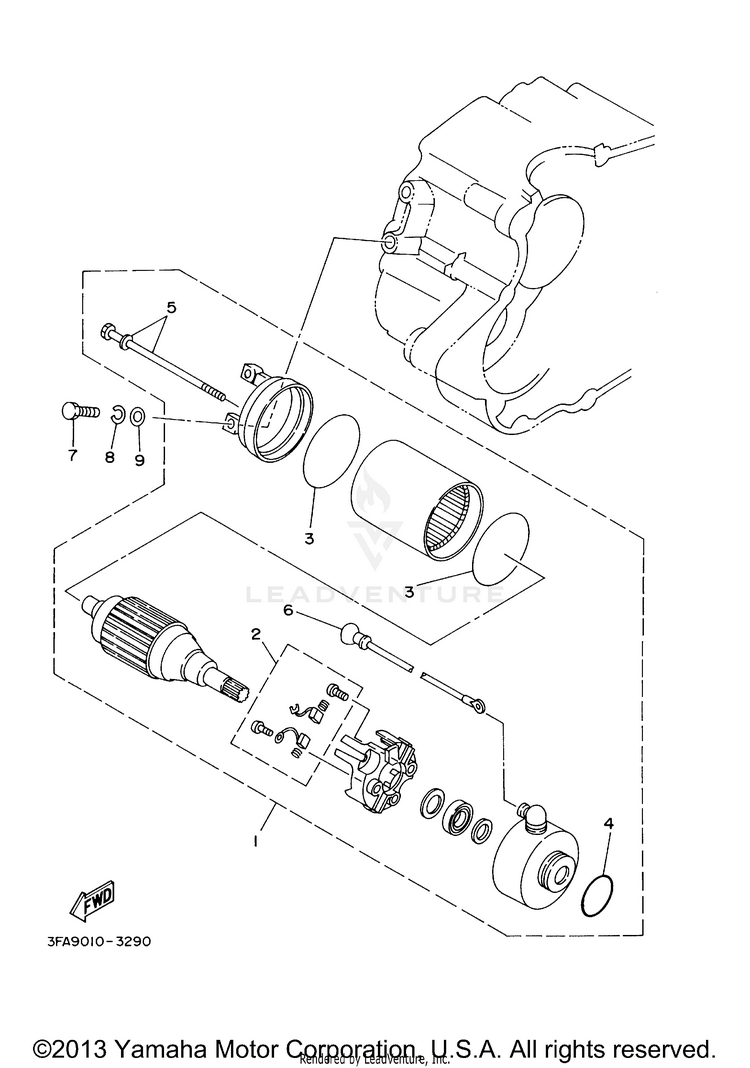

STARTING MOTOR

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-81890-01-00

(replaces part #
3FA-81800-01-00)

MOTOR ASSY$448.99$372.31Usually ships in 7-10 business days
23C5-81801-00-00

(replaces part #
50M-81801-M0-00)

BRUSH SET$25.99$20.272 In-Stock
393210-55669-00O-RING$9.49$7.403 In-Stock
493210-25711-00O-RING$8.49$6.6210+ In-Stock
53FA-81828-00-00SCREW 2$7.49$6.74Usually ships in 7-10 business days
63FA-8183G-00-00CORD COMP.$28.99$23.77Usually ships in 7-10 business days
797017-06025-00

(replaces part #
97007-06025-00)

BOLT$4.55$3.9110+ In-Stock
892907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
992907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
