2000 Yamaha BREEZE 125 Seat OEM Parts Diagram

Submodel BREEZE - YFA1MC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

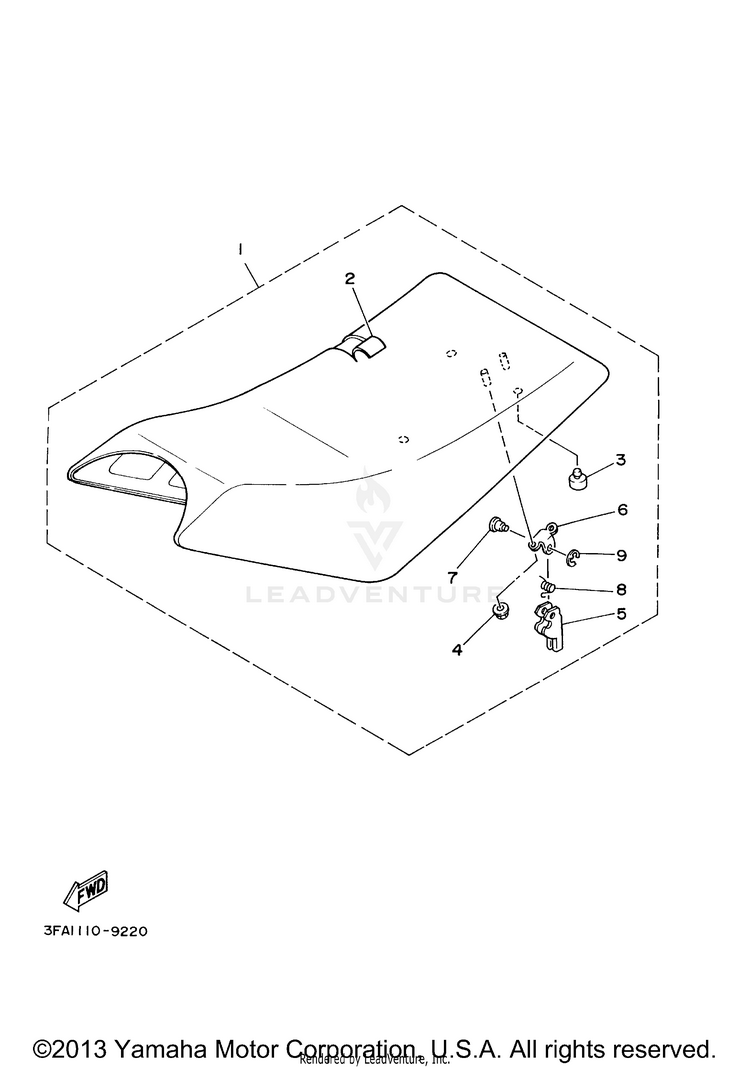

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-24710-70-00SINGLE SEAT ASSY$233.99$182.51Not Shipping
23FA-24731-70-00COVER, SEAT$189.99$148.19Usually ships in 7-10 business days
3371-27114-00-00STOPPER, MAIN STAND$8.49$6.6210+ In-Stock
495707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
529U-24776-00-00LEVER, SEAT$15.49$12.70Usually ships in 7-10 business days
64K0-24775-00-00BRACKET, SEAT LEVER$7.49$6.742 In-Stock
74K0-24774-01-00PIN$17.99$14.75Usually ships in 7-10 business days
890508-20779-00SPRING, TORSION$6.49$5.84Usually ships in 7-10 business days
999080-04600-00

(replaces part #
99001-04600-00)

CLIP$1.99$1.716 In-Stock
