2000 Yamaha WOLVERINE 350 4X4 Clutch OEM Parts Diagram

Submodel WOLVERINE - YFM350FXMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

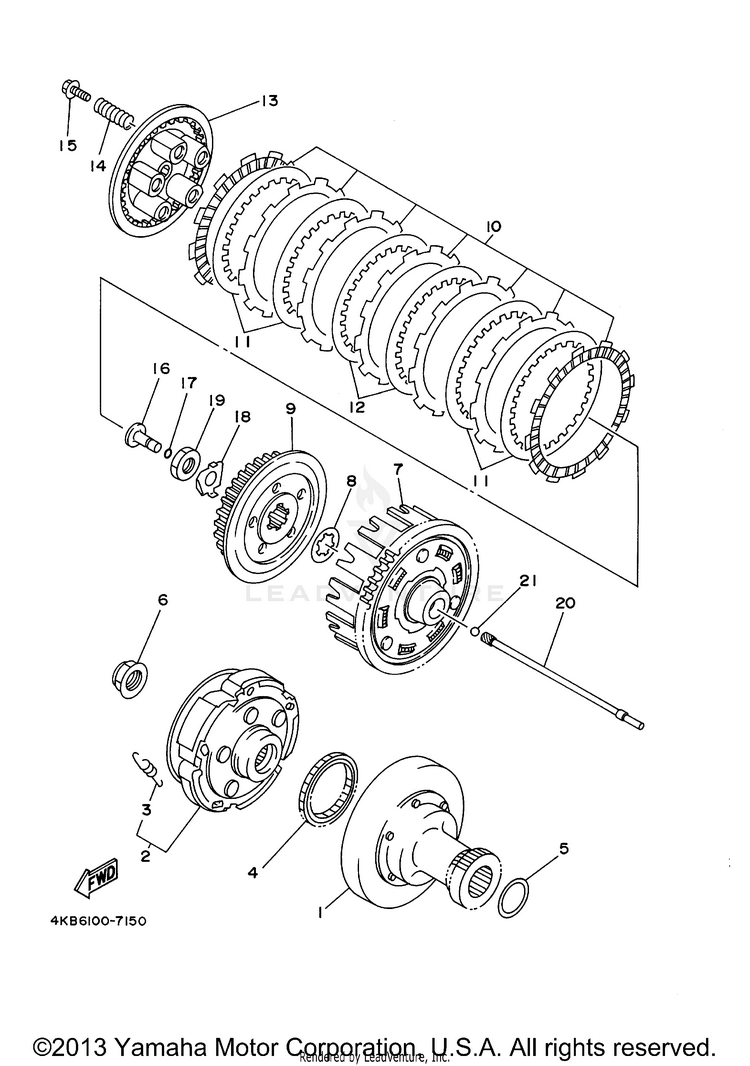

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14WU-16611-00-00CLUTCH HOUSING COMP.$236.99$184.85Not Shipping
24SH-16620-01-00CLUTCH CARRIER ASSY$301.99$235.55Not Shipping
34SH-16626-00-00SPRING, CLUTCH WEIGHT 1$8.99$8.09Not Shipping
44SH-16664-00-00BEARING, ONE WAY$167.99$131.0310+ In-Stock
590201-30008-00

(replaces part #
90201-301P3-00)

WASHER, PLATE$5.49$4.94Usually ships in 7-10 business days
690179-22005-00

(replaces part #
90179-22640-00)

NUT$31.99$24.955 In-Stock
74KB-16150-00-00PRIMARY DRIVEN GEAR COMP.$229.99$182.17Usually ships in 7-10 business days
830X-16154-00-00PLATE, THRUST 1$28.99$22.615 In-Stock
955V-16371-00-00BOSS, CLUTCH$209.99$163.79Not Shipping
105Y1-16331-01-00PLATE, FRICTION 2$32.99$25.7310+ In-Stock
11168-16325-10-00

(replaces part #
168-16325-00-00)

PLATE, CLUTCH 2$15.99$12.4710+ In-Stock
123J2-16324-10-00

(replaces part #
3J2-16324-00-00)

PLATE, CLUTCH 1$11.99$9.3510+ In-Stock
135Y1-16351-00-00PLATE, PRESSURE 1$58.99$46.01Usually ships in 7-10 business days
1490501-23598-00SPRING, COMPRESSION$8.49$6.629 In-Stock
1590159-06010-00SCREW, WITH WASHER$8.49$6.6210+ In-Stock
164KB-16356-00-00ROD, PUSH 1$27.99$22.95Usually ships in 7-10 business days
1793210-06632-00

(replaces part #
93210-06422-00)

O-RING$9.49$7.4010+ In-Stock
1890215-16289-00WASHER, LOCK$7.99$6.5210+ In-Stock
1990170-16326-00NUT$14.49$11.305 In-Stock
204KB-16357-00-00ROD, PUSH 2$36.99$30.33Usually ships in 7-10 business days
2193511-32027-00

(replaces part #
93511-32017-00)

BALL$9.49$7.4010+ In-Stock
