2000 Yamaha WOLVERINE 350 4X4 Front Fender OEM Parts Diagram

Submodel WOLVERINE - YFM350FXMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

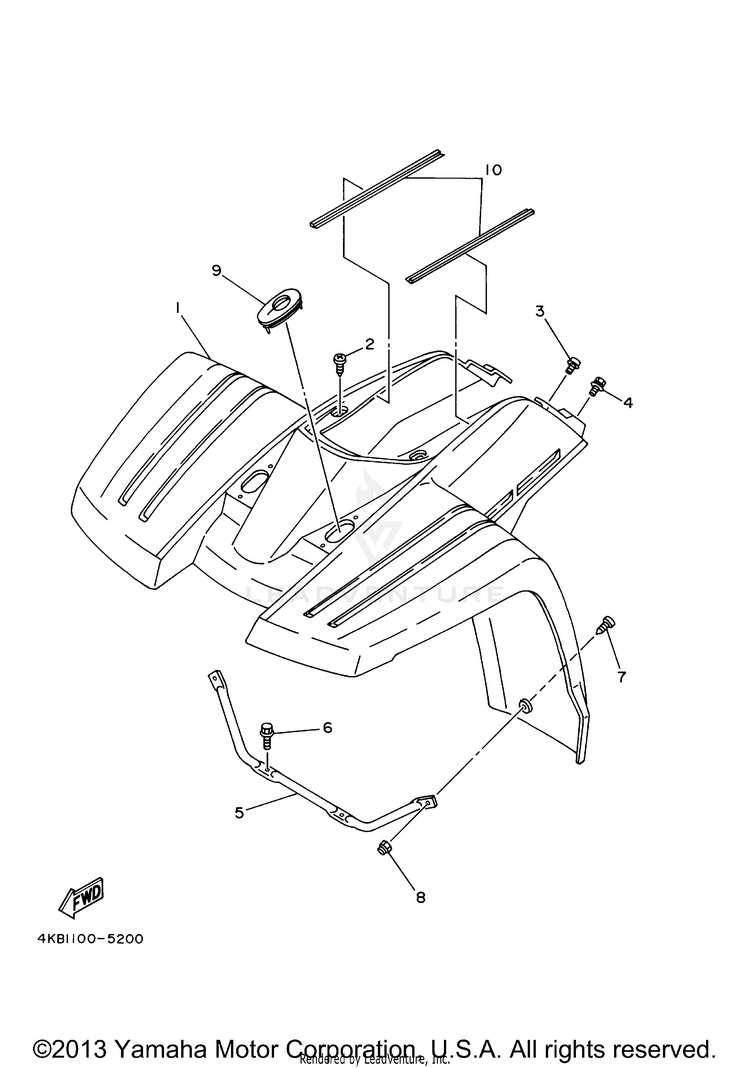

FRONT FENDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-4KB-W2151-52-00FRONT FENDER COMP. | Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 )$370.99$289.37Usually ships in 7-10 business days
14KB-W2151-42-00FRONT FENDER COMP. | Use for Color PASTEL DEEP GREEN ( PDG / 00K0 )$362.99$283.13Usually ships in 7-10 business days
290149-06306-00SCREW$3.65$3.1410+ In-Stock
390159-06059-00SCREW, WITH WASHER$11.49$8.9610+ In-Stock
490119-06152-00

(replaces part #
90119-06056-00)

BOLT, WITH WASHER$3.55$3.0510+ In-Stock
54KB-21513-00-00STAY, FENDER 1$63.99$49.91Usually ships in 7-10 business days
695817-06012-00

(replaces part #
95827-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
790149-06306-00SCREW$3.65$3.1410+ In-Stock
895604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
94KB-21541-00-00DAMPER 1$13.49$11.06Not Shipping
104WV-2171L-00-00

(replaces part #
4KB-2171L-00-00)

MOLE, SIDE COVER 1$9.49$7.4010+ In-Stock
