2000 Yamaha WOLVERINE 350 4X4 Intake OEM Parts Diagram

Submodel WOLVERINE - YFM350FXMC - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

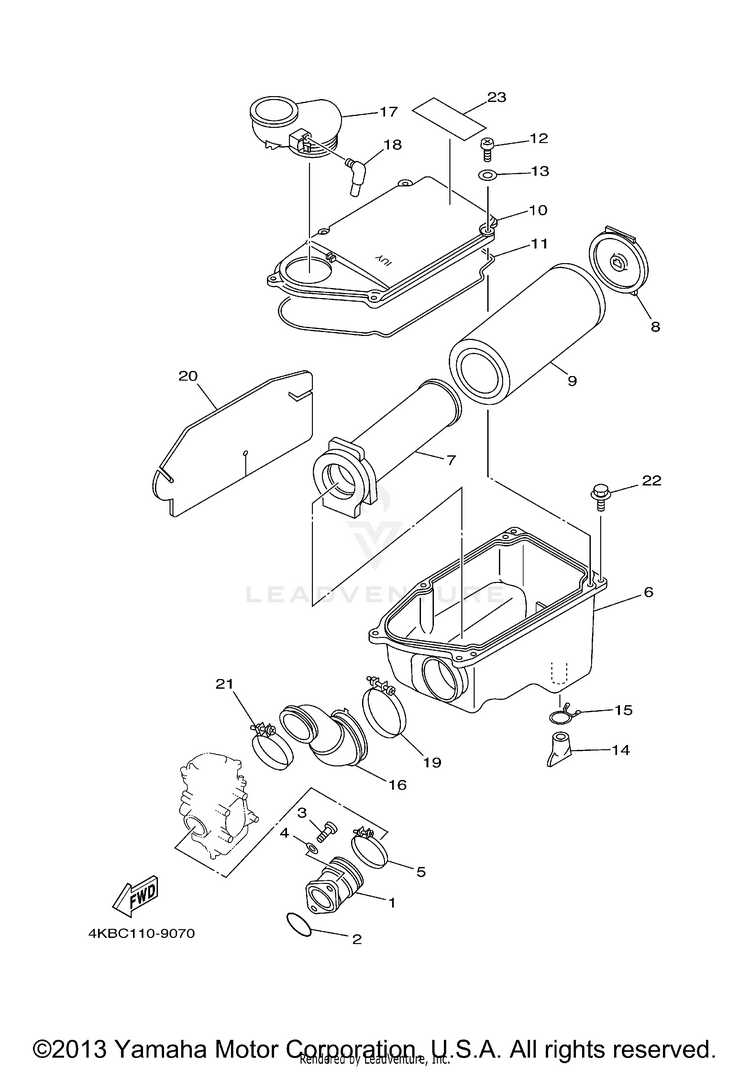

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14KB-13586-01-00JOINT, CARBURETOR 1$103.99$81.117 In-Stock
293210-44545-00O-RING$14.49$11.3010+ In-Stock
391317-08025-00BOLT$9.49$7.407 In-Stock
490201-08085-00WASHER, PLATE$10.49$8.189 In-Stock
590450-49001-00

(replaces part #
90450-49020-00)

HOSE CLAMP ASSY$18.49$14.421 In-Stock
61UY-14411-02-00

(replaces part #
1UY-14411-01-00)

CASE, AIR CLEANER 1$46.99$36.659 In-Stock
71UY-14458-01-00GUIDE$96.99$75.655 In-Stock
81UY-14468-00-00PLATE,ELEMENT FITTING$22.99$17.937 In-Stock
91UY-14451-01-00

(replaces part #
1UY-14451-00-00)

ELEMENT,AIR CLNR$15.99$12.479 In-Stock
101UY-14412-01-00CAP, CLEANER CASE 1$32.99$25.733 In-Stock
111VJ-14462-00-00

(replaces part #
10M-14457-00-00)

SEAL$19.99$15.5910+ In-Stock
1298507-05016-00SCREW, WITH WASHER$1.80$1.5510+ In-Stock
1392907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
1459V-14457-00-00SEAL$7.49$5.8410+ In-Stock
1590467-22080-00CLIP$9.49$7.4010+ In-Stock
164KB-14453-01-00

(replaces part #
4KB-14453-00-00)

JOINT, AIR CLEANER 1$68.99$53.812 In-Stock
171UY-14437-02-00

(replaces part #
1UY-14437-01-00)

DUCT$48.99$38.212 In-Stock
1831A-14419-00-00PIPE$8.49$6.626 In-Stock
1990450-75002-00

(replaces part #
90460-75020-00)

HOSE CLAMP ASSY$12.49$9.748 In-Stock
203GD-1442F-00-00PROTECTOR$43.99$36.07Not Shipping
2190450-56001-00

(replaces part #
90460-56105-00)

HOSE CLAMP ASSY$19.49$15.2010+ In-Stock
2290119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
234KB-2179T-00-00PLATE, EPA 3 (CALIFORNIA)$11.49$9.42Usually ships in 7-10 business days
