2000 Yamaha WR400F Crankcase Cover 1 OEM Parts Diagram

Submodel WR400F - WR400FM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

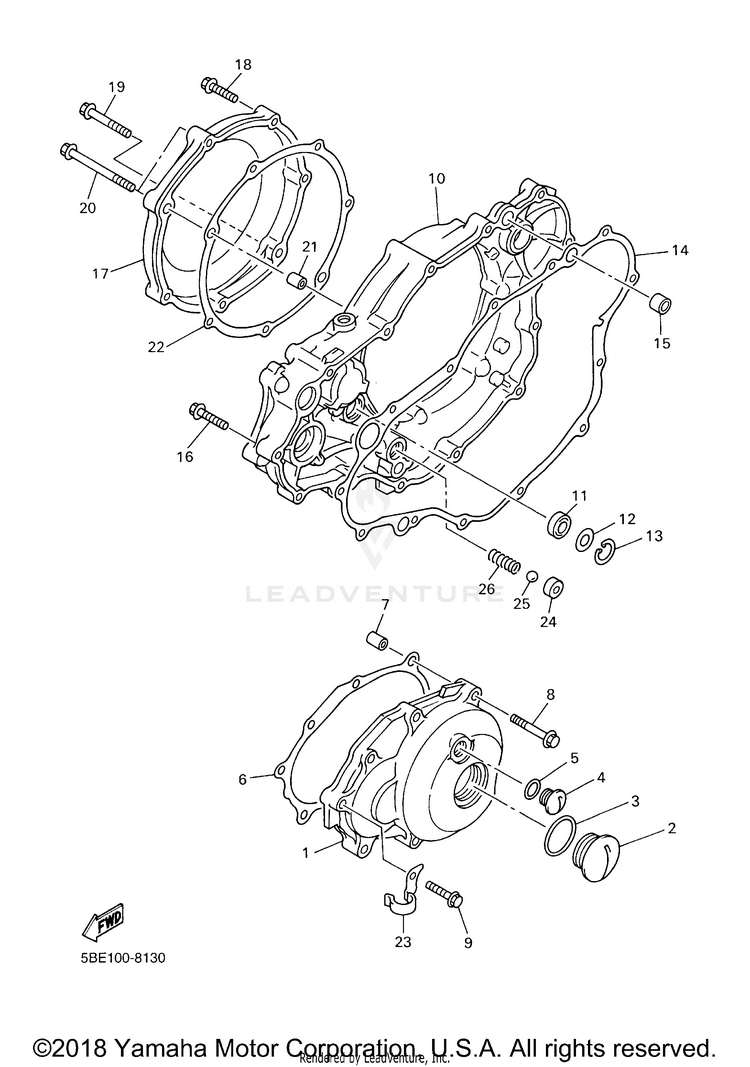

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BE-15411-00-00COVER, CRANKCASE 1 | (5GS5)$182.08$142.02Not Shipping
290340-32123-00PLUG, STRAIGHT SCREW | (5GS5)$25.99$20.277 In-Stock
393210-32172-00O-RING | (5GS5)$8.49$6.6210+ In-Stock
490340-14128-00PLUG, STRAIGHT SCREW | (5GS5)$12.99$10.1310+ In-Stock
593210-14369-00O-RING | (5GS5)$8.49$6.6210+ In-Stock
65BE-15451-00-00GASKET, CRANKCASE COVER 1 | (5GS5)$18.99$14.817 In-Stock
791808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL | (5GS5)$7.99$6.2310+ In-Stock
895027-06040-00BOLT, FLANGE | (5GS5)$3.55$3.0510+ In-Stock
995027-06030-00BOLT, FLANGE | (5GS5)$4.30$3.87Usually ships in 7-10 business days
105JG-15431-00-00COVER, CRANKCASE 3 | (5GS5)$302.93$236.29Not Shipping
1193101-14164-00OIL SEAL | (5GS5)$12.49$9.7410+ In-Stock
1290201-15701-00WASHER, PLATE (T=1.0) | (5GS5)$9.49$7.4010+ In-Stock
1399009-22500-00CIRCLIP | (5GS5)$9.49$7.4010+ In-Stock
145BE-15462-00-00GASKET, CRANKCASE COVER 3 | (5GS5)$37.99$29.6310+ In-Stock
1591812-16001-00PIN, DOWEL | (5GS5)$8.49$6.6210+ In-Stock
1695027-06030-00BOLT, FLANGE | (5GS5)$4.30$3.87Usually ships in 7-10 business days
175JG-15415-00-00COVER, GENERATOR | (5GS5)$186.99$145.85Usually ships in 7-10 business days
1895027-06030-00BOLT, FLANGE | (5GS5)$4.30$3.87Usually ships in 7-10 business days
1995027-06040-00BOLT, FLANGE | (5GS5)$3.55$3.0510+ In-Stock
2090105-065A1-00BOLT, FLANGE | (5GS5)$4.50$3.878 In-Stock
2191808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL | (5GS5)$7.99$6.2310+ In-Stock
225JG-15453-00-00GASKET | (5GS5)$22.99$17.932 In-Stock
2390462-10241-00CLAMP | (5GS5)$20.99$17.21Not Shipping
24583-13113-00-00SEAT, CHECK BALL | (5GS5)$25.99$20.2710+ In-Stock
2593503-08007-00BALL | (5GS5)$4.50$3.879 In-Stock
2690501-043E0-00SPRING, COMPRESSION | (5GS5)$4.75$4.085 In-Stock
