2000 Yamaha WR400F Starter OEM Parts Diagram

Submodel WR400F - WR400FM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

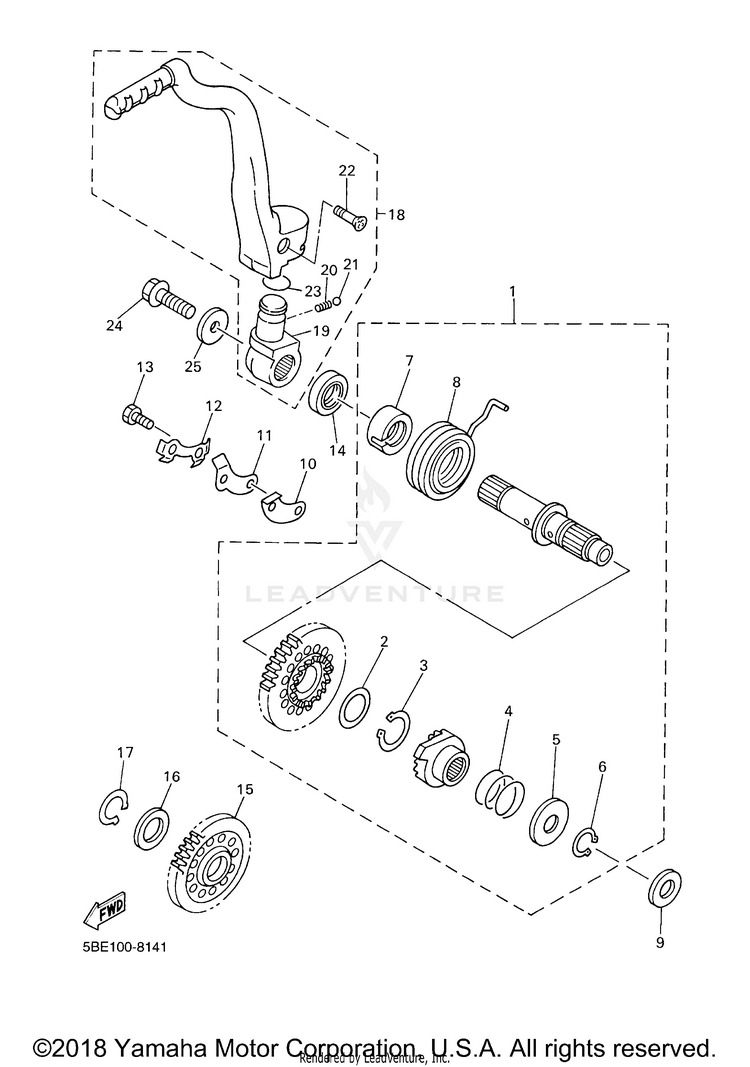

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15GR-15601-00-00KICK SHAFT ASSY | (5GS5)$257.99$201.23Not Shipping
290201-20685-00WASHER, PLATE (T=0.5) | (5GS5)$8.49$6.621 In-Stock
393410-20038-00CIRCLIP, S-TYPE | (5GS5)$4.05$3.4810+ In-Stock
490501-16107-00SPRING, COMPRESSION | (5GS5)$8.49$7.64Usually ships in 7-10 business days
590201-167P7-00WASHER, PLATE | (5GS5)$10.49$8.60Usually ships in 7-10 business days
699009-16400-00CIRCLIP | (5GS5)$6.49$5.064 In-Stock
75GR-15664-00-00GUIDE, SPRING | (5GS5)$20.99$17.21Usually ships in 7-10 business days
890508-30743-00SPRING, TORSION | (5GS5)$20.99$16.371 In-Stock
990201-162H4-00WASHER, PLATE | (5GS5)$10.49$8.188 In-Stock
105BE-15668-00-00STOPPER | (5GS5)$7.99$6.23Not Shipping
115BE-15674-00-00GUIDE, RATCHET WHEEL | (5GS5)$9.99$8.99Not Shipping
125BE-15686-01-00WASHER, LOCK | (5GS5)$3.45$3.10Not Shipping
1397017-06016-00

(replaces part #
90101-06001-00)

BOLT | (5GS5)$9.49$7.405 In-Stock
1493102-20108-00OIL SEAL | (5GS5)$12.49$9.7410+ In-Stock
155BE-15651-00-00GEAR, KICK IDLE | (5GS5)$106.99$83.45Usually ships in 7-10 business days
1690201-20276-00WASHER, PLATE (T=1.0) | (5GS5)$9.49$7.4010+ In-Stock
1799009-20400-00CIRCLIP | (5GS5)$9.49$7.4010+ In-Stock
185BE-15620-02-00KICK CRANK ASSY | (5GS5)$265.99$207.47Usually ships in 7-10 business days
193SP-15621-02-00BOSS, KICK CRANK | (5GS5)$73.99$57.71Not Shipping
2090501-13720-00SPRING, COMPRESSION | (5GS5)$9.49$7.406 In-Stock
2193501-04011-00BALL | (5GS5)$9.49$7.4010+ In-Stock
2290152-06010-00SCREW, COUNTERSUNK | (5GS5)$10.49$8.1810+ In-Stock
2393210-19216-00O-RING | (5GS5)$6.49$5.067 In-Stock
2495817-08020-00

(replaces part #
90105-08752-00)

BOLT, FLANGE | (5GS5)$10.49$8.181 In-Stock
2590201-087A9-00WASHER, PLATE | (5GS5)$5.49$4.286 In-Stock
