2000 Yamaha WR400F Taillight OEM Parts Diagram

Submodel WR400F - WR400FM - 2000

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

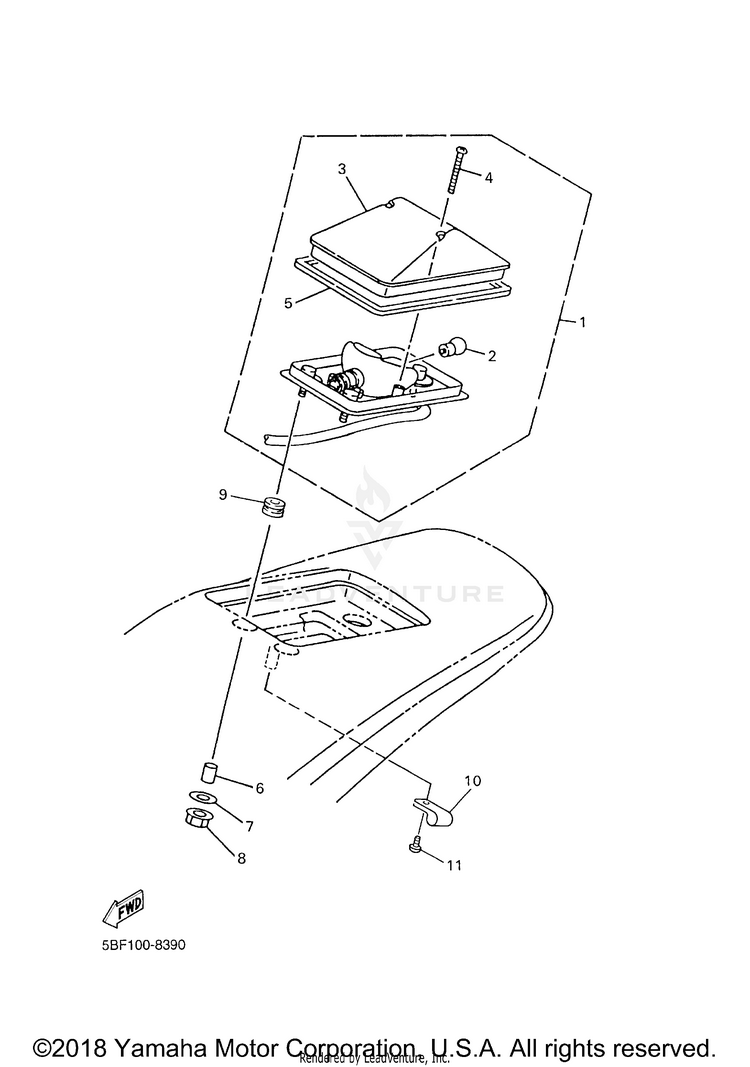

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BF-84710-00-00TAILLIGHT UNIT ASSY | (5GS5)$84.99$66.29Not Shipping
21A2-84714-50-00

(replaces part #
1A2-84714-41-00)

BULB (12V-21/5W) | (5GS5)$15.49$12.084 In-Stock
34GY-84733-00-00LENS, TAILLIGHT | (5GS5)$36.99$30.332 In-Stock
497707-40630-00

(replaces part #
97706-40530-00)

SCREW, TAPPING | (5GS5)$9.49$7.404 In-Stock
54GY-84723-00-00GASKET, TAIL LENS | (5GS5)$14.49$11.882 In-Stock
690387-06144-00

(replaces part #
90387-065L5-00)

COLLAR | (5GS5)$6.49$5.843 In-Stock
790201-06057-00WASHER, PLATE | (5GS5)$6.49$5.067 In-Stock
895707-06500-00NUT, FLANGE | (5GS5)$1.00$0.9910+ In-Stock
990480-14023-00

(replaces part #
90480-14102-00)

GROMMET | (5GS5)$8.49$6.6210+ In-Stock
1090461-11099-00CLAMP | (5GS5)$2.30$2.07Usually ships in 7-10 business days
1197780-40010-00SCREW, TAPPING | (5GS5)$0.80$0.726 In-Stock
