2001 Yamaha TTR90 Crankcase OEM Parts Diagram

Submodel TTR90 - TTR90N - 2001

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

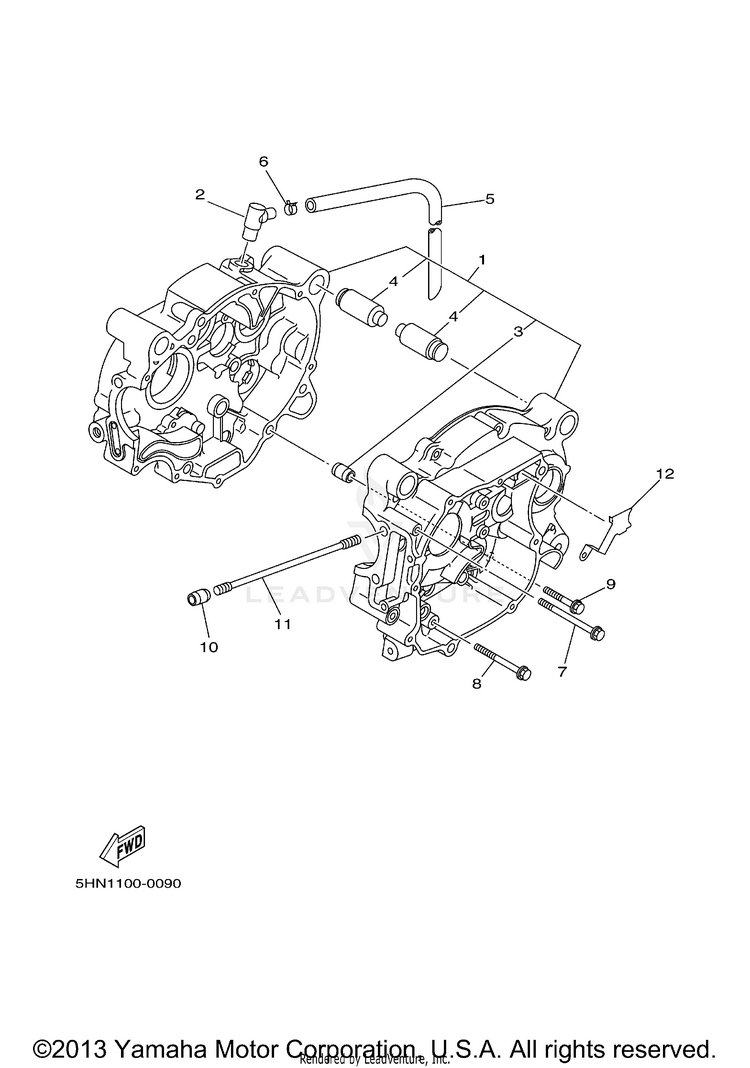

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HN-15100-00-00CRANKCASE ASSY | (5HN5)$667.99$559.14Usually ships in 7-10 business days
24GL-15371-01-00BREATHER | (5HN5)$90.99$70.97Usually ships in 7-10 business days
399530-10114-00PIN, DOWEL | (5HN5)$2.65$2.4810+ In-Stock
44S9-E5316-00-00

(replaces part #
4GL-15316-00-00)

DAMPER, ENGINE MOUNT | (5HN5)$23.99$19.67Usually ships in 7-10 business days
590445-12002-00HOSE (L300) | (5HN5)$8.99$8.09Not Shipping
690467-13133-00

(replaces part #
90467-13064-00)

CLIP | (5HN5)$9.49$7.4010+ In-Stock
790105-064A6-00BOLT, FLANGE | (5HN5)$10.49$8.182 In-Stock
895027-06060-00BOLT, FLANGE | (5HN5)$3.10$2.677 In-Stock
995027-06040-00BOLT, FLANGE | (5HN5)$3.55$3.0510+ In-Stock
1099530-10114-00PIN, DOWEL | (5HN5)$2.65$2.4810+ In-Stock
1190116-08573-00BOLT, STUD | (5HN5)$9.49$8.54Usually ships in 7-10 business days
124GL-15191-00-00PLATE | (5HN5)$7.99$7.19Usually ships in 7-10 business days
