2001 Yamaha TTR90 Starter OEM Parts Diagram

Submodel TTR90 - TTR90N - 2001

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

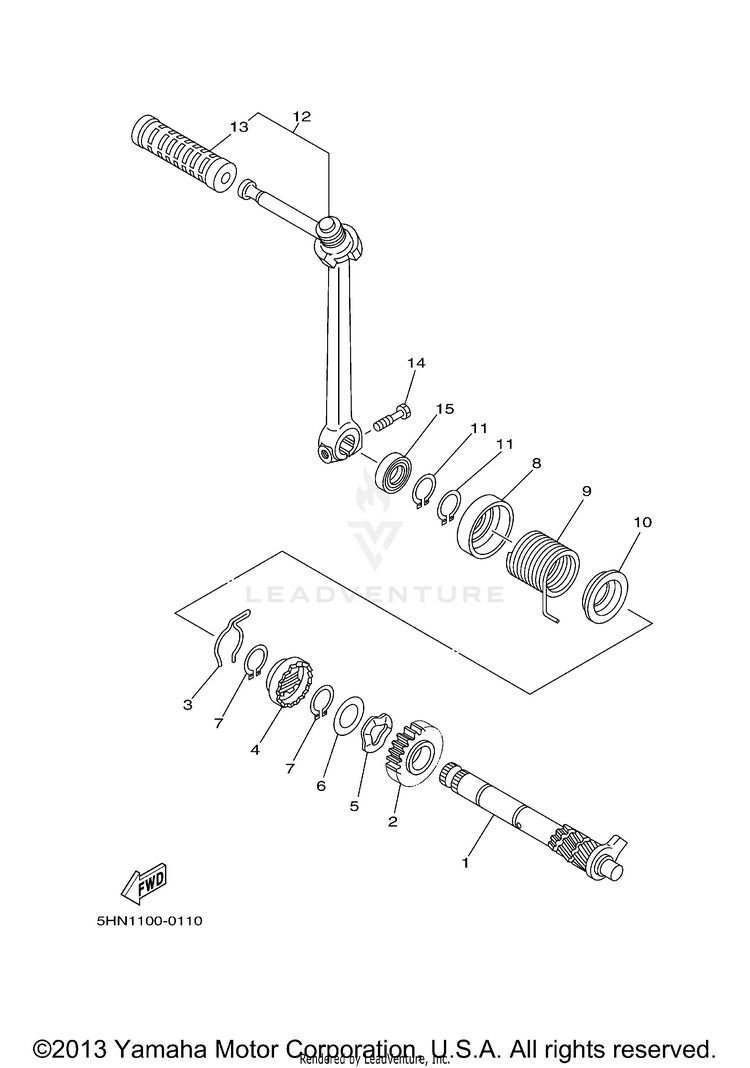

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122F-15660-00-00KICK AXLE ASSY | (5HN5)$65.99$51.47Not Shipping
229F-15641-00-00GEAR, KICK | (5HN5)$19.99$16.39Not Shipping
390468-23194-00CLIP | (5HN5)$10.49$8.186 In-Stock
4296-15671-00-00WHEEL, RATCHET | (5HN5)$53.99$42.11Usually ships in 7-10 business days
590206-19027-00WASHER, WAVE | (5HN5)$8.49$7.64Usually ships in 7-10 business days
6296-15644-00-00SHIM | (5HN5)$5.99$5.39Usually ships in 7-10 business days
799009-19400-00CIRCLIP | (5HN5)$9.49$7.407 In-Stock
822F-15676-00-00COVER, SPRING | (5HN5)$8.49$7.64Usually ships in 7-10 business days
990508-263A8-00SPRING, TORSION | (5HN5)$8.49$7.643 In-Stock
1022F-15664-00-00GUIDE, SPRING | (5HN5)$5.99$5.39Usually ships in 7-10 business days
1199009-15400-00CIRCLIP (55X) | (5HN5)$9.49$7.4010+ In-Stock
125B6-15620-00-00

(replaces part #
5HN-15620-00-00)

KICK CRANK ASSY | (5HN5)$137.99$107.632 In-Stock
13156-15618-01-00COVER, KICK LEVER | (5HN5)$8.49$6.6210+ In-Stock
1497017-06025-00BOLT | (5HN5)$4.55$3.9110+ In-Stock
1593102-15147-00OIL SEAL | (5HN5)$11.49$8.962 In-Stock
