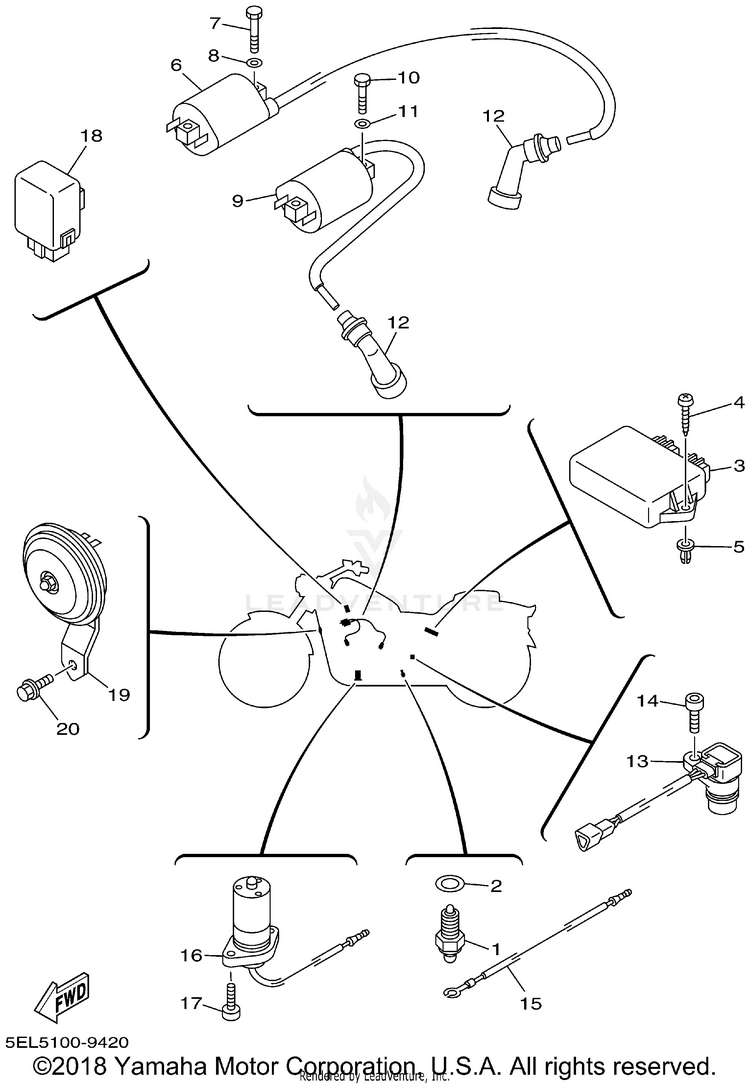

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14GY-82540-10-00

(replaces part #
4KM-82540-00-00)

NEUTRAL SWITCH ASSY$41.99$32.754 In-Stock
290430-10148-00GASKET$5.99$4.6710+ In-Stock
35EL-82305-00-00IGNITOR UNIT ASSY$1,063.99$855.56Usually ships in 7-10 business days
497707-60016-00SCREW, TAPPING$1.85$1.5910+ In-Stock
590338-08226-00PLUG$2.35$2.0210+ In-Stock
65EL-82310-00-00IGNITION COIL ASSY$178.99$139.61Usually ships in 7-10 business days
797027-05020-00

(replaces part #
97007-05020-00)

BOLT$3.55$3.0510+ In-Stock
892907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
95EL-82320-00-00IGNITION COIL ASSY$186.99$145.85Usually ships in 7-10 business days
1097027-05020-00

(replaces part #
97007-05020-00)

BOLT$3.55$3.0510+ In-Stock
1192907-05600-00WASHER, PLATE$1.00$0.8610+ In-Stock
125EL-82370-00-00PLUG CAP ASSY$68.99$53.81Usually ships in 7-10 business days
135EL-83755-02-00

(replaces part #
5EL-83755-00-00)

SENSOR, SPEED$138.99$108.41Usually ships in 7-10 business days
1491317-06012-00BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
154FL-82541-00-00

(replaces part #
5EL-82509-00-00)

WIRE, SUB LEAD$8.49$7.64Usually ships in 7-10 business days
165EL-85720-02-00

(replaces part #
5EL-85720-01-00)

OIL LEVEL GAUGE ASSY$151.99$118.55Usually ships in 7-10 business days
1791317-06016-00BOLT (4MY)-$1.4210+ In-Stock
185EL-83350-01-00

(replaces part #
5EL-83350-00-00)

FLASHER RELAY ASSY$79.99$70.49Usually ships in 7-10 business days
1955V-83371-00-00HORN$48.99$40.17Usually ships in 7-10 business days
2090105-082A5-00BOLT, WASHER BASED$3.80$3.42Usually ships in 7-10 business days
