FRONT WHEEL

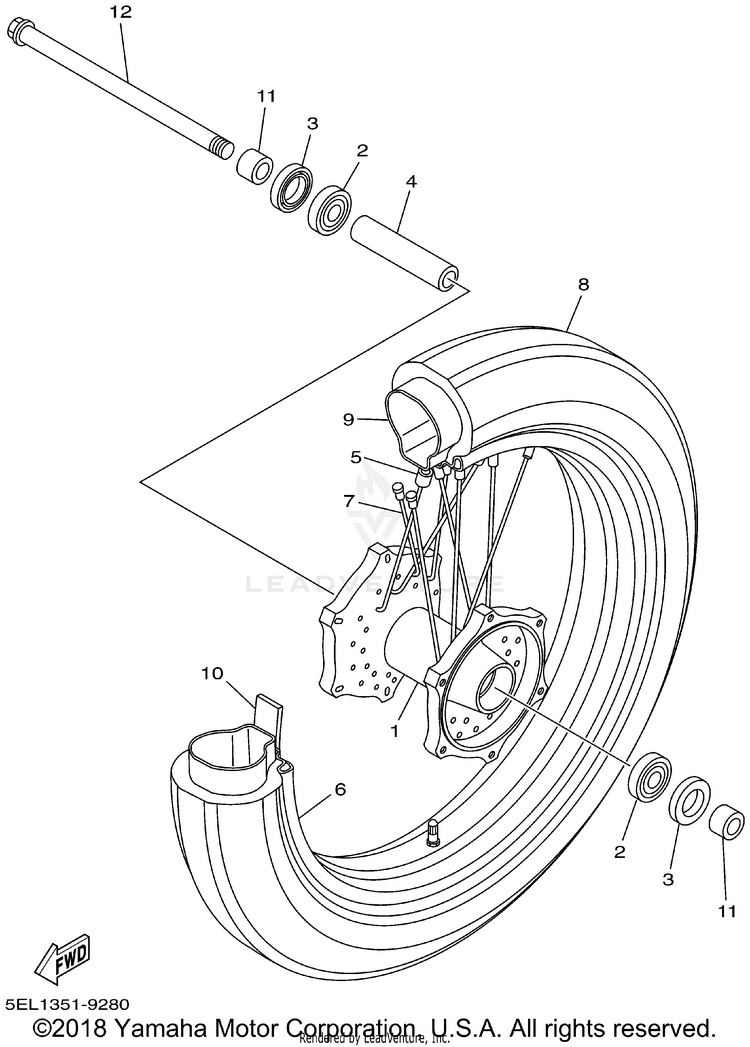

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-25111-00-00HUB, FRONT$265.99$221.02Usually ships in 7-10 business days
293306-30317-00BEARING$43.99$34.3110+ In-Stock
393102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
490387-173M5-00COLLAR$33.99$27.87Usually ships in 7-10 business days
53HT-25398-00-00

(replaces part #
5V4-25398-00-00)

BALANCER, WHEEL (15G) | UN$8.49$7.64Usually ships in 7-10 business days
694421-18614-00RIM (2.15-18)$315.99$262.82Usually ships in 7-10 business days
75EL-25104-02-00

(replaces part #
5EL-25104-01-00)

SPOKE SET, FRONT$195.99$152.87Usually ships in 7-10 business days
894111-1816F-00TIRE (110/90-18 M/C 61S L309) | UR BRIDGESTONE$156.99$129.72Usually ships in 7-10 business days
894111-1816G-00TIRE (110/90-18 M/C 61S K555F) | UR DUNLOP$238.99$186.41Usually ships in 7-10 business days
994211-18176-00TUBE (100/100-18 M/C TR4) | UR DUNLOP$44.99$36.89Usually ships in 7-10 business days
1094340-18086-00BAND, RIM (2.50-18) | UR BRIDGESTONE$19.49$15.208 In-Stock
1190387-173R6-00COLLAR$33.99$27.87Usually ships in 7-10 business days
125KS-25181-00-00AXLE, WHEEL$79.99$62.39Usually ships in 7-10 business days
