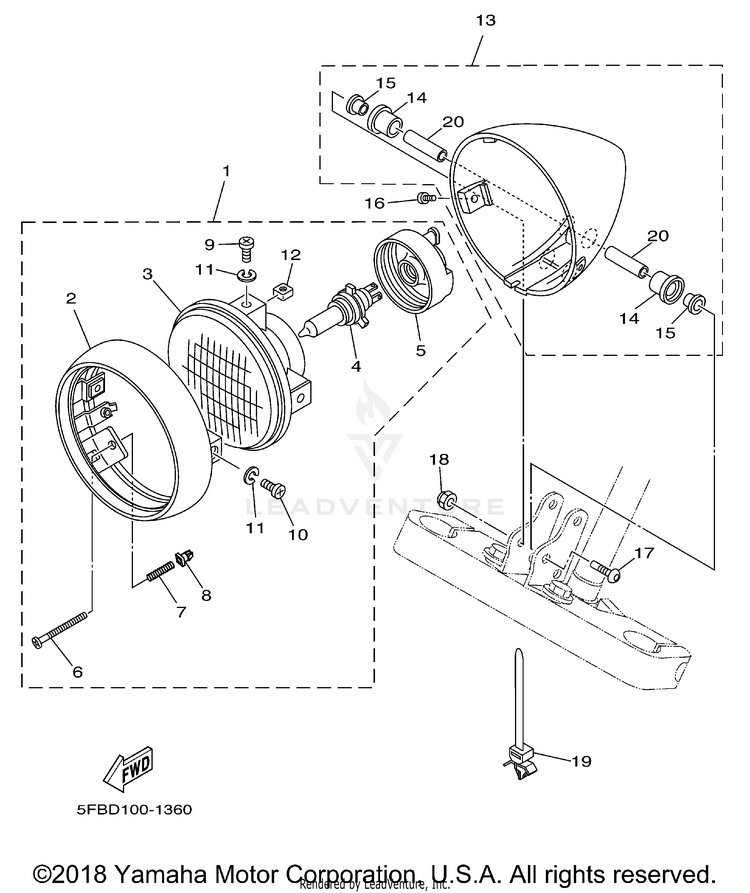

2001 Yamaha V-Star Custom XVS1100 Headlight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5KP-84310-01-00 (replaces part # 5KP-84310-00-00)	HEADLIGHT UNIT ASSY	$323.99	$269.47	Usually ships in 7-10 business days
2	5JX-84315-01-00 (replaces part # 5JX-84315-00-00)	RIM, HEADLIGHT	$166.99	$130.25	Usually ships in 7-10 business days
3	5KP-84321-00-00 (replaces part # 5KP-84320-00-00)	LENS ASSY	$128.99	$100.61	Usually ships in 7-10 business days
4	8V0-84314-10-00 (replaces part # 5V2-84314-00-XX)	BULB, HEADLIGHT (12V-60/55W) \| (H4)HALOGEN	$75.99	$60.93	Usually ships in 7-10 business days
5	4JG-84397-00-00	COVER, SOCKET	$15.49	$12.70	Usually ships in 7-10 business days
6	90157-04001-00 (replaces part # 341-84331-60-00)	SCREW, ADJUSTING	$9.49	$7.40	4 In-Stock
7	341-84332-60-00 (replaces part # 5G2-84332-60-00)	SPRING, SCREW	$10.99	$8.57	6 In-Stock
8	47J-84334-00-00	NUT, ADJUSTING	$6.99	$6.29	Usually ships in 7-10 business days
9	4KG-84365-00-00	SCREW	$3.15	$2.84	Usually ships in 7-10 business days
10	50W-84333-00-00	SCREW	$8.49	$7.64	Usually ships in 7-10 business days
11	92995-06100-00 (replaces part # 92902-06100-00)	WASHER, SPRING	$3.55	$3.05	10+ In-Stock
12	4KG-84334-00-00	NUT, ADJUSTING	$7.49	$6.74	Usually ships in 7-10 business days
13	5JX-84330-00-00	BODY ASSY	$265.99	$207.47	Usually ships in 7-10 business days
14	42X-84345-00-00	DAMPER, HEADLIGHT	$5.99	$5.39	Usually ships in 7-10 business days
15	1FK-84338-00-00	COLLAR, BODY FITTING	$3.65	$3.28	Usually ships in 7-10 business days
16	90157-05011-00	SCREW, PAN HEAD	$2.30	$2.07	Usually ships in 7-10 business days
17	92014-06045-00	BOLT, BUTTON HEAD	$3.60	$3.24	Usually ships in 7-10 business days
18	90176-06047-00	NUT, CROWN	$10.49	$8.60	Usually ships in 7-10 business days
19	90464-10112-00 (replaces part # 90464-12089-00)	CLAMP	$9.49	$7.40	4 In-Stock
20	5JX-84388-00-00	COLLAR 1	$5.99	$5.39	Usually ships in 7-10 business days
