2002 Yamaha BEAR TRACKER Frame OEM Parts Diagram

Submodel BEAR TRACKER 2WD_REALTREE - YFM250XP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRAME

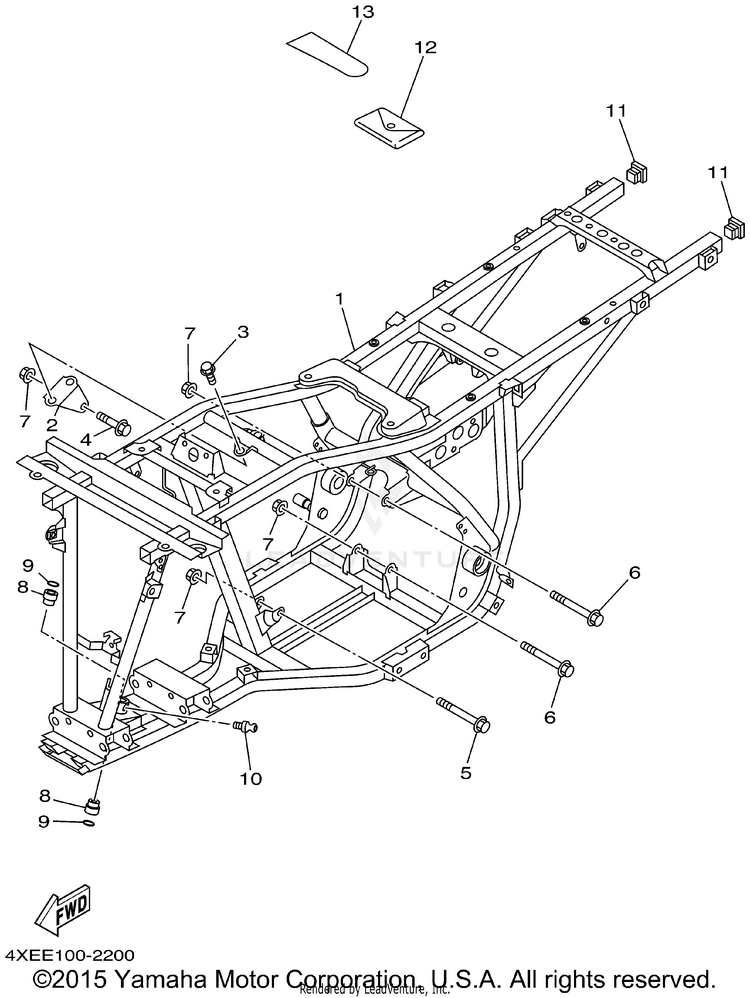

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XE-F1110-17-00

(replaces part #
4XE-F1110-11-00)

FRAME | (USA)$887.99$735.21Usually ships in 7-10 business days
24XE-F1315-01-00

(replaces part #
4XE-F1315-00-00)

STAY, ENGINE 2 | (USA)$23.99$19.67Usually ships in 7-10 business days
395817-08012-00

(replaces part #
9581P-08012-00)

BOLT, FLANGE | (USA)$5.49$4.2810+ In-Stock
490105-088A7-00

(replaces part #
90105-08805-00)

BOLT, FLANGE | (USA)$4.65$4.18Usually ships in 7-10 business days
590105-088A8-00

(replaces part #
90105-08888-00)

BOLT, FLANGE | (USA)$2.73$2.46Usually ships in 7-10 business days
690105-088A9-00

(replaces part #
90105-08806-00)

BOLT, FLANGE | (USA)$18.49$16.40Usually ships in 7-10 business days
790185-08017-00

(replaces part #
90179-08893-00)

NUT, SELF-LOCKING | (USA)$8.49$7.64Usually ships in 7-10 business days
890381-15040-00BUSH, SOLID | (USA)$32.99$25.7310+ In-Stock
993210-15566-00

(replaces part #
93210-15414-00)

O-RING | (USA)$8.49$6.6210+ In-Stock
1093700-06M03-00

(replaces part #
93700-06004-00)

NIPPLE, GREASE | (USA)$8.49$7.6010+ In-Stock
115FU-F111A-00-00CAP, MAIN PIPE | (USA)$6.99$6.29Usually ships in 7-10 business days
1259V-28100-00-00

(replaces part #
2XK-28100-00-00)

TOOL KIT (24W-28100-00) | (USA)$42.99$35.25Usually ships in 7-10 business days
131NV-2811A-01-00GAUGE, AIR | (USA)$62.99$49.133 In-Stock
