2002 Yamaha BEAR TRACKER Oil Pump OEM Parts Diagram

Submodel BEAR TRACKER 2WD_REALTREE - YFM250XP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

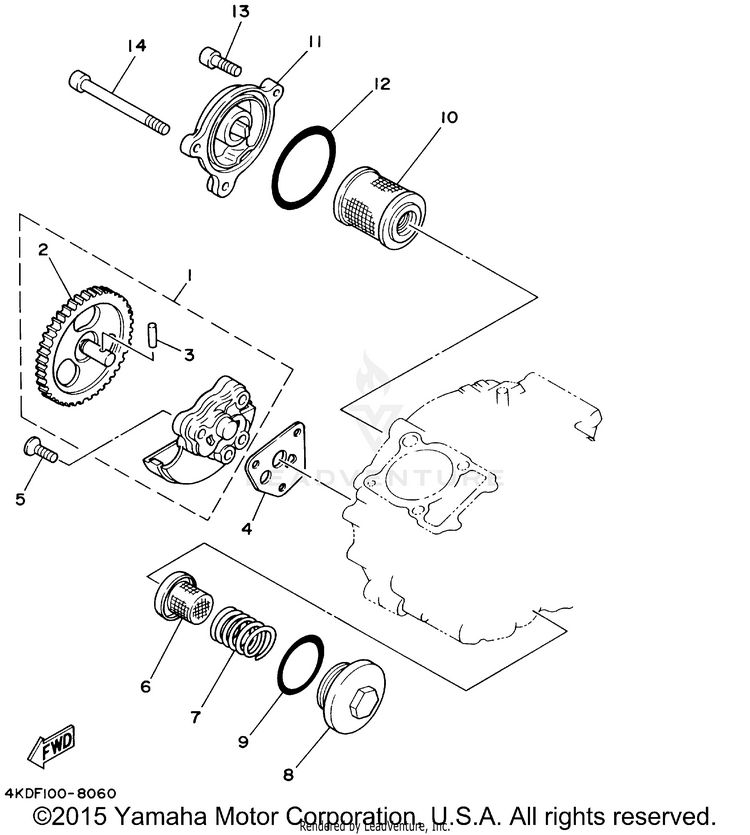

OIL PUMP

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HT-13300-00-00OIL PUMP ASSY | (USA)$263.99$205.91Usually ships in 7-10 business days
221V-13326-00-00GEAR, PUMP DRIVEN 2 (41T) | (USA)$52.99$41.33Usually ships in 7-10 business days
393603-12030-00PIN, PLUNGER | (USA)$2.80$2.4110+ In-Stock
43GD-13329-00-00

(replaces part #
4BE-13329-01-00)

GASKET, PUMP COVER | (USA)$8.49$6.62
598707-06030-00SCREW, FLAT HEAD | (USA)$7.99$6.237 In-Stock
651Y-13411-00-00STRAINER, OIL | (USA)$41.99$32.7510+ In-Stock
790501-18576-00SPRING, COMPRESSION | (USA)$9.49$7.4010+ In-Stock
85H0-15351-00-00PLUG, DRAIN | (USA)$34.99$27.2910+ In-Stock
993210-347A1-00O-RING | (USA)$8.49$6.6210+ In-Stock
105H0-13440-09-00

(replaces part #
5H0-13440-00-00)

ELEMENT ASSY, OIL CLEANER | (USA)$11.49$9.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
115XG-E3447-00-00COVER, OIL ELEMENT | (USA)$12.49$10.24Usually ships in 7-10 business days
1293210-54175-00O-RING | (USA)$13.99$10.9110+ In-Stock
1391317-06020-00BOLT, HEX. SOCKET HEAD | (USA)$2.75$2.3610+ In-Stock
1491317-06115-00BOLT | (USA)$17.49$13.644 In-Stock
