2002 Yamaha BEAR TRACKER Starter OEM Parts Diagram

Submodel BEAR TRACKER 2WD_REALTREE - YFM250XP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

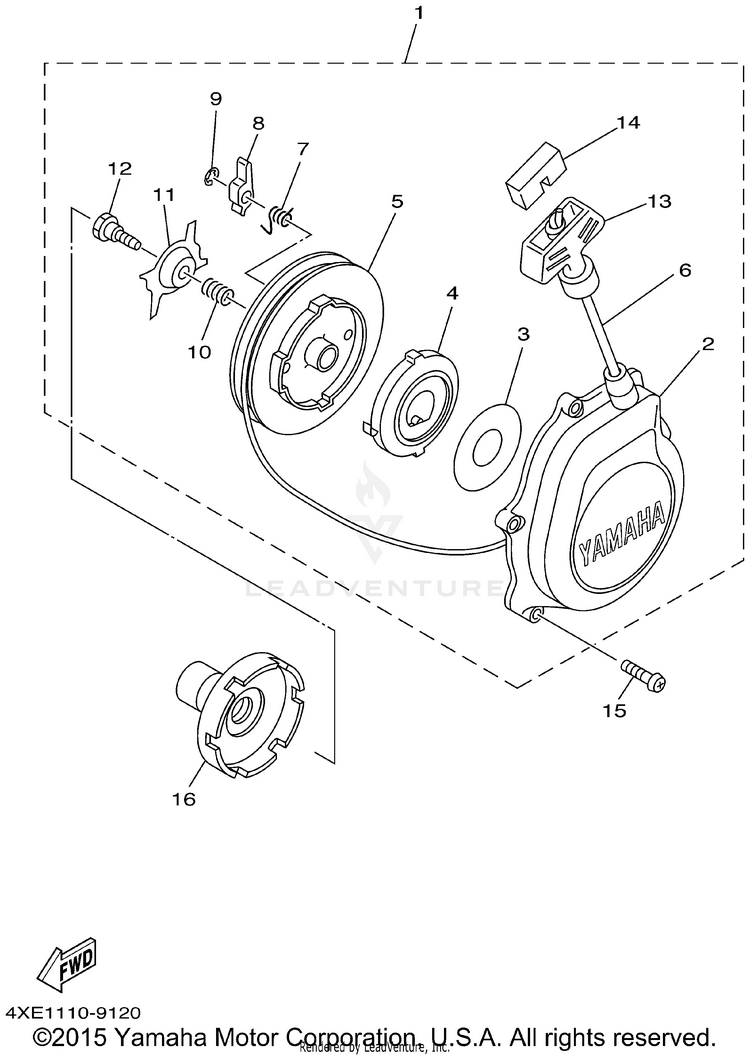

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14XE-E5710-00-00STARTER ASSY | (USA)$177.99$138.83Not Shipping
24XE-E5711-00-00CASE, STARTER | (USA)$70.99$55.37Not Shipping
34XE-E5789-00-00DAMPER | (USA)$2.50$2.15Not Shipping
44XE-E5713-00-00SPRING, STARTER | (USA)$24.99$19.49Not Shipping
54XE-E5714-00-00DRUM, SHEAVE | (USA)$29.99$24.59Not Shipping
64XE-E5751-00-00WIRE, STARTER | (USA)$12.99$10.13Not Shipping
74XE-E5767-00-00SPRING | (USA)$2.25$1.94Not Shipping
84XE-E5741-00-00PAWL, DRIVE | (USA)$6.99$5.45Not Shipping
94XE-E5744-00-00CIRCLIP | (USA)$10.49$8.18Not Shipping
104XE-E5715-00-00SPRING, FRICTION | (USA)$3.40$2.92Not Shipping
114XE-E5716-00-00PLATE, DRIVE | (USA)$5.99$5.39Usually ships in 7-10 business days
124XE-E5793-00-00SCREW | (USA)$5.99$5.39Usually ships in 7-10 business days
134XE-E5755-00-00HANDLE, STARTER | (USA)$10.49$8.18Not Shipping
144XE-E5779-00-00COVER | (USA)$9.49$7.40Not Shipping
1598517-06020-00

(replaces part #
98507-06020-00)

SCREW,PAN HEAD | (USA)$2.35$2.0210+ In-Stock
164XE-15723-00-00PULLEY, STARTER | (USA)$53.99$42.11Usually ships in 7-10 business days
