CRANKCASE COVER 1

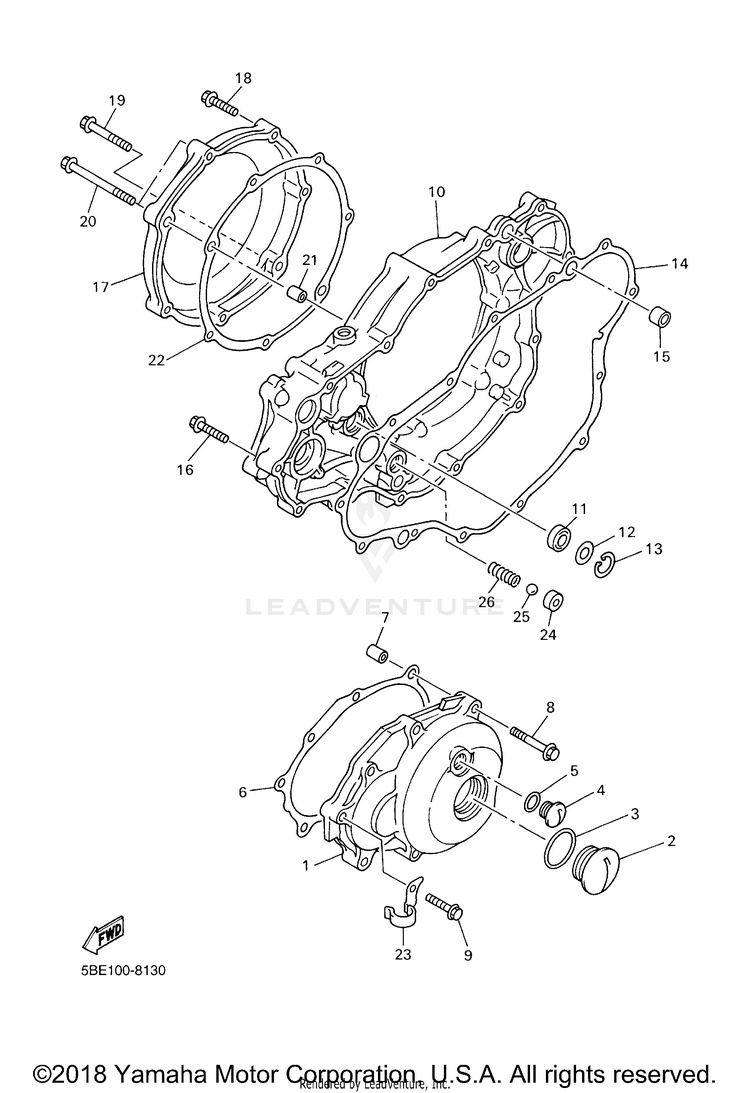

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15BE-15411-00-00COVER, CRANKCASE 1$182.08$142.02Not Shipping
290340-32123-00PLUG, STRAIGHT SCREW$25.99$20.277 In-Stock
393210-32172-00O-RING$8.49$6.6210+ In-Stock
490340-14128-00PLUG, STRAIGHT SCREW$12.99$10.1310+ In-Stock
593210-14369-00O-RING$8.49$6.6210+ In-Stock
65BE-15451-00-00GASKET, CRANKCASE COVER 1$18.99$14.817 In-Stock
791808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
895027-06040-00BOLT, FLANGE$3.55$3.0510+ In-Stock
995027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
105JG-15431-00-00COVER, CRANKCASE 3$302.93$236.29Not Shipping
1193101-14164-00OIL SEAL$12.49$9.7410+ In-Stock
1290201-15701-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
1399009-22500-00CIRCLIP$9.49$7.4010+ In-Stock
145BE-15462-00-00GASKET, CRANKCASE COVER 3$37.99$29.6310+ In-Stock
1591812-16001-00PIN, DOWEL$8.49$6.6210+ In-Stock
1695027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
175JG-15415-00-00COVER, GENERATOR$186.99$145.85Usually ships in 7-10 business days
1895027-06030-00BOLT, FLANGE$4.30$3.87Usually ships in 7-10 business days
1995027-06040-00BOLT, FLANGE$3.55$3.0510+ In-Stock
2090105-065A1-00BOLT, FLANGE$4.50$3.878 In-Stock
2191808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
225JG-15453-00-00GASKET$22.99$17.932 In-Stock
2390462-10241-00CLAMP$20.99$17.21Not Shipping
24583-13113-00-00SEAT, CHECK BALL$25.99$20.2710+ In-Stock
2593503-08007-00BALL$4.50$3.879 In-Stock
2690501-043E0-00SPRING, COMPRESSION$4.75$4.085 In-Stock
