2002 Yamaha WR426F Fender OEM Parts Diagram

Submodel WR426F - WR426FP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

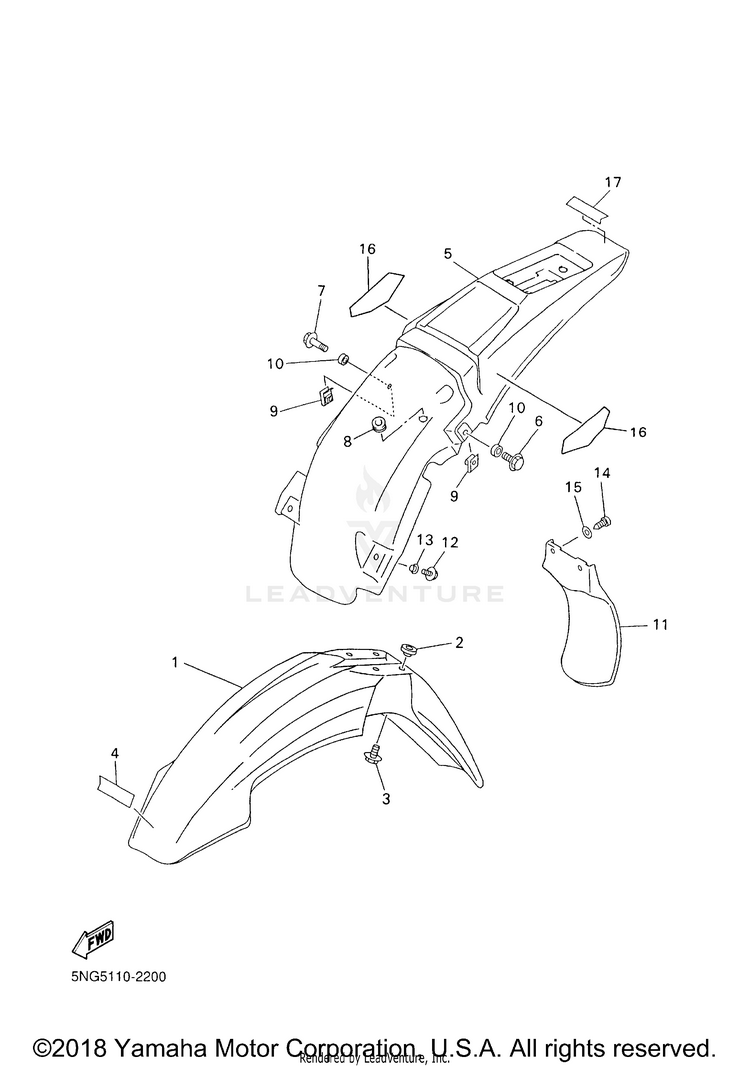

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HD-21511-00-00FENDER, FRONT$45.99$43.873 In-Stock
23JD-21748-00-00COLLAR$6.49$5.0610+ In-Stock
390119-06096-00BOLT, WITH WASHER$4.30$3.7010+ In-Stock
44ES-2153E-02-00

(replaces part #
4ES-2153E-01-00)

EMBLEM YAMAHA$15.49$12.0810+ In-Stock
55BF-21611-00-00FENDER, REAR$55.99$44.86Not Shipping
690105-06154-00BOLT, FLANGE$6.49$5.064 In-Stock
790119-06038-00BOLT, WITH WASHER$9.49$7.402 In-Stock
890480-14329-00

(replaces part #
90480-14323-00)

GROMMET$9.49$7.4010+ In-Stock
990183-06023-00NUT, SPRING$10.49$8.1810+ In-Stock
1090387-0701A-00COLLAR$10.49$8.1810+ In-Stock
115BE-21642-00-00GUARD, FLAP$49.99$38.9910+ In-Stock
1295817-06016-00

(replaces part #
90105-06690-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
1390387-06009-00COLLAR$11.49$8.9610+ In-Stock
1497707-60016-00SCREW, TAPPING$1.85$1.5910+ In-Stock
1590201-06557-00WASHER, PLATE$3.55$3.0510+ In-Stock
165NG-2163G-59-00

(replaces part #
5NG-2163G-50-00)

EMBLEM 1$13.99$11.47Not Shipping
174ES-2153E-02-00

(replaces part #
4ES-2153E-01-00)

EMBLEM YAMAHA$15.49$12.0810+ In-Stock
