2002 Yamaha WR426F Handle Switch Lever OEM Parts Diagram

Submodel WR426F - WR426FP - 2002

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

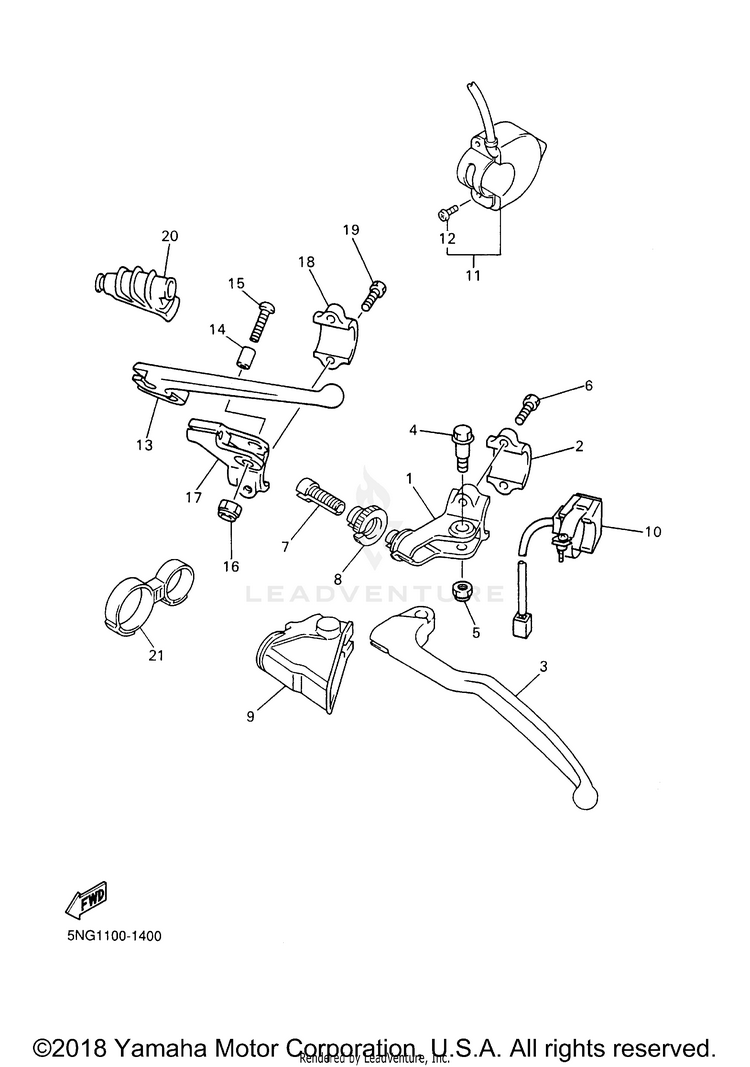

HANDLE SWITCH LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15HD-82911-00-00HOLDER, LEVER 1$28.99$22.613 In-Stock
238V-82913-00-00HOLDER, LEVER LOWER 1$25.99$20.279 In-Stock
35MV-83912-01-00

(replaces part #
5MV-83912-00-00)

LEVER 1$37.99$29.636 In-Stock
490109-06027-00BOLT$12.49$9.744 In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
697017-05016-00

(replaces part #
97007-05016-00)

BOLT$3.55$3.0510+ In-Stock
75HD-26337-00-00BOLT, ADJUSTING$12.99$10.1310+ In-Stock
85HD-83951-01-00

(replaces part #
5HD-83951-00-00)

BOLT, CABLE ADJUST$48.99$38.216 In-Stock
95HD-26372-00-00COVER, HANDLE LEVER 1$18.99$14.8110+ In-Stock
105SF-83976-00-00SWITCH, HANDLE 1$56.99$44.45Not Shipping
115NG-83976-50-00SWITCH, HANDLE 1$58.99$46.01Not Shipping
1298507-04014-00SCREW, PAN HEAD$2.00$1.7210+ In-Stock
13583-83981-00-00LEVER, DECOMPRESSION$28.99$22.613 In-Stock
145BE-83913-00-00COLLAR, LEVER 1$5.49$4.282 In-Stock
1598907-05020-00SCREW, BIND$9.49$7.409 In-Stock
1695617-05100-00

(replaces part #
95607-05100-00)

NUT, U$10.49$8.1810+ In-Stock
175BE-82912-00-00HOLDER, LEVER UPPER 1$51.99$40.55
1838V-82913-00-00HOLDER, LEVER LOWER 1$25.99$20.279 In-Stock
1997017-05016-00

(replaces part #
97007-05016-00)

BOLT$3.55$3.0510+ In-Stock
20583-26352-00-00COVER, DECOMPRESSION CABLE$23.99$18.713 In-Stock
2190464-29223-00CLAMP$4.50$4.05Usually ships in 7-10 business days
