2003 Yamaha PW80 YZinger Crankcase OEM Parts Diagram

Submodel PW80 - PW80R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

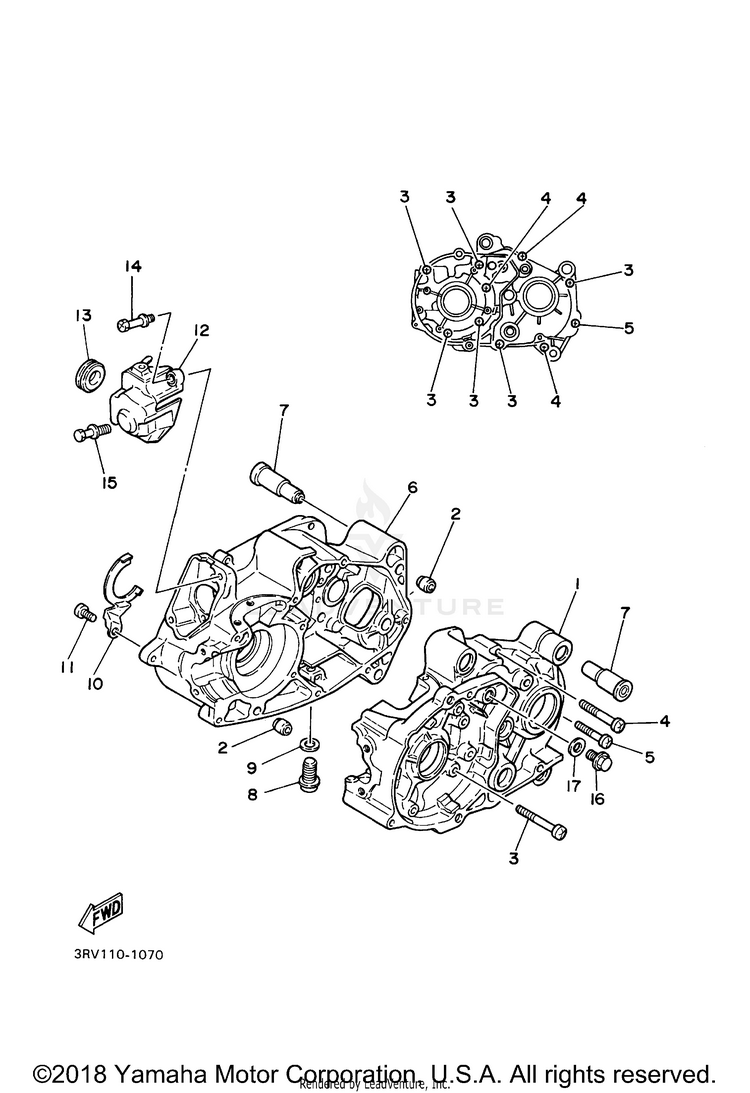

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11W7-15111-09-00

(replaces part #
1W7-15111-03-00)

CRANKCASE 1 (1W7-15111-03-00)$312.99$244.13Not Shipping
299530-12016-00PIN, DOWEL$4.89$4.2110+ In-Stock
398507-06050-00SCREW, PAN HEAD$3.55$3.0510+ In-Stock
498507-06045-00SCREW, PAN HEAD$3.40$2.9210+ In-Stock
598507-06035-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
61W7-15121-03-00CRANKCASE 2$192.99$152.67Usually ships in 7-10 business days
75T9-15316-02-00

(replaces part #
5T9-15316-01-00)

DAMPER 1$9.49$7.408 In-Stock
890340-12005-00PLUG, STRAIGHT SCREW$9.49$7.405 In-Stock
990430-12207-00

(replaces part #
90430-12227-00)

GASKET$8.49$6.6210+ In-Stock
10300-15128-00-00HOLDER$18.99$15.57Usually ships in 7-10 business days
1198507-08010-00SCREW, PAN HEAD$9.49$7.406 In-Stock
12517-15416-01-00COVER, OIL PUMP$32.99$27.05Usually ships in 7-10 business days
1390480-21436-00

(replaces part #
90480-21038-00)

GROMMET$11.49$9.42Usually ships in 7-10 business days
1490149-06157-00SCREW$3.80$3.42Usually ships in 7-10 business days
1590101-06394-00BOLT$8.49$7.64Usually ships in 7-10 business days
1690105-10147-00BOLT, FLANGE$11.49$9.42Usually ships in 7-10 business days
1790430-10171-00

(replaces part #
90430-10215-00)

BOLT, UNION$3.45$2.9710+ In-Stock
