2003 Yamaha PW80 YZinger Starter OEM Parts Diagram

Submodel PW80 - PW80R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

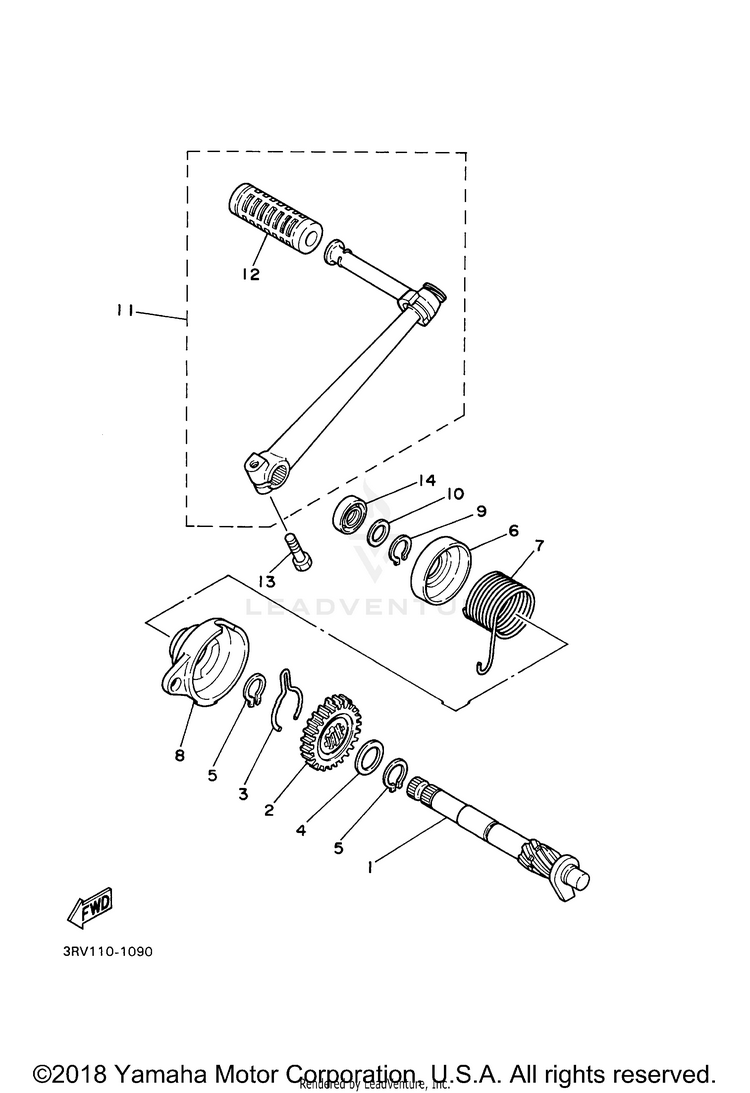

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13E5-15660-00-00KICK AXLE ASSY$101.99$79.55Not Shipping
23E5-15641-00-00GEAR, KICK (21T)$60.99$47.57Not Shipping
390468-23194-00CLIP$10.49$8.186 In-Stock
490201-20266-00WASHER, PLATE (T=1.0)$10.49$8.186 In-Stock
599009-20400-00CIRCLIP$9.49$7.4010+ In-Stock
63E5-15676-00-00COVER, SPRING$6.99$6.29Usually ships in 7-10 business days
790508-26136-00SPRING, TORSION$16.49$12.86
84BC-15664-00-00

(replaces part #
3E5-15664-00-00)

GUIDE, SPRING$8.49$7.64Not Shipping
999009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
1090201-15701-00WASHER, PLATE (T=1.0)$9.49$7.4010+ In-Stock
114BC-15620-00-00

(replaces part #
5T9-15620-00-00)

KICK CRANK ASSY$52.99$41.33Not Shipping
12156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
1397017-06025-00BOLT$4.55$3.9110+ In-Stock
1493109-15001-00OIL SEAL, SDO-TYPE$9.49$7.408 In-Stock
