2003 Yamaha PW80 YZinger Exhaust OEM Parts Diagram

Submodel PW80 - PW80R - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

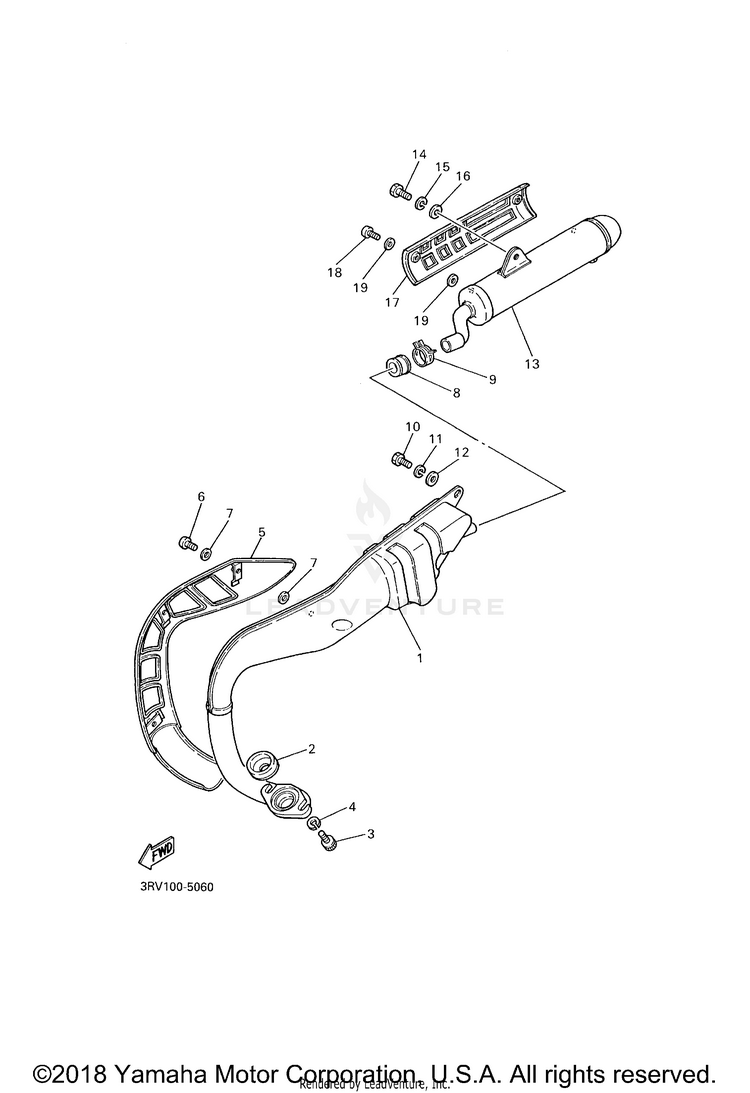

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
121W-14610-02-00EXHAUST PIPE ASSY 1$249.99$198.37Usually ships in 7-10 business days
23RV-14623-00-00GASKET, EXHAUST PIPE$24.99$19.496 In-Stock
397017-08020-00

(replaces part #
97007-08020-00)

BOLT$10.49$8.1810+ In-Stock
492907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
521W-14708-00-00PROTECTOR ASSY$140.99$109.97Usually ships in 7-10 business days
698507-05006-00

(replaces part #
90157-05003-00)

SCREW, PAN HEAD$3.85$3.3110+ In-Stock
73RV-14766-00-00WASHER, PROTECTOR$7.49$5.8410+ In-Stock
84X4-14714-00-00GASKET, MUFFLER$5.99$4.6710+ In-Stock
990467-22048-00CLIP$9.49$7.4010+ In-Stock
1097017-08016-00

(replaces part #
97007-08016-00)

BOLT$9.49$7.408 In-Stock
1192907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
1292907-08600-00WASHER, PLATE$3.25$2.80
1321W-14753-02-00SILENCER, EXHAUST$232.99$181.731 In-Stock
1497017-08016-00

(replaces part #
97007-08016-00)

BOLT$9.49$7.408 In-Stock
1592907-08100-00WASHER, SPRING$9.49$7.4010+ In-Stock
1692907-08600-00WASHER, PLATE$3.25$2.80
1721W-14758-00-00PROTECTER, SILENCER$55.99$43.672 In-Stock
1898507-05006-00

(replaces part #
90157-05003-00)

SCREW, PAN HEAD$3.85$3.3110+ In-Stock
193RV-14766-00-00WASHER, PROTECTOR$7.49$5.8410+ In-Stock
