2003 Yamaha V-Max Carburetor OEM Parts Diagram

Submodel V-MAX - VMX12RC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CARBURETOR

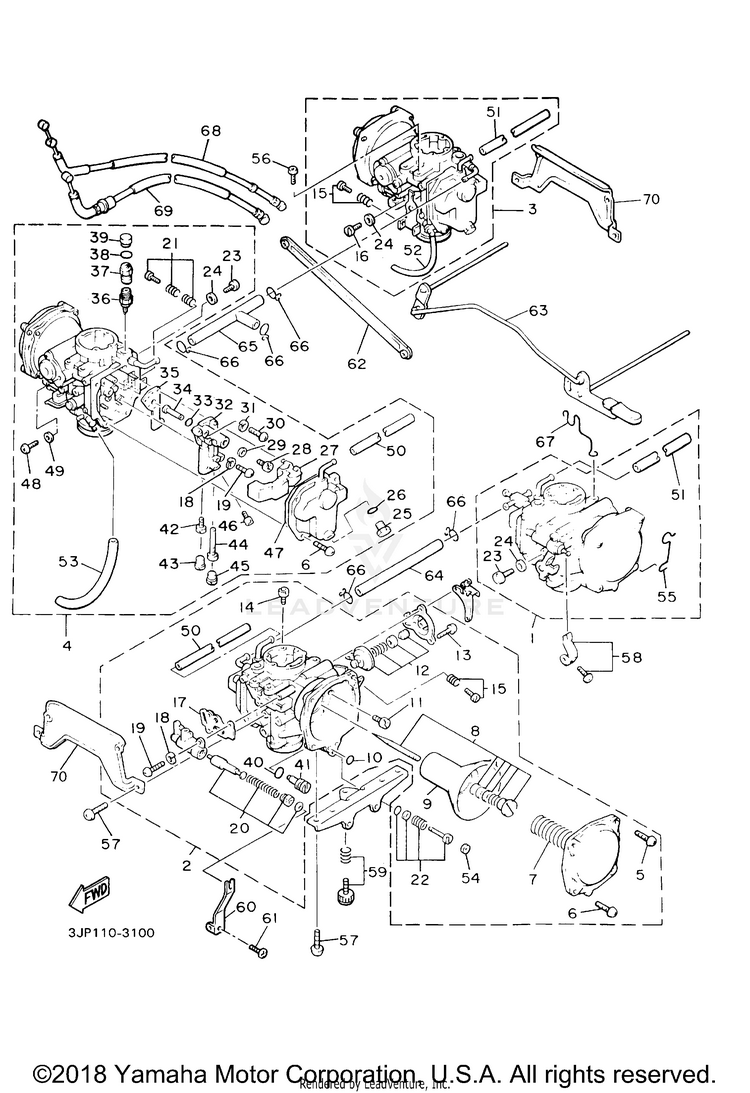

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12WF-14901-02-00CARBURETOR ASSY 1 | UR CA$840.99$672.75Usually ships in 7-10 business days
11FK-14901-02-00CARBURETOR ASSY 1 | UR 49$914.99$713.69Usually ships in 7-10 business days
22WF-14902-02-00CARBURETOR ASSY 2 | UR CA$555.99$465.19Usually ships in 7-10 business days
21FK-14902-02-00CARBURETOR ASSY 2 | UR 49$914.99$713.69Usually ships in 7-10 business days
32WF-14903-02-00CARBURETOR ASSY 3 | UR CA$940.99$733.97Usually ships in 7-10 business days
31FK-14903-02-00CARBURETOR ASSY 3 | UR 49$1,018.99$794.81Usually ships in 7-10 business days
42WF-14904-02-00CARBURETOR ASSY 4 | UR CA$940.99$733.97Usually ships in 7-10 business days
41FK-14904-02-00CARBURETOR ASSY 4 | UR 49$1,018.99$794.81Usually ships in 7-10 business days
590157-05050-00SCREW, PAN HEAD$3.85$3.46Usually ships in 7-10 business days
698580-05012-00SCREW, PAN HEAD$7.99$6.2310+ In-Stock
71FK-14933-00-00SPRING, DIAPHRAGM$39.99$32.79Usually ships in 7-10 business days
82WF-1490J-00-00NEEDLE SET | UR CA$32.99$27.05Usually ships in 7-10 business days
81FK-1490J-00-00NEEDLE SET | UR 49$37.99$31.15Usually ships in 7-10 business days
91FK-14940-09-00DIAPHRAGM ASSY$267.99$209.03Usually ships in 7-10 business days
1093210-03119-00O-RING$5.49$4.94Usually ships in 7-10 business days
113G2-14231-34-00JET, PILOT AIR (#170)$15.49$12.70Usually ships in 7-10 business days
123LD-1490H-00-00DIAPHRAGM SET 5$104.99$81.891 In-Stock
1398580-04010-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
143G2-14231-18-00JET, MAIN (# 90) | UR 49$15.49$12.086 In-Stock
143G2-14231-20-00JET, MAIN (#100) | UR CA$10.49$8.60Usually ships in 7-10 business days
1548H-1490K-00-00STOP SCREW SET$24.99$20.49Not Shipping
162F1-14991-00-00SCREW$12.49$10.24Usually ships in 7-10 business days
173JB-14536-00-00GASKET$17.99$14.75Usually ships in 7-10 business days
1892990-04100-00WASHER, SPRING-$1.0210+ In-Stock
1998517-04012-00SCREW,PANHEAD$4.20$3.6110+ In-Stock
201GR-1410A-00-00STARTER SET$91.99$71.75Usually ships in 7-10 business days
2148H-1490K-00-00STOP SCREW SET$24.99$20.49Not Shipping
2212R-14105-00-00PILOT SCREW SET$18.99$14.8110+ In-Stock
23341-14991-00-00PLUG, SCREW$5.99$5.39Not Shipping
2426H-14952-00-00WASHER$5.49$4.94Usually ships in 7-10 business days
2522U-14115-00-00PLUG, SCREW$14.49$11.88Usually ships in 7-10 business days
2622U-14561-00-00O-RING$8.49$6.8810+ In-Stock
271FK-14985-00-00FLOAT$82.99$64.73Usually ships in 7-10 business days
2822U-14565-00-00SCREW$31.99$26.23Usually ships in 7-10 business days
29137-14153-00-00WASHER, MAIN JET$8.49$6.6210+ In-Stock
3098517-04020-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
3192990-04100-00WASHER, SPRING-$1.0210+ In-Stock
3226H-1411A-00-09BLOCK JET ASSY$100.99$78.77Usually ships in 7-10 business days
3322U-14147-00-00O-RING$8.49$7.645 In-Stock
3426H-14941-90-00NOZZLE, MAIN$46.99$38.53Usually ships in 7-10 business days
353JB-14199-00-00GASKET$33.99$27.871 In-Stock
361FK-14190-15-00NEEDLE VALVE ASSY$49.99$40.99Usually ships in 7-10 business days
371J7-14994-00-00NET, FILTER$30.99$25.415 In-Stock
381FK-14147-00-00O-RING$7.49$6.748 In-Stock
3941R-14118-01-00CAP$30.99$25.41Usually ships in 7-10 business days
40214-14147-00-00O-RING$8.49$6.62
412L1-14191-00-00PLUG, DRAIN$32.99$25.733 In-Stock
424G0-14142-37-A0JET, PILOT (#37.5)$15.49$12.70Usually ships in 7-10 business days
4322V-14968-00-00CAP$8.49$6.6210+ In-Stock
4426H-1414G-00-00PIPE, MAIN BLEED$34.99$28.69Usually ships in 7-10 business days
4522U-14968-00-00CAP$5.99$4.6710+ In-Stock
463G2-1423A-81-00JET, MAIN (#152.5)$22.99$18.85Usually ships in 7-10 business days
4722V-14147-00-00O-RING$24.99$20.49Usually ships in 7-10 business days
4898517-04012-00SCREW,PANHEAD$4.20$3.6110+ In-Stock
4992990-04100-00WASHER, SPRING-$1.0210+ In-Stock
501GR-14197-01-00PIPE$23.99$19.67Usually ships in 7-10 business days
5180N-14987-00-00PIPE$21.99$18.03Usually ships in 7-10 business days
5290445-075G4-00HOSE$11.49$9.42Usually ships in 7-10 business days
5390445-075G4-00HOSE$11.49$9.42Usually ships in 7-10 business days
543F9-14118-00-00CAP$9.49$7.408 In-Stock
551JH-14139-00-00CLIP, PIPE$13.49$11.06Usually ships in 7-10 business days
569858-05008-00SCREW, PAN HEAD$0.00$0.00Not Shipping
5798580-06010-00SCREW, PAN HEAD (92503-06010-00$9.49$7.405 In-Stock
5822U-1490M-00-00STARTER LEVER SET, 2$48.99$40.17Usually ships in 7-10 business days
5926H-14103-00-00THROTTLE SCREW SET$23.99$19.67Not Shipping
601FK-14905-00-00LEVER, STARTER$28.99$23.77Usually ships in 7-10 business days
6111H-14991-09-00

(replaces part #
11H-14991-00-00)

SCREW$7.49$6.74Usually ships in 7-10 business days
6226H-14504-00-00ROD SET$63.99$49.91Usually ships in 7-10 business days
631FK-1490L-00-00STARTER LEVER SET, 1$210.99$164.57Usually ships in 7-10 business days
6431H-14987-00-00HOSE$51.99$40.55Usually ships in 7-10 business days
6526H-14987-00-00HOSE$75.99$59.27Usually ships in 7-10 business days
6690467-100A1-00

(replaces part #
90467-10008-00)

CLIP$8.49$6.6210+ In-Stock
6726H-14139-00-00CLIP, PIPE$9.49$8.54Usually ships in 7-10 business days
681FK-2631J-00-00CABLE, THROTTLE 4$49.99$40.99Usually ships in 7-10 business days
691FK-26313-00-00CABLE, THROTTLE 3$79.99$62.39Usually ships in 7-10 business days
7026H-14291-00-00BRACKET 1$55.99$43.67Usually ships in 7-10 business days
