2003 Yamaha V-Max Taillight OEM Parts Diagram

Submodel V-MAX - VMX12RC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

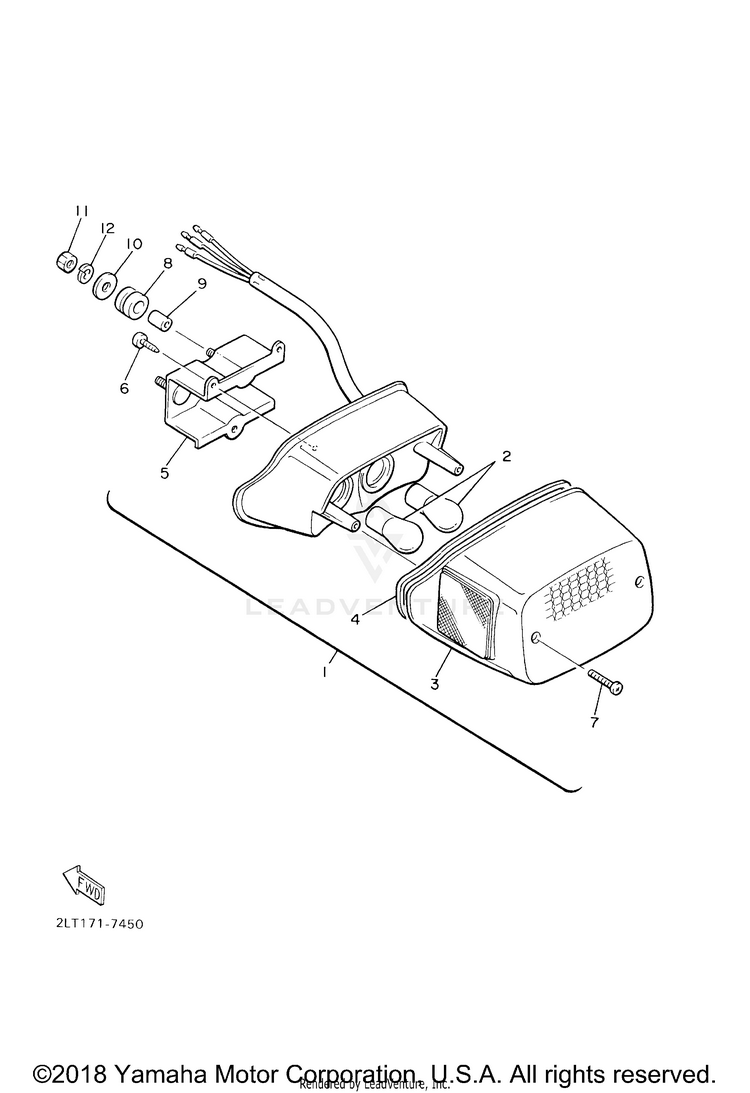

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-84700-60-00TAILLIGHT ASSY$174.99$145.52Usually ships in 7-10 business days
2256-84714-61-00BULB (12V-27/8W)$12.99$10.1310+ In-Stock
342X-84721-61-00LENS, TAILLIGHT$76.99$65.66Not Shipping
41VJ-14462-00-00SEAL$19.99$15.5910+ In-Stock
51FK-84702-00-00BRACKET, TAILLIGHT$13.49$11.06Usually ships in 7-10 business days
697707-40616-00SCREW,TAPPING(4HP)$1.85$1.598 In-Stock
797707-40625-00SCREW, TAPPING$9.49$8.54Usually ships in 7-10 business days
890480-14229-00GROMMET$9.49$7.4010+ In-Stock
990387-06026-00COLLAR$9.49$7.409 In-Stock
1090201-06020-00

(replaces part #
90201-065F3-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
1195317-06600-00NUT$3.85$3.3110+ In-Stock
1292907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
