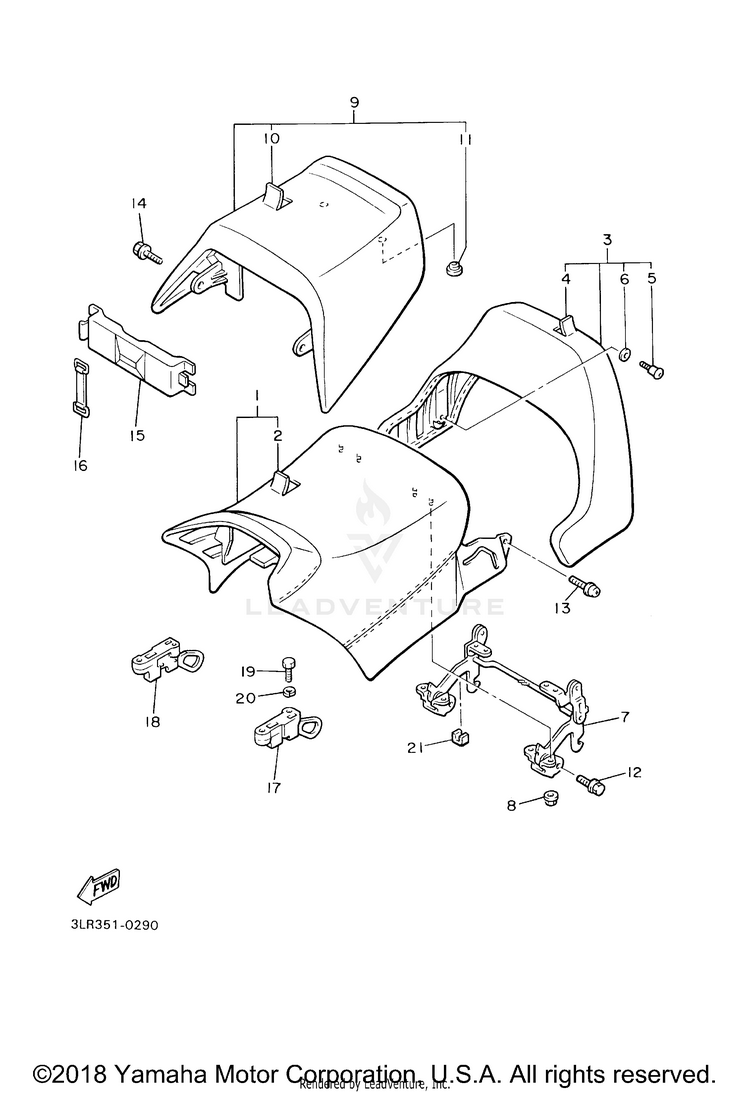

2003 Yamaha V-Max Seat OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	5GK-24771-00-00	SEAT COMP.	$395.75	$308.68	Usually ships in 7-10 business days
2	5GK-2470F-00-00	SEAT COVER COMP.	$107.09	$83.53	Not Shipping
3	5GK-24790-00-00	SEAT BACK ASSY	$171.99	$134.15	Not Shipping
4	5GK-2470F-10-00	SEAT COVER COMP.	$89.99	$70.19	Usually ships in 7-10 business days
5	1FK-2476F-00-00	PIN, GUIDE	$10.99	$9.01	Usually ships in 7-10 business days
6	1FK-24736-00-00	WASHER	$5.49	$4.94	Usually ships in 7-10 business days
7	1FK-24772-00-00	HINGE ASS'Y	$230.99	$180.17	Usually ships in 7-10 business days
8	95707-06500-00	NUT, FLANGE	$1.00	$0.99	10+ In-Stock
9	5GK-24750-00-00	TANDEM SEAT ASSY	$213.99	$169.43	Usually ships in 7-10 business days
10	5GK-2470F-20-00	SEAT COVER COMP.	$71.99	$56.15	Usually ships in 7-10 business days
11	95817-06012-00	BOLT, FLANGE	$1.95	$1.77	10+ In-Stock
12	95817-06012-00 (replaces part # 95807-06012-00)	BOLT, FLANGE	$1.95	$1.77	10+ In-Stock
13	98507-06016-00	SCREW,PAN HEAD	$3.48	$2.99	10+ In-Stock
14	97017-06016-00	BOLT	$9.49	$7.40	5 In-Stock
15	1FK-2473T-00-00	LID 1	$33.99	$27.87	Usually ships in 7-10 business days
16	5H9-21376-00-00	BAND, TOOL	$6.99	$6.29	Not Shipping
17	1FK-24760-00-00	SEAT LEVER ASSY	$43.99	$36.07	Usually ships in 7-10 business days
18	1FK-24780-00-00	SEAT LOCK ASSY	$43.99	$36.07	Usually ships in 7-10 business days
19	97017-06012-00	BOLT	$4.05	$3.48	10+ In-Stock
20	92907-06600-00	WASHER, PLATE	$1.00	$0.99	10+ In-Stock
21	3UF-24737-00-00	DAMPER, SEAT	$4.90	$4.41	Usually ships in 7-10 business days
