2003 Yamaha V-Star Classic XVS1100A Front Wheel OEM Parts Diagram

Submodel V-STAR 1100 CLASSIC - XVS1100ARC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

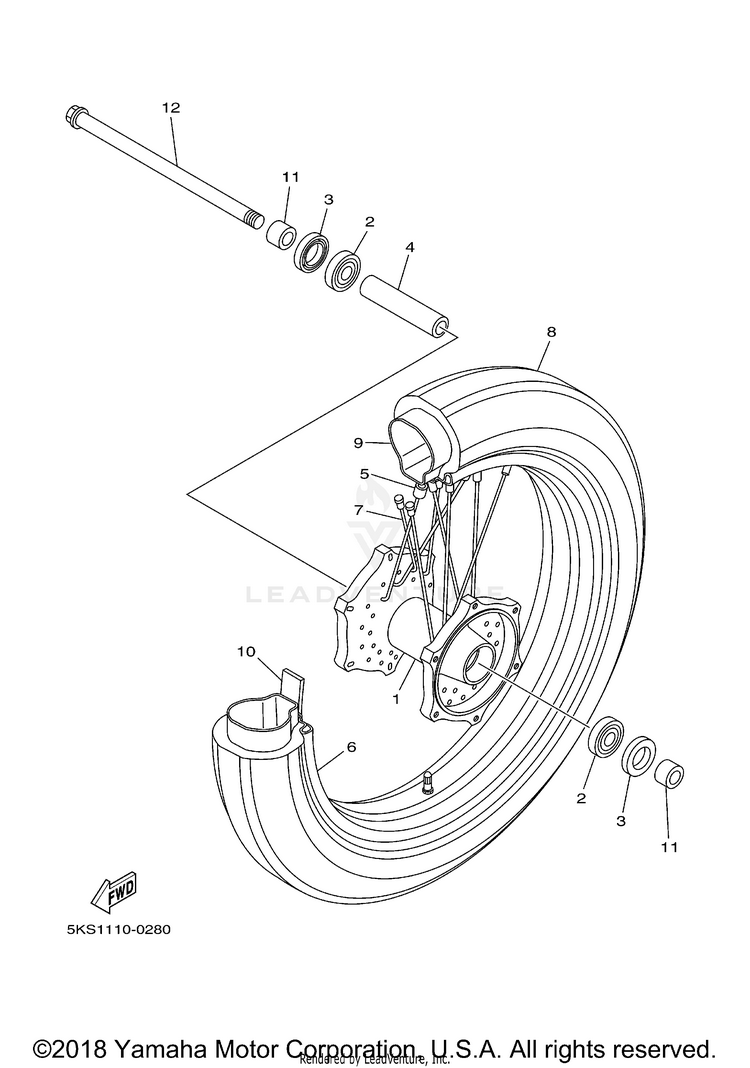

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15EL-25111-00-00HUB, FRONT$265.99$221.02Usually ships in 7-10 business days
293306-30317-00BEARING$43.99$34.3110+ In-Stock
393102-28022-00OIL SEAL$16.49$12.8610+ In-Stock
490387-173M5-00COLLAR$33.99$27.87Usually ships in 7-10 business days
53HT-25398-00-00

(replaces part #
156-25398-00-00)

BALANCER, WHEEL (15G) | UN$8.49$7.64Usually ships in 7-10 business days
694430-16565-00RIM (MT3.00-16M/C)$421.99$347.99Usually ships in 7-10 business days
75KS-25104-00-00SPOKE SET, FRONT$298.99$233.21Usually ships in 7-10 business days
894113-1613E-00TIRE (130/90-16 M/C 67S D404F) | DUNLOP$255.99$199.67Usually ships in 7-10 business days
994213-16306-00TUBE (130/90-16 M/C TR4) | DUNLOP$49.99$40.99Usually ships in 7-10 business days
1094313-16175-00BAND, RIM (25-16) | DUNLOP$8.49$7.64Usually ships in 7-10 business days
1190387-173H2-00COLLAR$16.99$13.93Usually ships in 7-10 business days
125KS-25181-00-00AXLE, WHEEL$79.99$62.39Usually ships in 7-10 business days
