VALVE

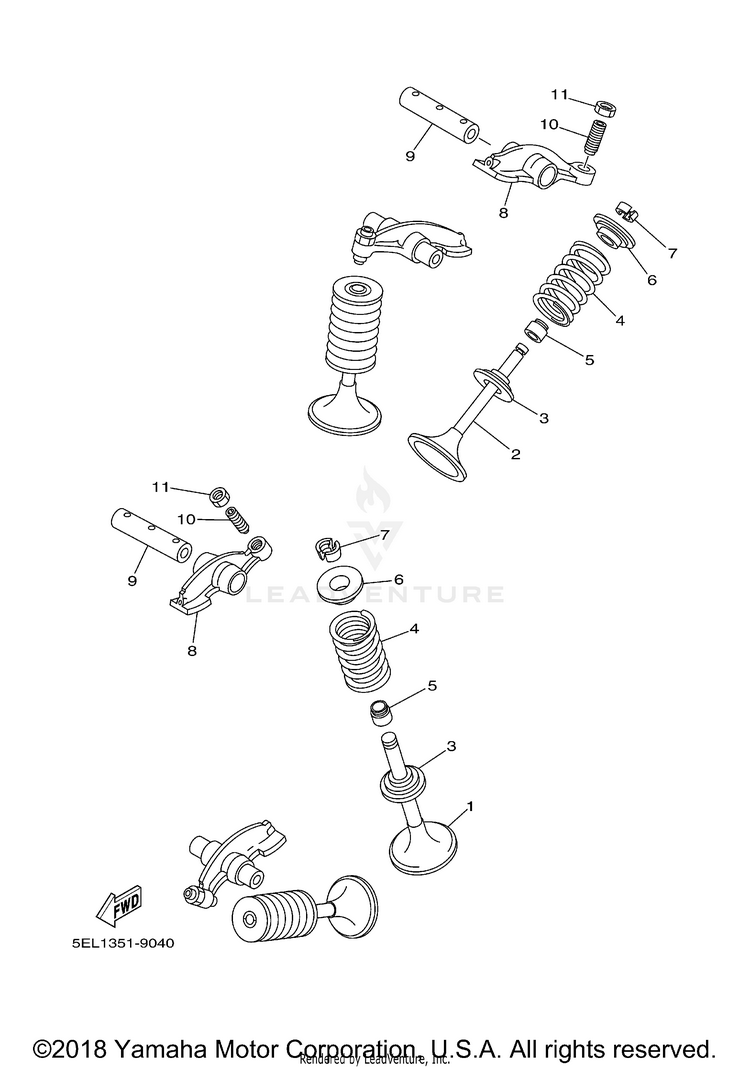

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12J2-12111-01-00VALVE, INTAKE$75.99$59.274 In-Stock
25A8-12121-00-00VALVE, EXHAUST$114.99$89.69Usually ships in 7-10 business days
34X7-12116-00-00SEAT, VALVE SPRING$15.49$12.70Usually ships in 7-10 business days
490501-44455-00SPRING, COMPRESSION$18.49$15.16Usually ships in 7-10 business days
5341-12119-02-00SEAL, VALVE STEM$19.99$15.5910+ In-Stock
64X7-12117-00-00RETAINER, VALVE SPRING$36.99$30.33Usually ships in 7-10 business days
74X7-12118-00-00COTTER, VALVE$8.49$7.64Usually ships in 7-10 business days
842X-12151-00-00ARM, VALVE ROCKER$62.99$49.13Usually ships in 7-10 business days
94X7-12156-02-00

(replaces part #
4X7-12156-01-00)

SHAFT, ROCKER 2$25.99$21.31Usually ships in 7-10 business days
104X7-12159-00-00SCREW, VALVE ADJUSTING$9.49$8.54Usually ships in 7-10 business days
1190170-08173-00NUT$9.49$8.546 In-Stock
