2003 Yamaha V-Star Classic XVS1100A Steering Handle Cable OEM Parts Diagram

Submodel V-STAR 1100 CLASSIC - XVS1100ARC - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING HANDLE CABLE

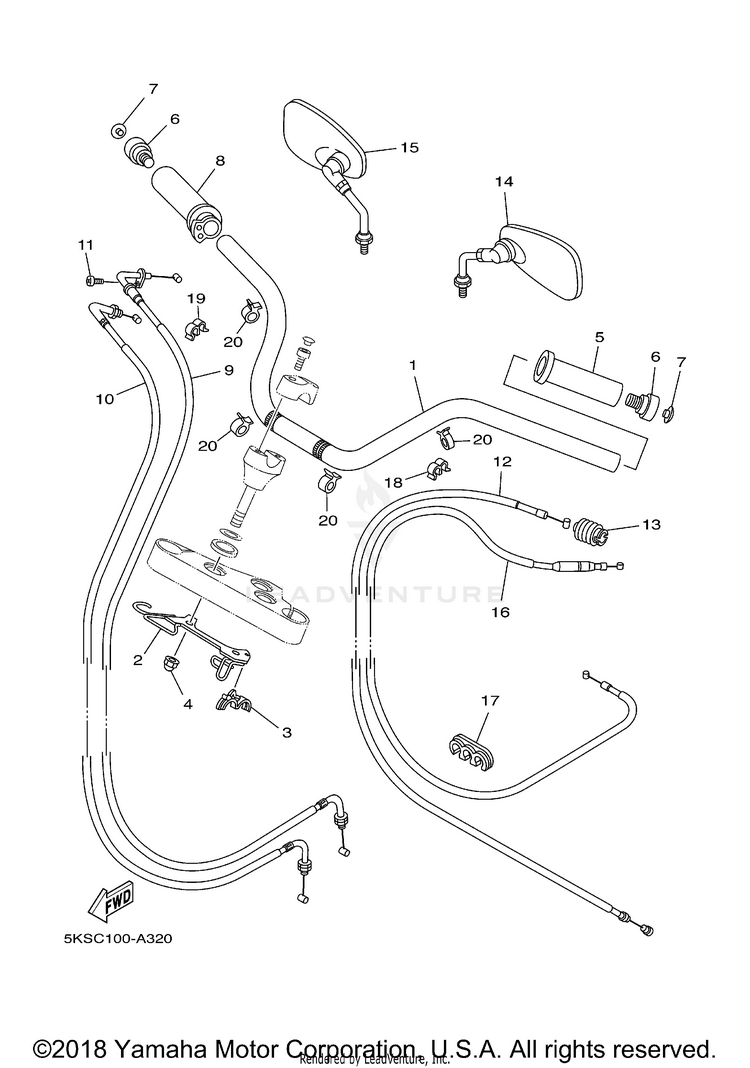

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KS-26111-01-00

(replaces part #
5KS-26111-00-00)

HANDLEBAR$198.99$155.21Usually ships in 7-10 business days
25KS-23389-00-00GUIDE, CABLE$63.99$49.91Usually ships in 7-10 business days
390464-18246-00CLAMP$2.50$2.251 In-Stock
490176-12052-00NUT, CROWN$13.49$11.06Usually ships in 7-10 business days
54NK-26241-01-00

(replaces part #
4NK-26241-00-00)

GRIP LH$41.99$34.43Usually ships in 7-10 business days
65EL-26246-00-00END, GRIP$50.99$39.77Usually ships in 7-10 business days
75EL-23469-00-00CAP, BOLT$8.49$7.64Usually ships in 7-10 business days
84XY-26240-00-00GRIP ASSY$99.99$77.99Usually ships in 7-10 business days
95KS-26311-11-00

(replaces part #
5KS-26311-01-00)

WIRE, THROTTLE 1$35.99$28.072 In-Stock
105KS-26312-11-00

(replaces part #
5KS-26312-01-00)

CABLE, THROTTLE 2$39.99$31.192 In-Stock
1198507-05008-00SCREW, PAN HEAD$3.85$3.3110+ In-Stock
125KS-26335-00-00CABLE, CLUTCH$44.99$35.091 In-Stock
131E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
144NK-26280-10-00

(replaces part #
4NK-26280-00-00)

REAR VIEW MIRROR ASSY (LEFT)$145.99$113.87Usually ships in 7-10 business days
154NK-26290-10-00

(replaces part #
4NK-26290-00-00)

REAR VIEW MIRROR ASSY (RIGHT)$150.99$117.77Usually ships in 7-10 business days
165EL-26331-00-00CABLE, STARTER 1$31.99$26.23Usually ships in 7-10 business days
1790464-07003-00CLAMP$6.49$5.84Usually ships in 7-10 business days
1890468-15139-00CLIP$8.49$7.64Usually ships in 7-10 business days
1990464-06214-00CLAMP$3.90$3.3510+ In-Stock
2090464-15192-00CLAMP$9.49$7.404 In-Stock
