2003 Yamaha YZ450F Clutch OEM Parts Diagram

Submodel YZ450F - YZ450FR - 2003

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CLUTCH

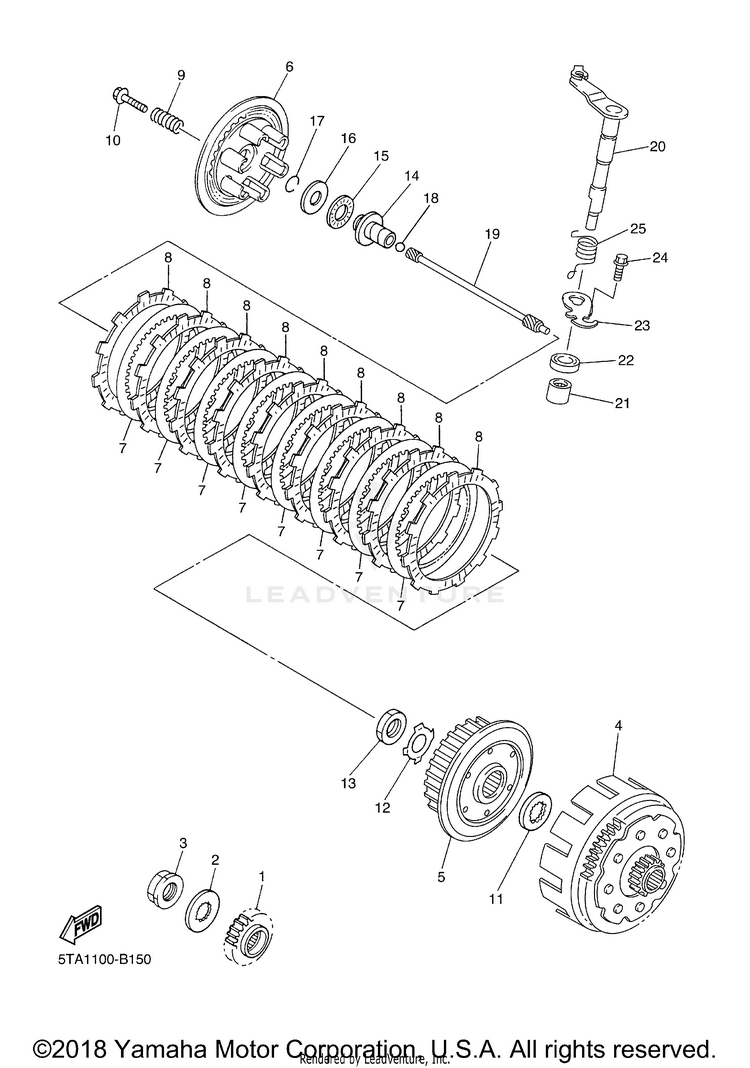

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TA-16111-00-00GEAR, PRIMARY DRIVE$82.99$64.73Usually ships in 7-10 business days
290215-21001-00WASHER, LOCK$10.49$8.1810+ In-Stock
390179-20001-00NUT$19.49$15.2010+ In-Stock
45TA-16150-11-00

(replaces part #
5TA-16150-10-00)

PRIMARY DRIVEN GEAR COMP.$466.99$386.84Usually ships in 7-10 business days
55TA-16371-02-00

(replaces part #
5TA-16371-00-00)

BOSS, CLUTCH$204.99$159.893 In-Stock
65JG-16351-00-00PLATE, PRESSURE 1$98.99$77.2110+ In-Stock
75JG-16325-10-00

(replaces part #
5JG-16325-00-00)

PLATE, CLUTCH 2$8.99$7.0110+ In-Stock
85TA-16321-00-00PLATE, FRICTION$28.99$22.6110+ In-Stock
990501-237L0-00SPRING, COMPRESSION$8.49$6.6210+ In-Stock
1090159-06092-00SCREW, WITH WASHER$10.49$8.1810+ In-Stock
115TA-16154-00-00PLATE, THRUST 1$24.99$19.491 In-Stock
1290215-20231-00WASHER, LOCK$3.65$3.5310+ In-Stock
1390170-20327-00NUT$20.99$16.3710+ In-Stock
145JG-16356-00-00ROD, PUSH 1$74.99$58.492 In-Stock
1593340-21505-00BEARING$20.99$16.3710+ In-Stock
1690201-125L6-00WASHER, PLATE$10.49$8.184 In-Stock
1793440-10085-00CIRCLIP$9.49$7.4010+ In-Stock
1893511-32027-00BALL$9.49$7.4010+ In-Stock
195TA-16357-10-00

(replaces part #
5TA-16357-00-00)

ROD, PUSH 2$41.99$32.75Not Shipping
205TA-16381-00-00PUSH LEVER COMP.$66.99$52.25Not Shipping
2193317-11287-00BEARING$25.99$20.2710+ In-Stock
2293102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
235TA-16384-01-00

(replaces part #
5TA-16384-00-00)

PLATE, SEAT$4.05$3.48Not Shipping
2495027-06012-00BOLT, FLANGE$4.20$3.6110+ In-Stock
2590508-14020-00SPRING, TORSION$4.77$4.101 In-Stock
